CHIEF TPA-111 Installation Instructions

Truss pitch-adjustable mount

Advertisement

I N S T A L L A T I O N
TRUSS PITCH-ADJUSTABLE MOUNT
(1)
PLATE, back
(1)
PLATE, assembly, pitch-adjustable
(1)
ADAPTER, VESA Flat Panel Interface
(4)
SCREW, Pan Head, M4-.7X10mm
BEFORE PROCEEDING:
instructions completely. If you are missing any of the listed components, please contact Customer Service at
1-800/582-6480.
CAUTION!
WARNING!
TPA-111
Figure 1

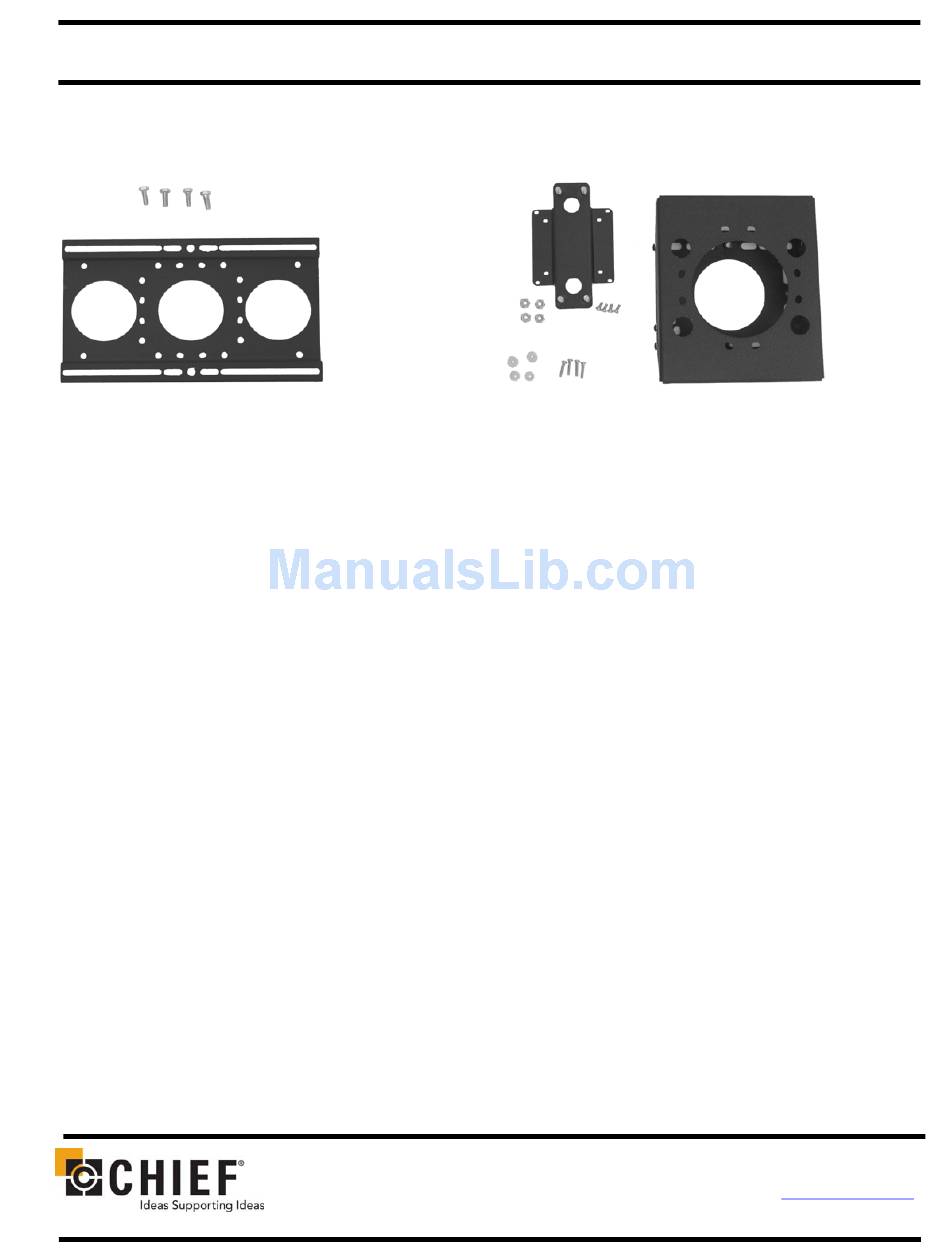

Unpack the carton, verify contents shown in Figure 1 and read installation
PLASMA DISPLAYS ARE EXTREMELY FRAGILE.
ALL COMPONENTS MUST BE SECURELY FASTENED TO A
STRUCTURAL MEMBER CAPABLE OF SUPPORTING 4 TIMES
THE COMBINED WEIGHT OF ALL COMPONENTS PLUS THE
EQUIPMENT BEING MOUNTED. IF IT CANNOT SUPPORT THIS
WEIGHT, THE STRUCTURE MUST BE REINFORCED.
THE MAXIMUM WEIGHT TO BE INSTALLED ON THE MOUNT
IS 150 POUNDS (68.04 KG).
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA
I N S T R U C T I O N S
(4)
SCREW, Pan Head, M4-.7X20mm
(4)
Nylon, Spacer, .5 X .194 ID X .0375"
(4)
SCREW, cap, hex head, 5/16-18 X ½"
(4)
NUT, Nylock, 5/16-18
8832-000019 (Rev. B)
2003 Chief Manufacturing
www.chiefmfg.com
4/05
