Installation Instructions

Assembly And Installation

The FCA623 is specifically designed to convert Chief's XPAU or
XVAU carts into 2x1 monitor mounting systems. Do not attempt
to install the FCA623 onto any other mounting device!
NOTE:
Installation procedure is identical regardless if installing
to XPAU or XVAU. XPAU is shown in these
instructions.

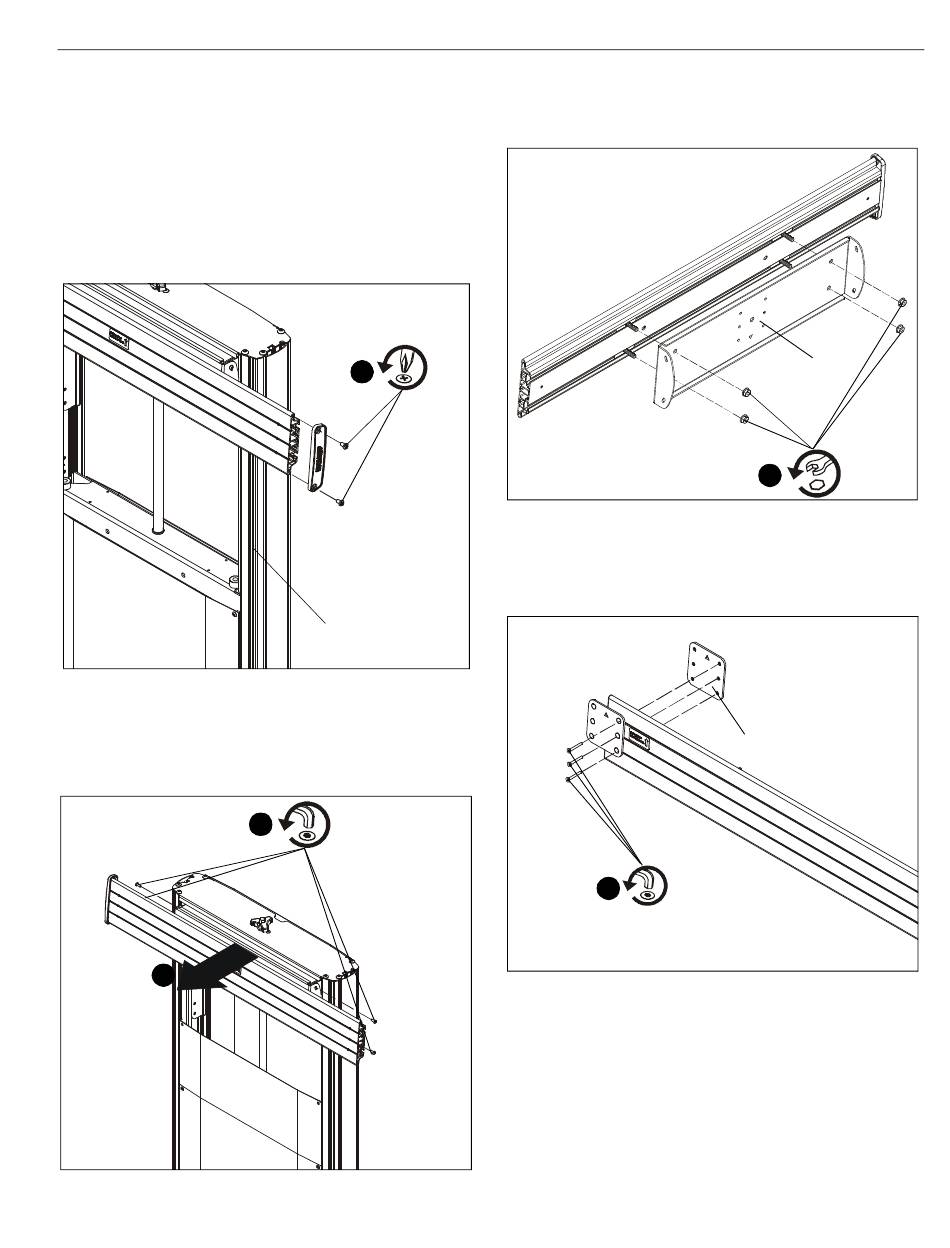

1. Remove two Phillips screws and right side cover from right
side of XPAU/XVAU interface head assembly.(See Figure
1)
Figure 1
2. Remove four screws holding tilt bracket and head assembly
to column assembly. (See Figure 2)
3. Remove tilt plate and head assembly from column
assembly. (See Figure 2)
3
Figure 2
x 2
1
XPAU
2
x 4
4. Remove four nuts holding interface head assembly to
XPAU/XVAU column assembly to remove head assembly.
(See Figure 3)
Figure 3
5. Remove three screws holding plates to FCA623 interface
(C) in order to remove back plate. (See Figure 4)
x 3
5
Figure 4
FCA623
tilt plate
4
x 4
back plate
5
