Navigating down to view detailed protocol data
The procedures below describe how to navigate down to view the detailed transaction data from the Frame
Number Chart window.
Navigating to the Detailed Data window from the Frame Number Chart window:

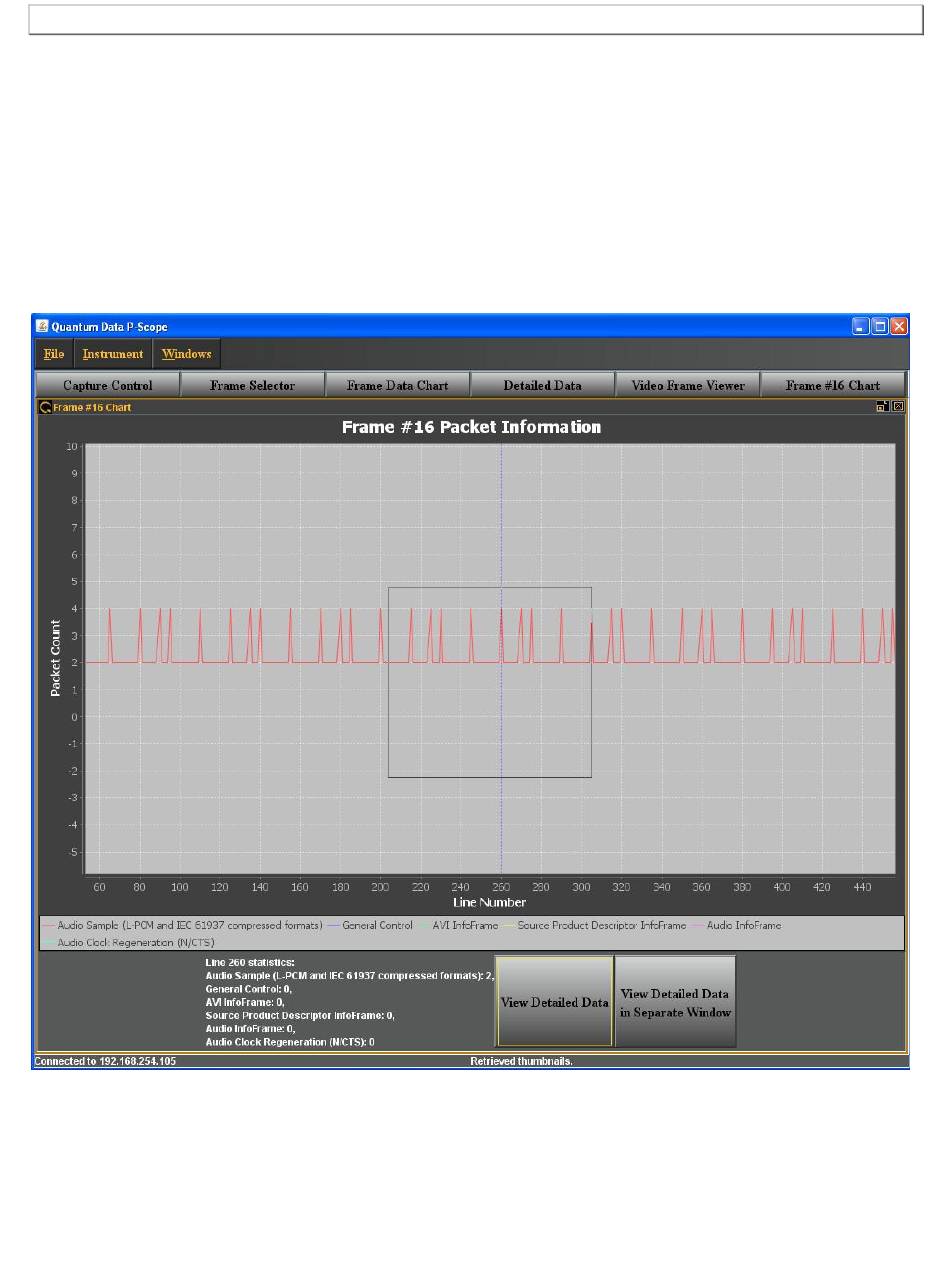

1. From the Frame Data Chart window, locate a set of lines containing the detailed data you wish to view.
Surround a set of lines to view a smaller set of lines if necessary as shown in the figure below:
