Navigating down to view line details
The procedures below describe how to navigate down to the Frame Number Chart window from the Frame Data
Chart window in order to view the various data types for a particular line.
Navigating to the Frame Number Chart window from the Frame Data Chart window:
1. From the Frame Data Chart window, locate a frame or set of frames containing the lines you wish to view.

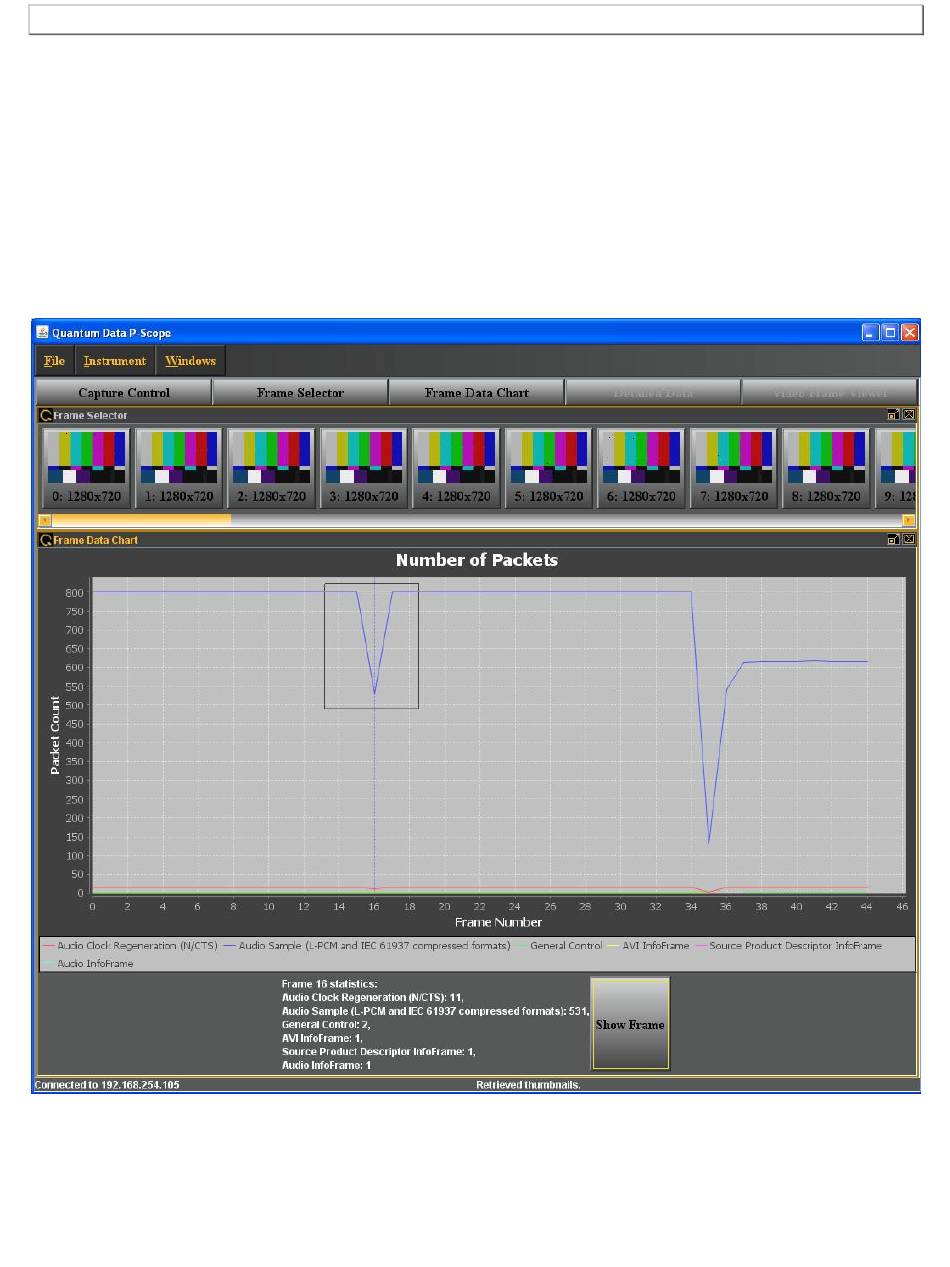

2. Surround a set of frames to view a smaller set if necessary as shown in the figure below.
The resulting screen is shown below.
3. Reposition the selector to the desired frame if necessary.
