P-Scope Quick Start Guide – Rev. AP5

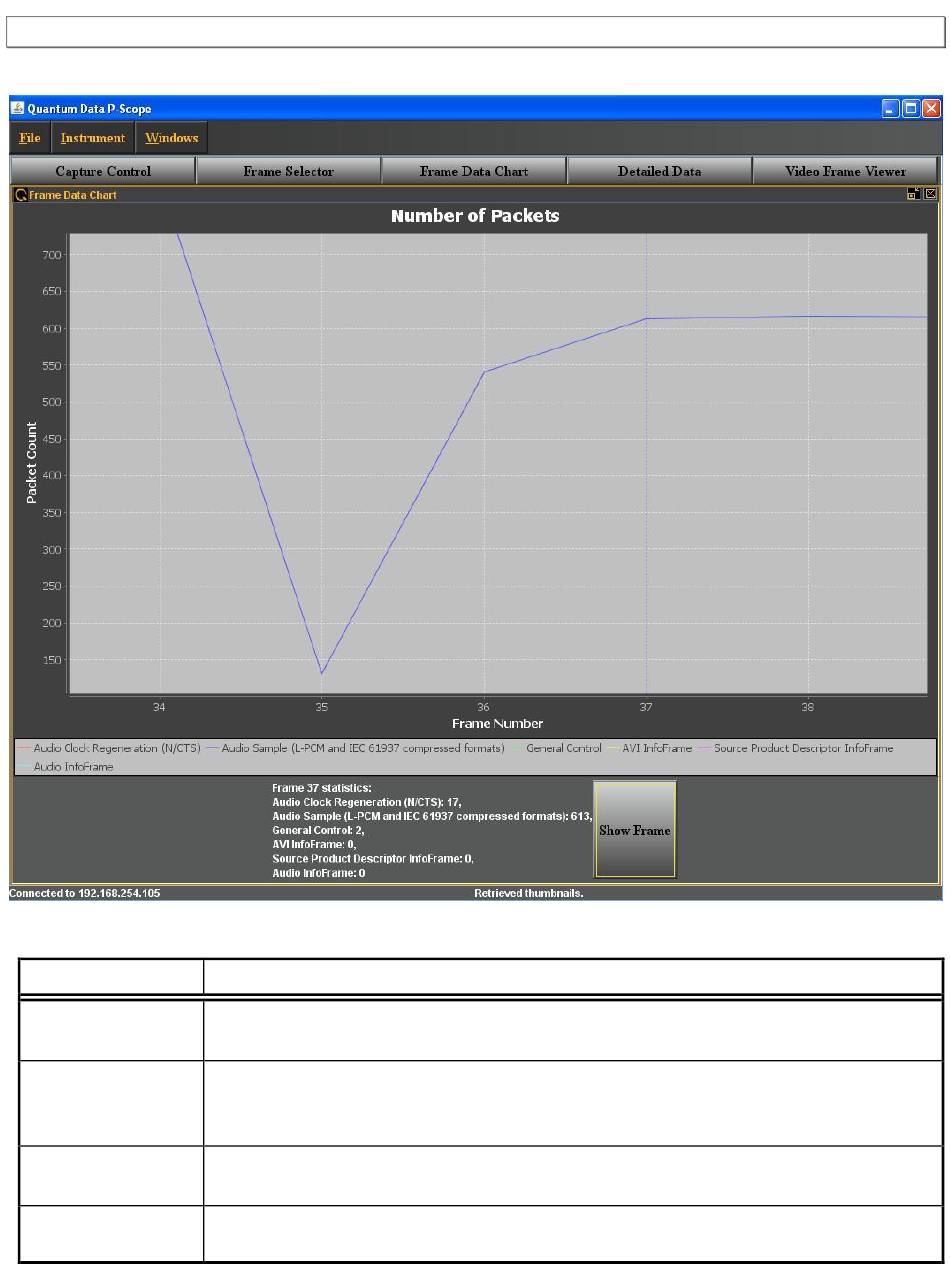

The following table describes the information on the Frame Data Chart window.
Item
Packet Count
Frame Number
Legend
Frame Statistics
Function
Packet Count is the Y-axis (Range) of the chart. This is the number of packets (per
type) that have occurred during a particular frame.
Frame Number is the X-axis (Domain) of the chart. These are the frame numbers within
the captured data set viewed on the chart. The increments between the frame numbers
will decrease as you select a smaller range of frames to view on this chart.
The legend underneath the chart shows you the color coding for the packet data types
that occur on the chart.
The Frame Statistics are shown on the bottom of the chart. They provide a quick glance
of the type of packets and the number of packets of that type that occur within the
