Detailed Data Window

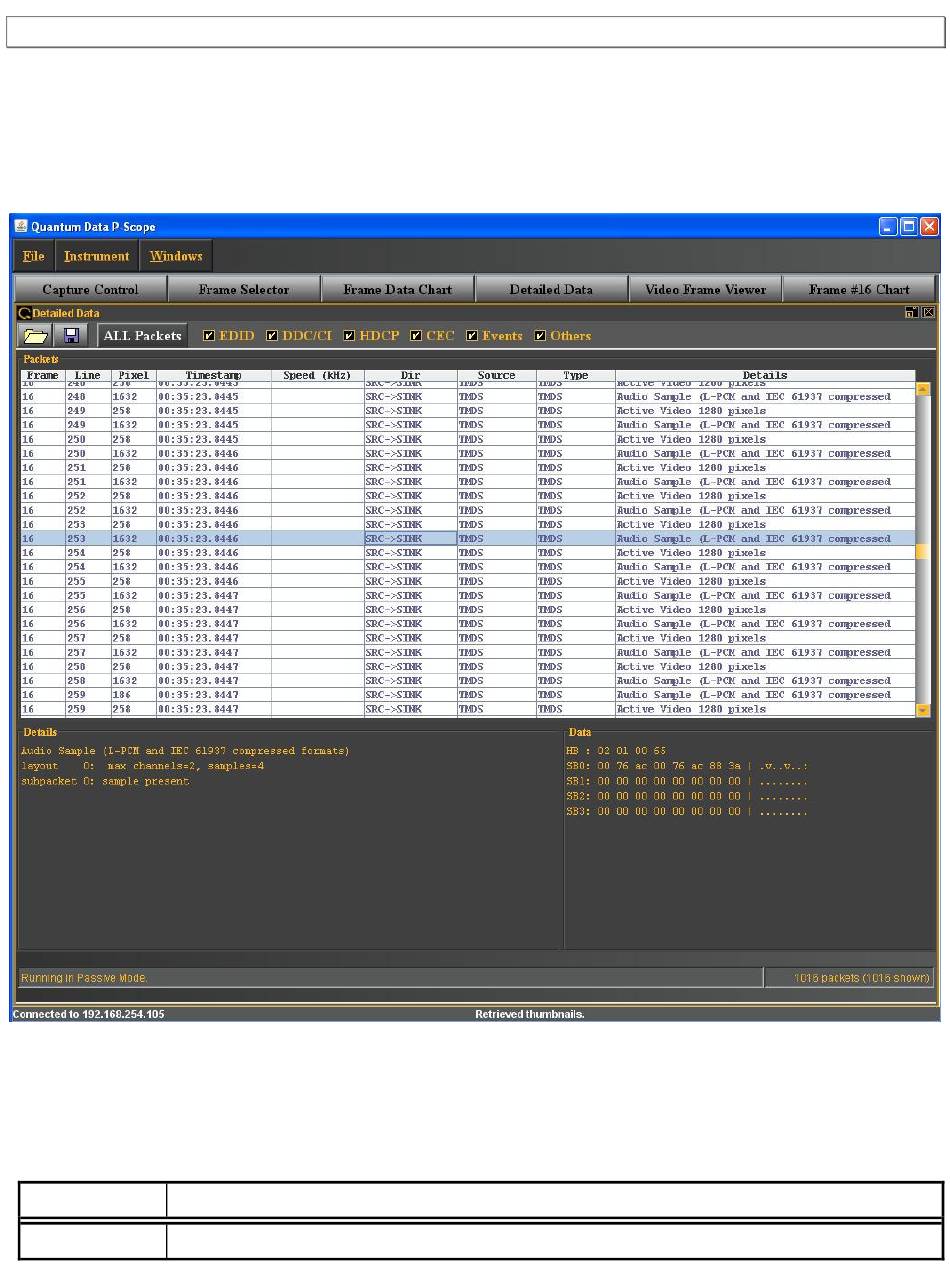

The Detailed Data window is shown below along with a table describing its panels and attributes. You can select
any transaction record to view its details in the lower panels.
The Detailed Data window enables you to select the individual protocol transactions (records). When you
highlight a transaction, the details for that transaction are shown in the two panels below: 1) Details and 2) Data.
The Details panel shows the data for the selected transaction parsed out in human readable form. The Data panel
shows the data for the selected transaction parsed out in hex form. The following table describes the information
on the Detailed Data window.
Item Function
Open (Icon)
Enables you to open an existing transactions stored on your host PC for analysis.
