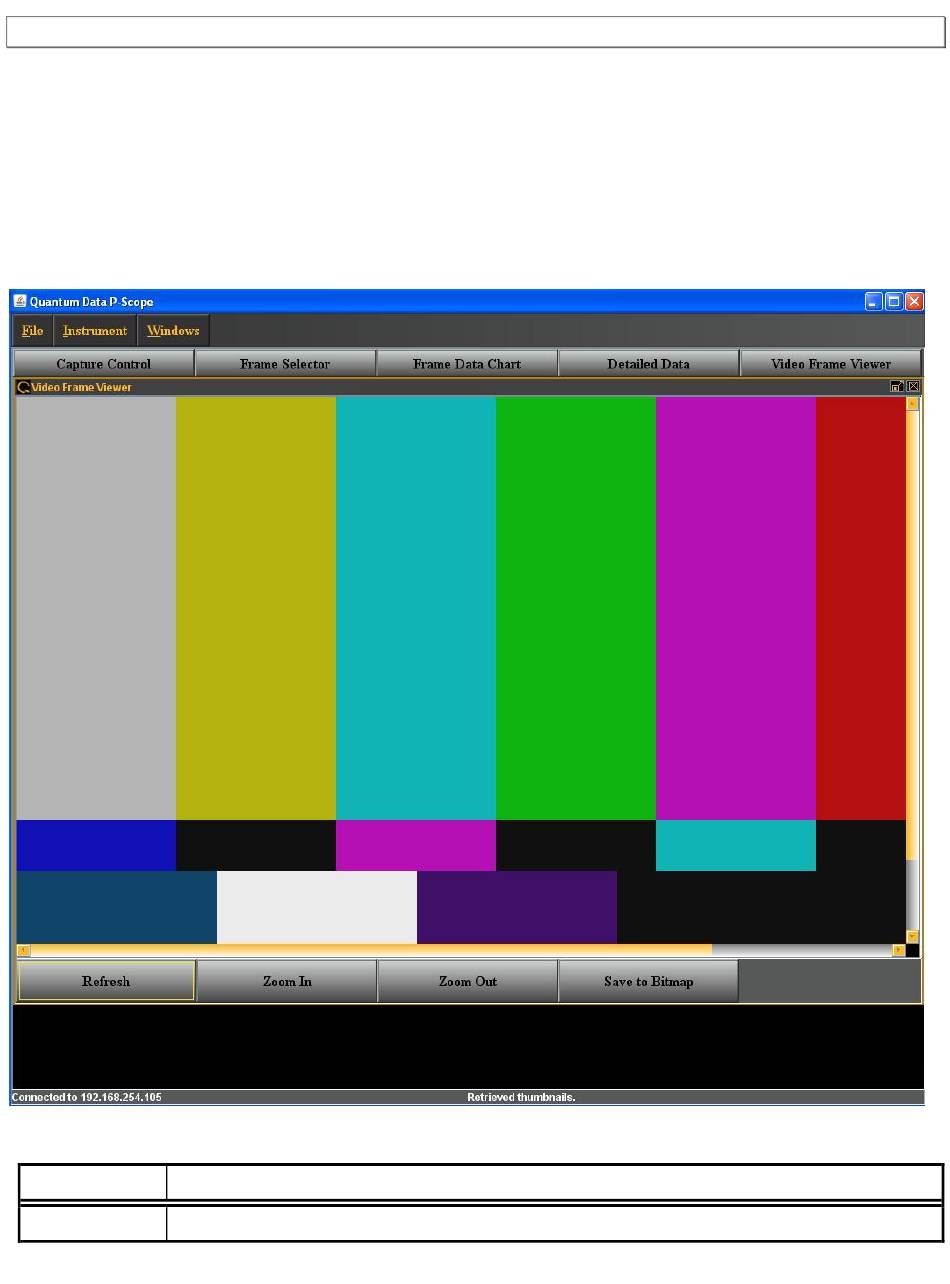

Video Frame Viewer Window
The Video Frame Viewer enables you to see the video pattern for a particular frame. You can access this
window either by clicking on the Video Frame Viewer button or by clicking on a frame from the Frame Selector
window. The Video Frame Viewer enables you to click on a pixel and then view the pixel coordinates and their
color component values. You can view the pattern in three scales using the Zoom In and Zoom Out buttons on
the bottom.
The following table describes the information on the Video Frame Viewer window.
Item Function
Refresh
Refreshes the pattern.
