Frame Data Chart

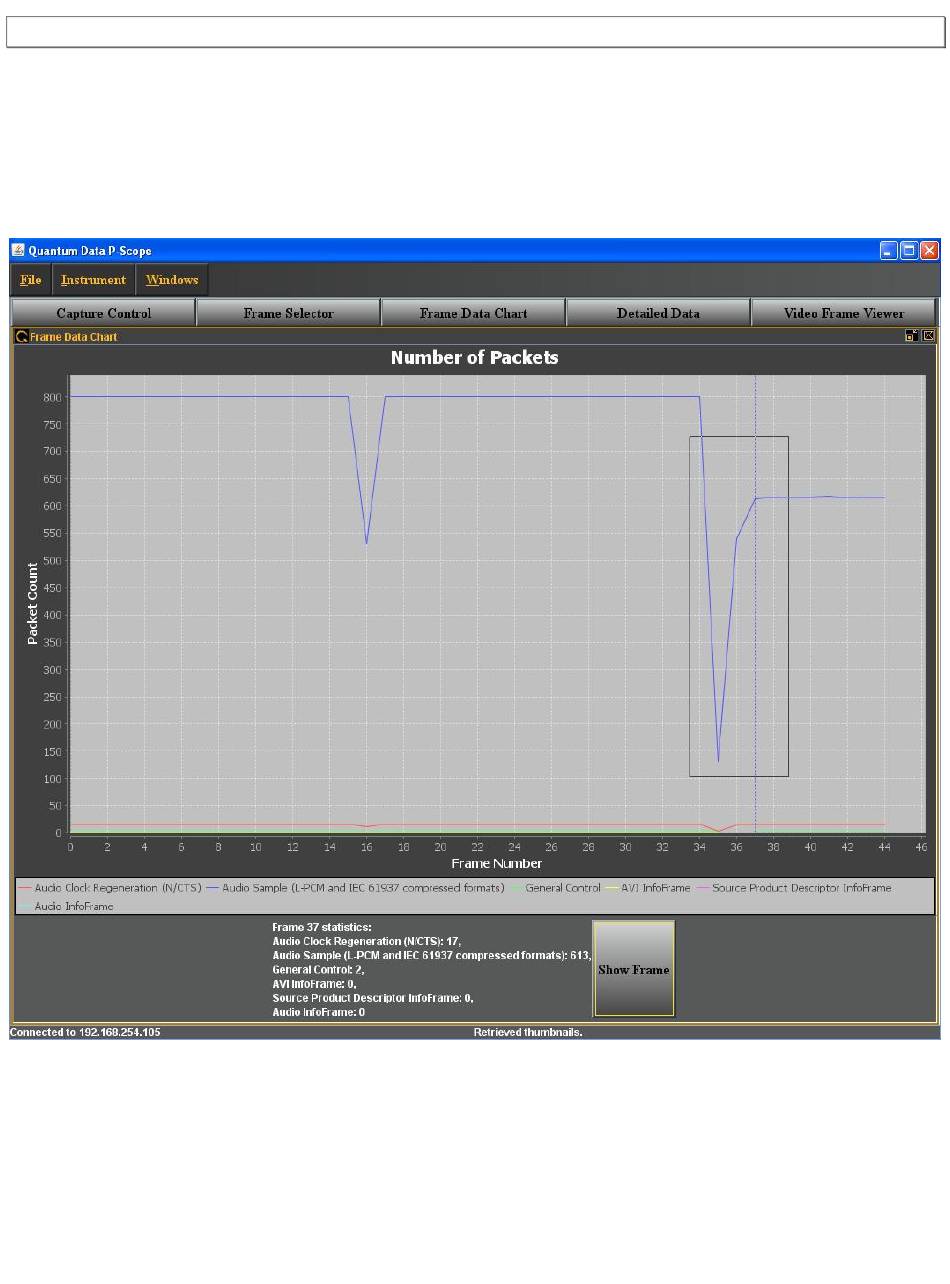

The Frame Data Chart window opens when you click on the Frame Data Chart button. It is shown below along
with a table describing its attributes. You can zoom in (drill down) to a closer view of the frames by surrounding at
subset with the cursor. The following two figures depict this drill down.
