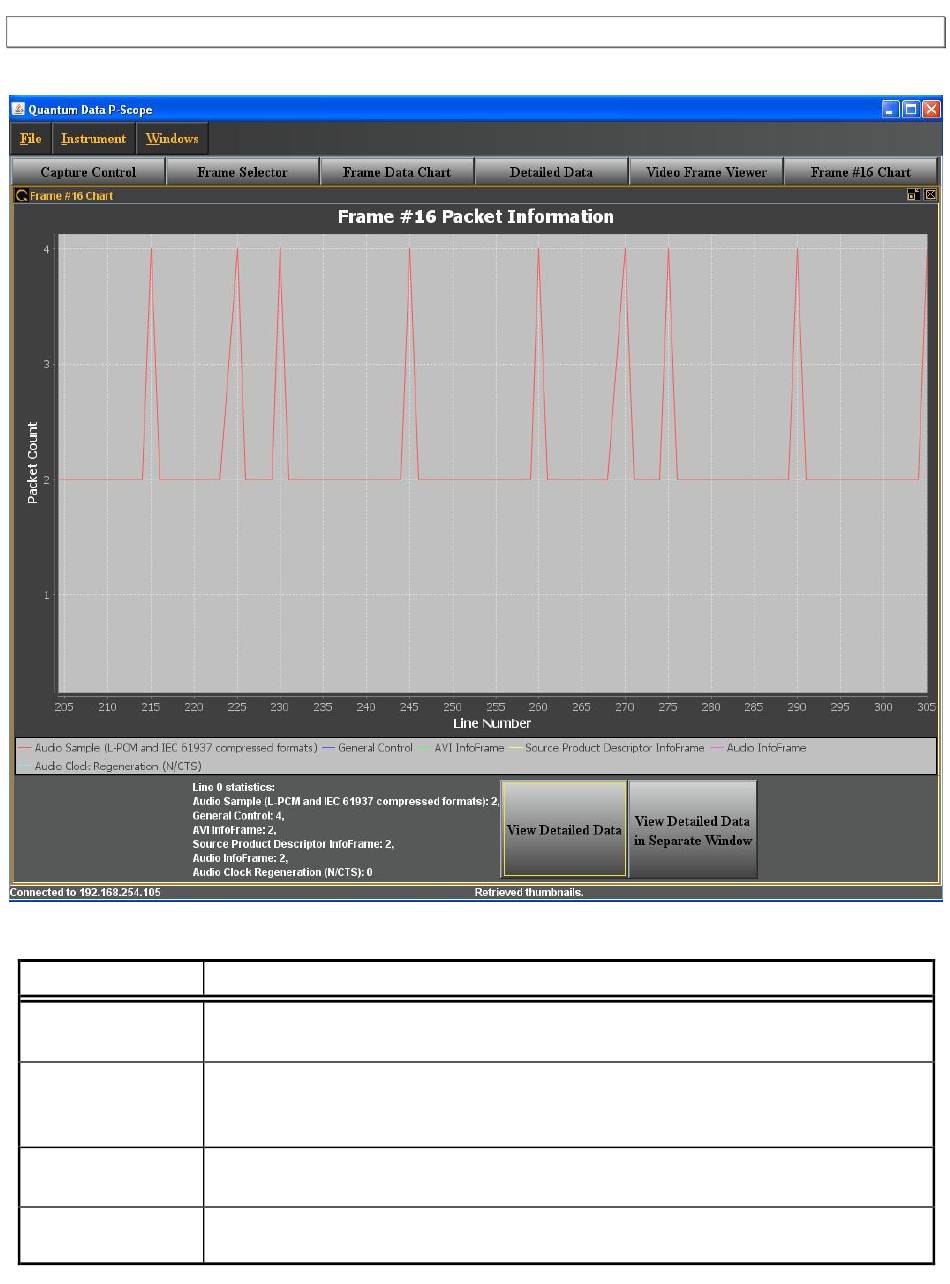

The following table describes the information on the Frame # Chart window.
Item
Packet Count
Line Number
Legend
Line Statistics
Function
Packet Count is the Y-axis (Range) of the chart. This is the number of packets (for
each particular type) that have occurred during a particular line.
Line Number is the X-axis (Domain) of the chart. This is the frame numbers within the
captured data. The increments between the line numbers will decrease as you select a
smaller range of lines to view on this chart.
The legend underneath the chart shows you the color coding for the packet data types
that occur on the chart.
The Line Statistics are shown on the bottom of the chart. They provide a quick glance
of the type of packets and the number of packets of that type that occur within the
