Frame # Chart Window
The Frame # Chart window can be opened from the Frame Data Chart window or the Frame Selector window.

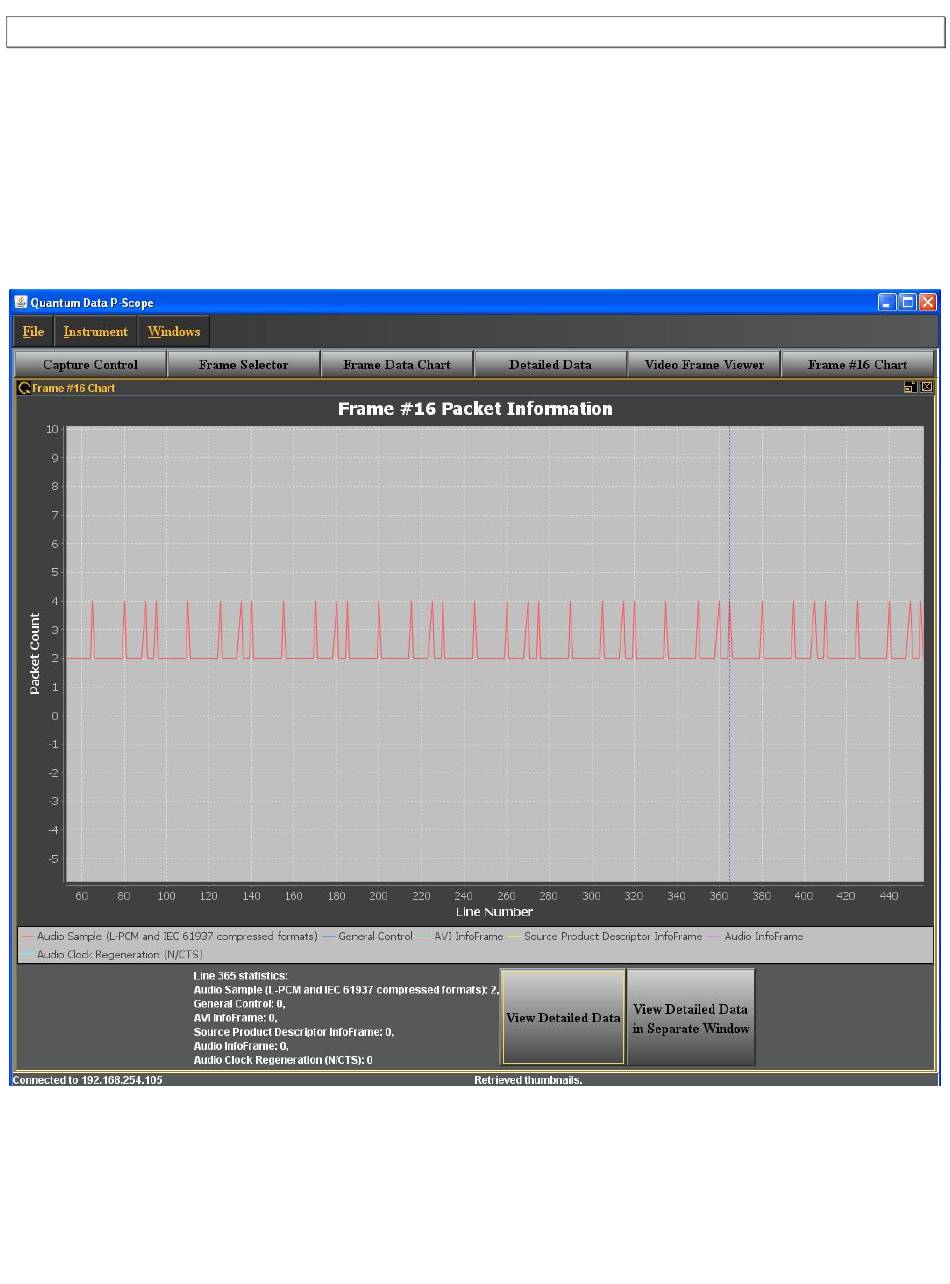

This window is shown below along with a table describing its attributes. You can zoom in (drill down) to a closer
view of the lines by surrounding a subset of the lines with the cursor. The following two figures depict this drill
down. You can access the Detailed Data window to view detailed information about the packets occurring in the
frame.
