Frame Selector Window

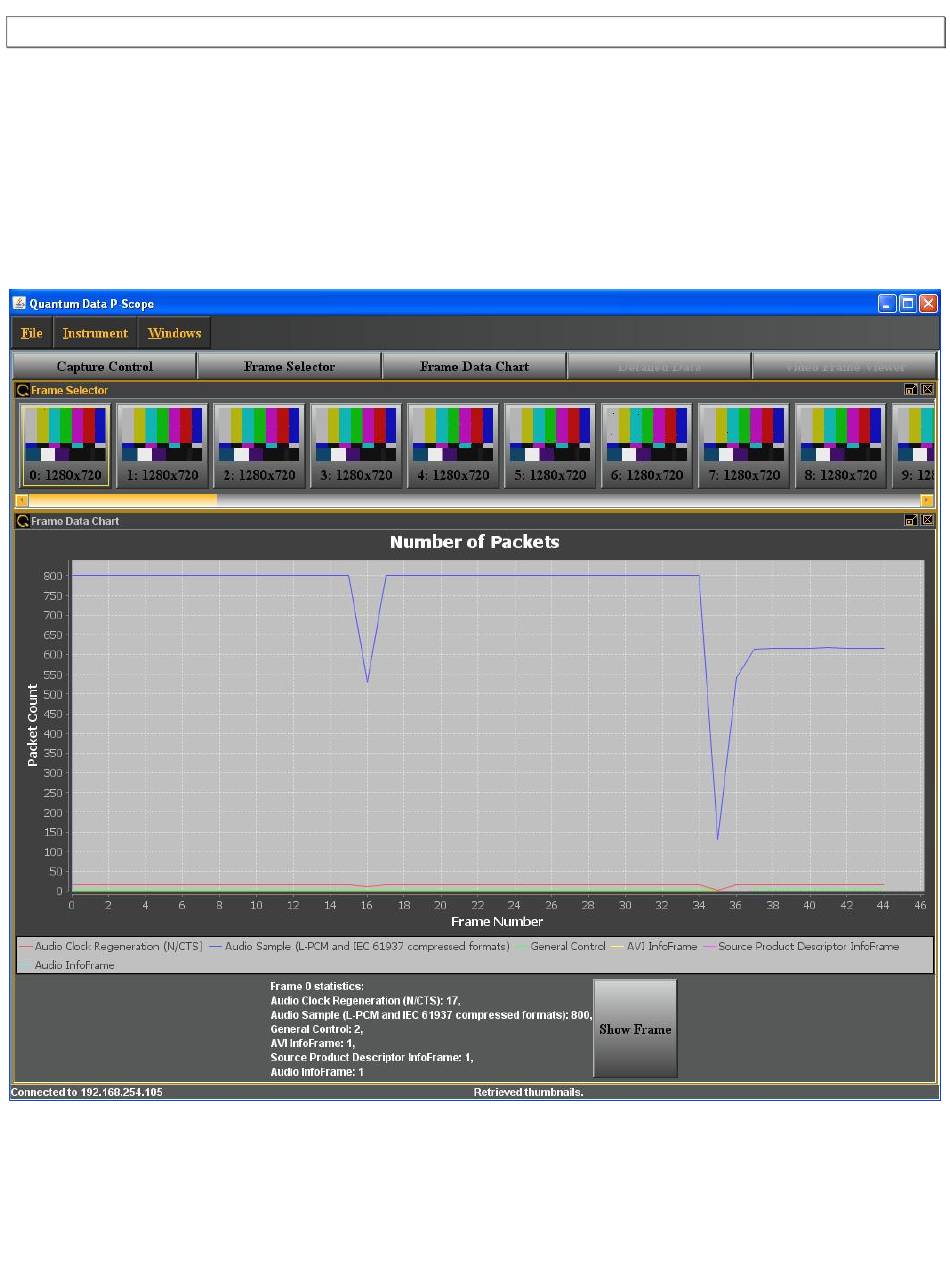

The Frame Selector Window can be opened by clicking on the Frame Selector activation button. This window is
shown below in the top portion of the main window. Each frame in the horizontal list has a thumbnail of the video
pattern for that frame along with the frame number in the capture buffer and the active timing parameters
(horizontal and vertical). You can scroll through to access specific frames. Clicking on a frame will take you to the
Frame # Chart for that frame.
