S2528GX Hardware Installation Manual

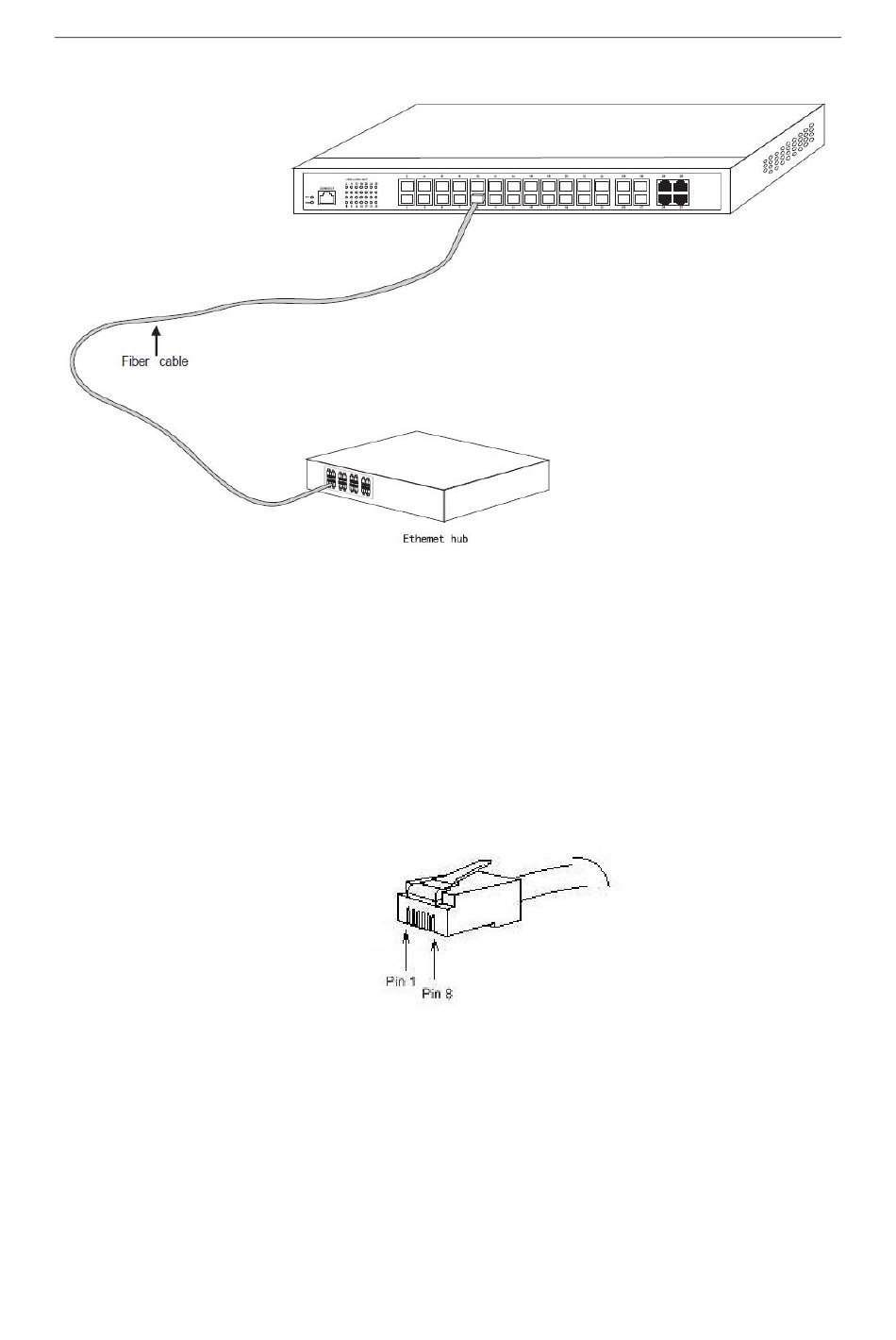

Note: The switch shown in the previous figure does not represent real S2528GX
switch.
3.3.3
Connecting Ethernet TX Port
The S2528GX switch has 24 10/100/1000Base-T ports. The LEDs are labeled with
numbers 1-24, indicating the link/ACT state of the port. You can connect other Ethernet
terminal devices to the UTP port through the cut-through or cross network cable. The
numbering order of the pins in the UTP port is the same as the console port.
Figure 3-6 RJ-45 connector of the console port
Because 24 10/100/1000Base-T ports of
S2528GX support the MDI/MDIX
auto-identification
of
the
cable,
S2528GX
can
adopt
five
classes
of
direct-through/cross network cables when it connects other Ethernet terminals.
- 12 -
