2 Door & Operator Hardware
2.1

Delivery of Operator

Upon delivery of your OPERA jackshaft operator, inspect the unit immediately for any shipping damages. Verify that
you have received all the hardware parts pertaining to your operator model, as listed in Table 3 and shown in
Figure 3. If ordered, other items such as radio controls or other types of optional equipment may be present. If any
item is missing or if there is evidence of damage, call the transport company or your direct supplier.
2.2

Hardware Supplied

Table 3 - Standard Hardware Parts Supplied
No Qty
1 1 3-Push-button station (open/close/stop)
2 1 Operator sprocket
3 1 Door sprocket
4 1 #41/#50 Drive chain, 4ft
5 1 #41/#50 Chain link
6 4 5/16-18 x 5/16" Set screw
7 2 Key 1/4" x 1-1/2"
8 1 Pocket wheel hand chain, 24ft
9 1 Chain keeper for hand chain
10 1 Disconnect chain, 14ft
11 1 Chain keeper for disconnect chain
12 1 Handle for disconnect chain
13 1 Entrapment Warning Placard
(1) Differs according to operator model and door characteristics
(2) 5ft for 42/54/60 tooth door sprocket, 8ft for 72 tooth door sprocket
(3) Quantity = 2 times door shaft height minus 4ft
(4) Only supplied with OMH/OPH/OHJ/OBH/OSH/OGH/MGH/GH
(5) Only supplied with OMJ/OPJ/OSH/MGH/GH
NOTE: Install the Entrapment Warning Placard (shown in Figure 4), next to the control station, visible in the area of
the door.
For technical support, please call 1-800-361-2260 or visit
Description
(1)
Lxxxx
(1)
Hxxxx
(1) (2)
Gxxxx
(1)
HD1-
HBAG
(3) (4)
(4)
(3) (5)
(5)
(5)
6

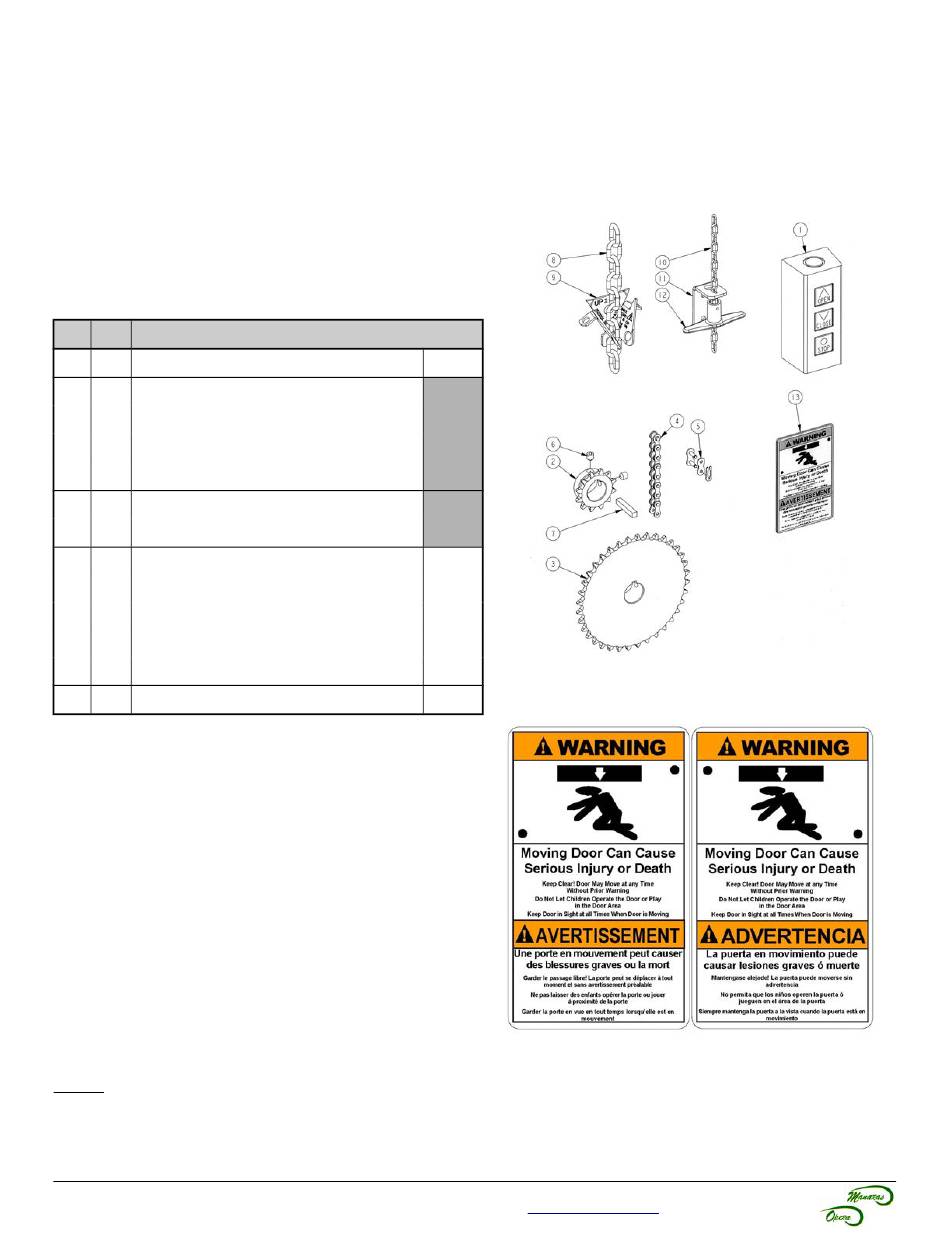

Figure 3 - Standard Jackshaft Hardware
Figure 4 - Entrapment Warning Placard
