5.4
MGH Control Box with BOARD 070E
No Qty
1
2
3
4
5
6
7
8
9
10
For technical support, please call 1-800-361-2260 or visit

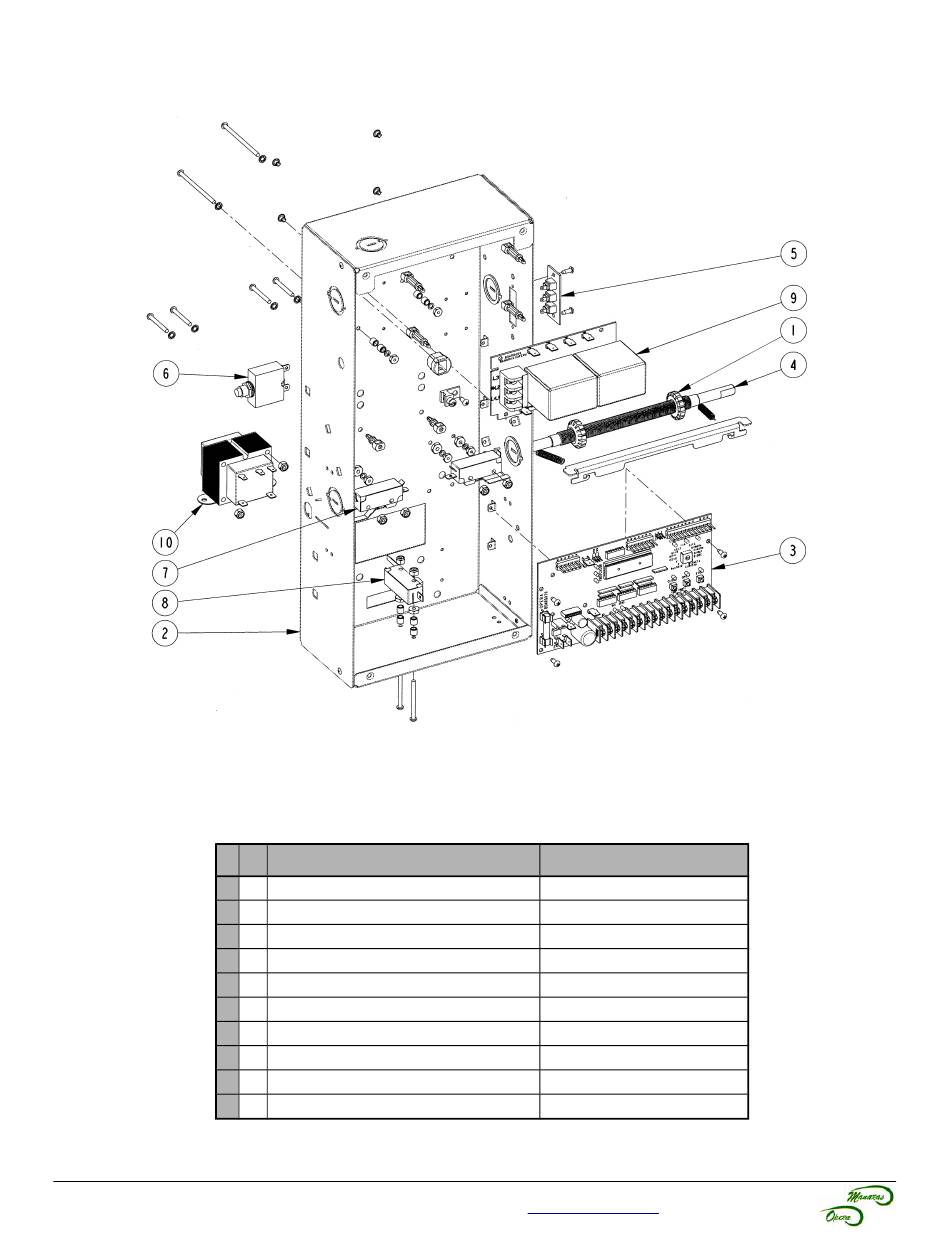

Figure 43 - MGH Control Box with BOARD 070E
Table 19 - Control Box Replacement Components (CBOX033)
Description
2
CAM LIMIT OPERA
1
GH-MGH CONTROL BOX
1
MONITORING STD ELECT. CONTR. BOARD
1
OPERA LIMIT SHAFT
1
RADIO CONTROL TERM STRIP
1
RESET
2
SINGLE LIMIT SWITCH - LEVER 46 DEG
1
SNAP-ACT. SW.SPDT-LEVER FLAT 1.5"
1
STD ELECT. POWER BOARD 2 RELAYS
1
TRANSFO TO 24V
47
Manaras-Opera
Part #
CAM011
CBOX033
BOARD070E
SHAFT103
TSTRIP005
SEE Table 20 or Table 21
LIMIT023
LIMIT025
BOARD066
SEE Table 20 or Table 21
www.manaras.com
for more information
