4
Manual Hand Chain and Disconnect Chain
4.1
Adjustment of the Manual Hand Chain
By default, the operator is provided with the chain hoist located on the right hand side. If handling requires the chain
hoist to be on the left side (rolling doors, left operator hood mount), the hoist can easily be transferred from the right
hand side to the left hand side in the field. Refer to Figure 9 and step by step instructions below.
Final Position
Hoist on Left
1.
Use an Allen key to unscrew and remove the collar.
2.
Remove the washer which is located between the collar and the chain guide.
3.
Remove the chain guide.
4.
Remove the pocket wheel.
5.
Transfer these components to the left hand side.
6.
Insert the pocket wheel on the hoist shaft up against the spring pin.
7.
Insert the chain guide on the hoist shaft.
8.
Insert the washer against the chain guide.
9.
Insert the collar at the end and use an Allen key to tighten the set screw.
For technical support, please call 1-800-361-2260 or visit
10
Spring Pins

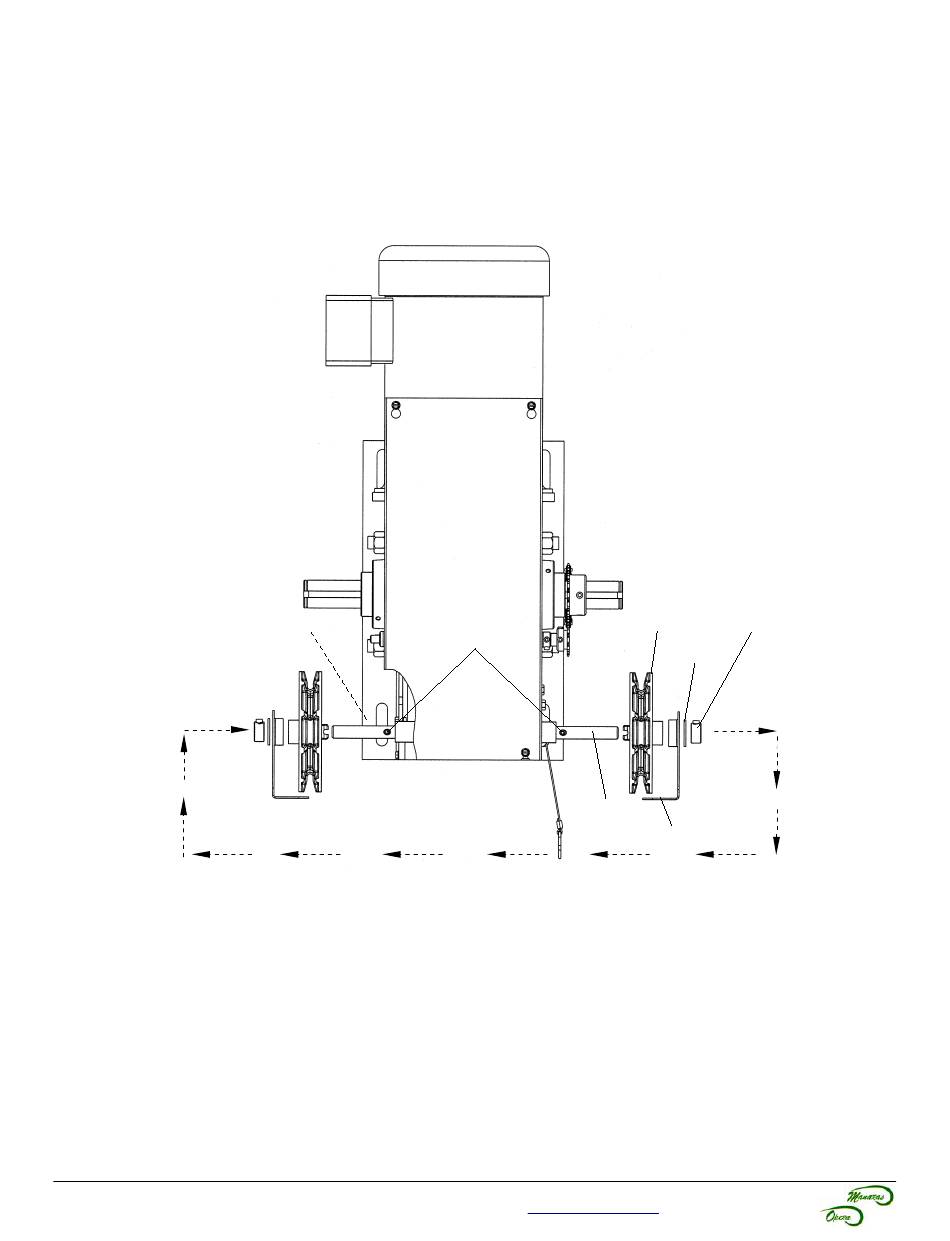

Figure 9 - Changing Chain Hoist from Right to Left
Pocket Wheel
Washer
Hoist
Shaft
Chain Guide
www.manaras.com
for more information
Collar
