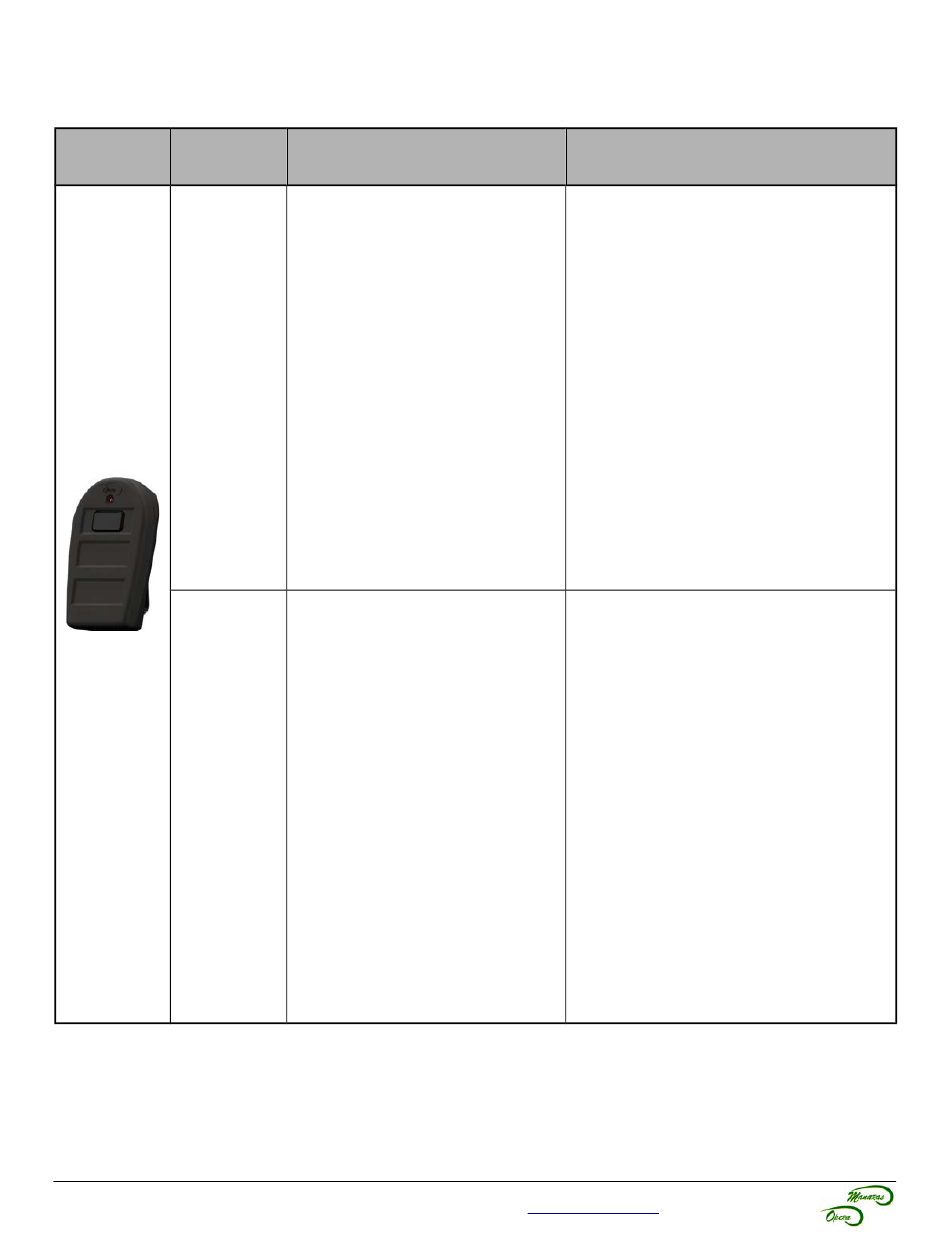

8.3 Radio Control Functions – 1 and 3-Button Transmitters
Table 7 - Radio Control Functions - 1-Button Transmitter RADIOEM101
Transmitter Modes
Commercial
Sequence -
1-Button
Single Button
Control (SBC)
1-Button
Available with
Transmitter
the Electronic
Control Board
RADIOEM101
(ECB) only.
Alternating
Sequence
For technical support, please call 1-800-361-2260 or visit
28
Functions
OPEN / CLOSE → Button
Door is CLOSED:
- Click Button → Door OPENS
FULLY
During UPWARD Travel:
- Click Button → Nothing happens
Door is OPENED:
- Click Button → Door CLOSES
FULLY
During DOWNWARD Travel:
- Click Button → Door reverses and
OPENS FULLY
Door is STOPPED:
- Not possible in this mode. Door is
either FULLY OPENED or FULLY
CLOSED.
OPEN / STOP / CLOSE → Button
Door is CLOSED:
- Click Button → Door OPENS
During UPWARD Travel:
- Click Button → Door STOPS
Door is STOPPED:
- Click Button → Door CLOSES
During DOWNWARD Travel:
- Click Button → Door STOPS
Door is STOPPED:
- Click Button → Door OPENS
Note: If the door is STOPPED for
more than 2 minutes, the next
movement will be UPWARD
regardless of the previous
movement.
Programming
(On operator's ECB)
Standard default mode.
1.Door is in fully CLOSED position.
2.On ECB, verify if the close limit switch is
activated (CLOSE LED is ON).
3.On ECB, set select switch on 9 = SBC.
4.On ECB, press "STOP" button.
5.On ECB, select run mode (1, 4, or 5).
1.Door is in fully CLOSED position.
2.On ECB, verify if the close limit switch is
activated (CLOSE LED is ON).
3.On ECB, set select switch on 9 = SBC.
4.On ECB, press "OPEN" button.
5.On ECB, select run mode (1, 4, or 5).
