6.4.2
Reversing Edge Device (Non-Monitored)
• If the door is controlled by any device other than a constant pressure push-button station on close,
including a timer-to-close, a reversing edge must be connected.
Installation
Pneumatic Sensing Edge
1. Place the air switch in position, refer to Figure 26.
2. Place the air hose in position.
3. Use a coil cord or take-up reel to connect the air
switch to the operator terminals. Install electric
wires according to Figure 27 or Figure 28.
4. Connect one end of the air hose to the air
switch.
5. Place the air plug in the other end of the air
hose.
Electric Sensing Edge
1.
Place the junction box in position, refer to Figure 26.
2.
Place the sensing edge in position.
3.
Use a coil cord or take-up reel to connect the
sensing edge wires to the operator terminals.
Install electric wires according to Figure 29.
4.
Connect the sensing edge to the junction box.
5.
N/A

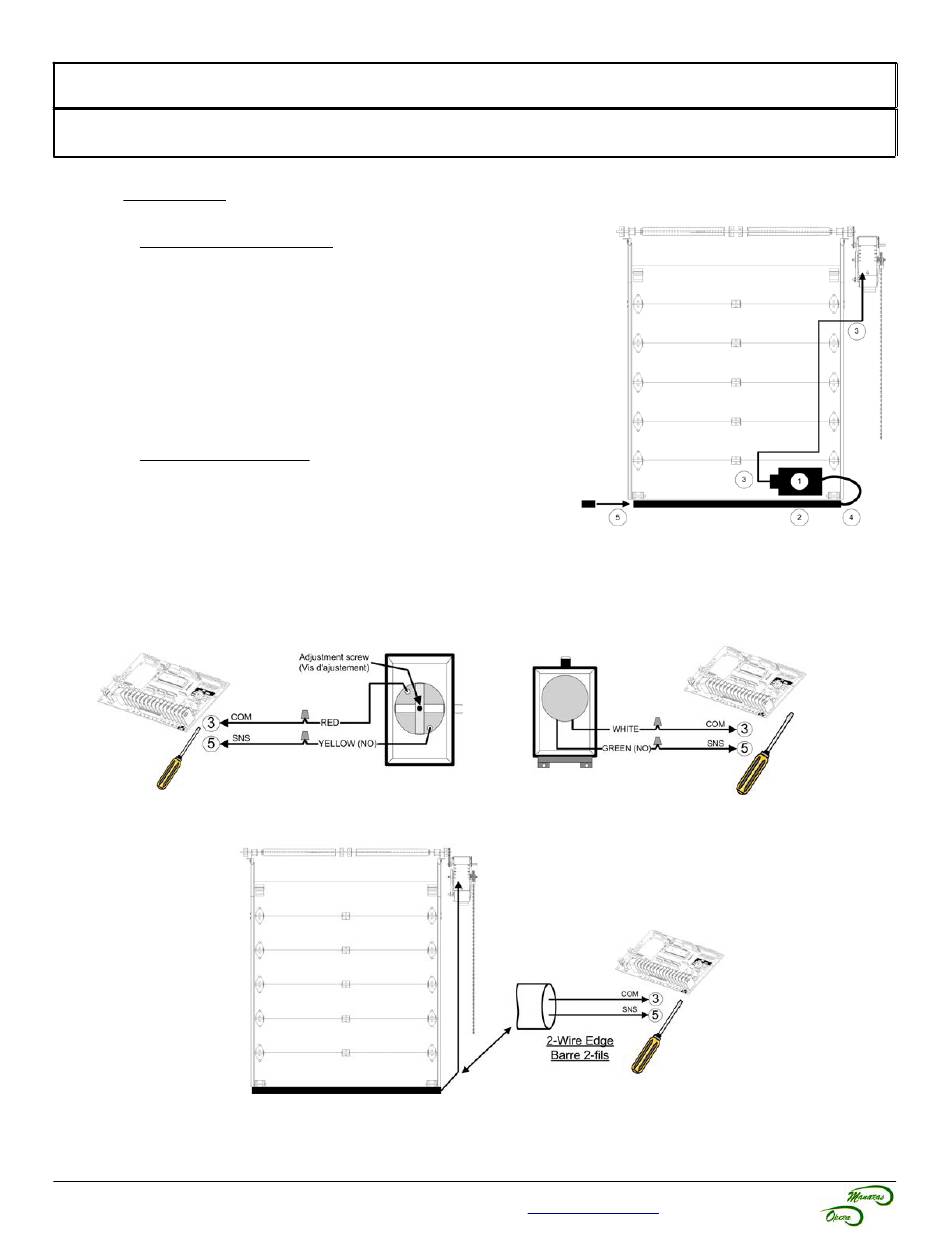

Figure 27 - AIRSWITCH 001 / 007
For technical support, please call 1-800-361-2260 or visit
19
NOTICE
Figure 29 - Electric Reversing Edge
Figure 26 - Reversing Edge
Figure 28 - AIRSWITCH 009
