6.4
Optional Accessory Connections
• Photo cells must be installed facing each other across the door's path within 6" (15 cm) of the plane of
the door and the beam no more than 5-3/4" (14,6 cm) above the floor.
• Keep low voltage wires separate from line voltage wires.
• Use copper conductors only.
6.4.1

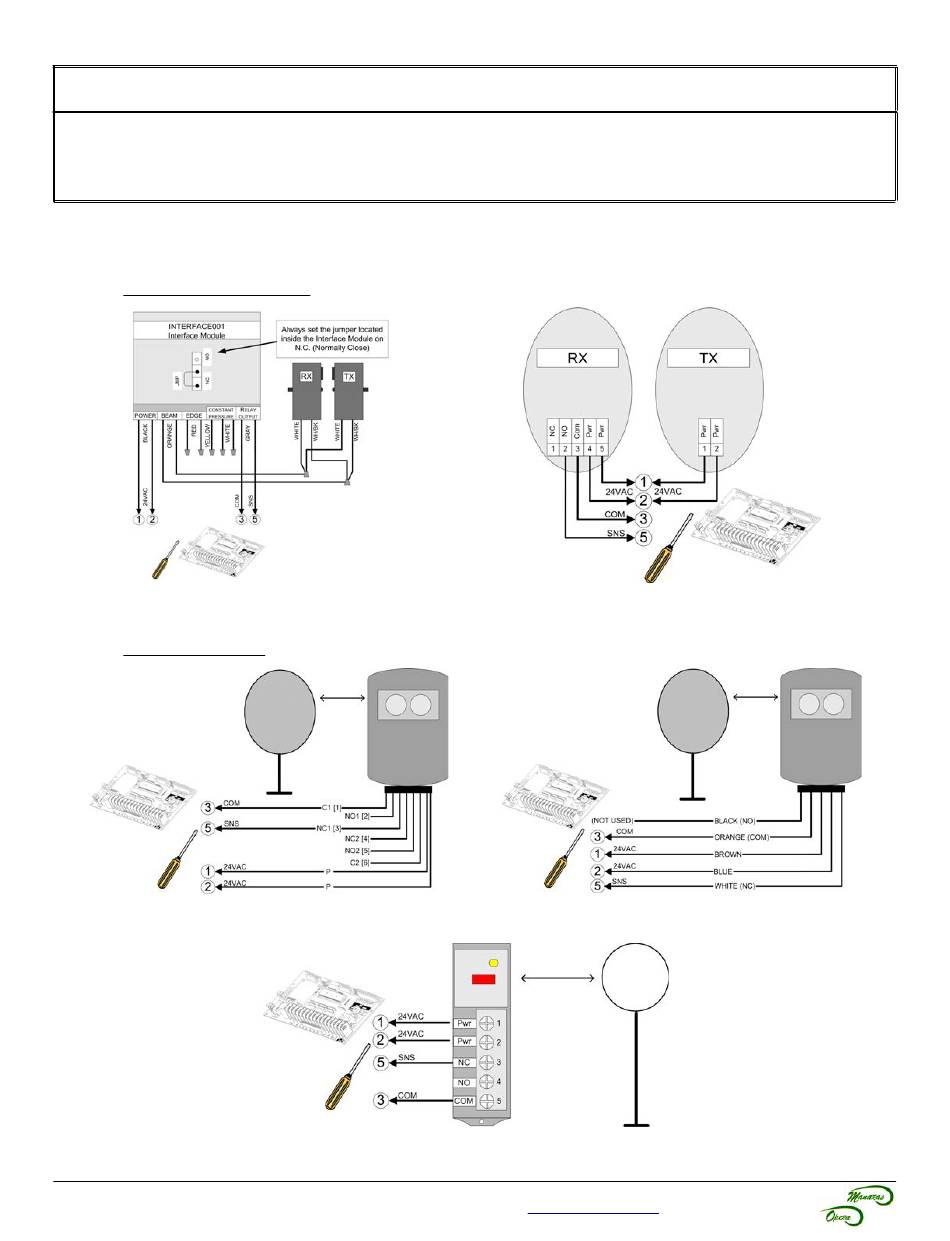

Electric Photo Cells / Photo Eyes (Non-Monitored)
Through Beam Type
Figure 21 - PHOTO 008A/B
Reflective Type
Figure 23 - PHOTO 018
For technical support, please call 1-800-361-2260 or visit
18
NOTICE
Figure 22 - PHOTO 015 / 016 / 045 / 050 / 051 / 059
Figure 24 - PHOTO 060
www.manaras.com
Figure 25 - PHOTO 038
for more information
