Manaras Opera MGH Installation Instructions Manual page 26

Mid-Stop (MD STP)
• The Mid-Stop position must always be programmed/adjusted so that there is a minimum gap of 12"
between the top of the tallest vehicle and the bottom edge of the door.
Mid-Stop, when activated, will allow the door to stop at a predetermined position when an open signal is given from
the fully closed position. The Radio control or Close push-button will close the door from the mid-stop position. The
door will open fully from mid-stop position if the Open button is activated.
Mid-Stop Activation
1. Verify if the close limit switch is activated and
if the close LED is ON.
2. Set select switch on C = MdStP.
3. Press the "Open" button. While the door is
moving press the "Stop" button at the
desired (mid-stop) position.
4. Set select switch on run mode
(0, 1, 4, or 5).
Mid-Stop Timer (MD TM)
This feature allows the Timer to Close to be enabled/disabled at the Mid-Stop position.
MD TM Activation
1. Verify if the close limit switch is activated
and if the close LED is ON.
2. Set select switch on 6 = Md Tm.
3. Press the "Close" button.
4. Set select switch on run mode (4, or 5).
Single-Button Control (SBC)
With this feature, it is possible to use a single-channel transmitter for a Commercial Application, as well as a Single-
Button Control (SBC). The SBC provides the user with the possibility to open, stop or close the door by using a
single-button radio transmitter (or a single push-button station).
SBC Activation
1. Verify if the close limit switch is activated
and if the close LED is ON.
2. Set select switch on 9 = SBC.
3. Press the "Open" button.
4. Set select switch on run mode (1, 4, or 5).
Universal Auxiliary Output Module (8 = WLF)
The universal auxiliary output module is sold separately. The module allows for the connection of external devices
such as: red and green warning lights (custom sequences available, ask Manaras-Opera for details), air curtains,
horns, locks, etc... Call your dealer or Manaras-Opera for further information.
Please contact your dealer or our inside sales department at 1-800-361-2260 for further information.
For technical support, please call 1-800-361-2260 or visit
26
NOTICE

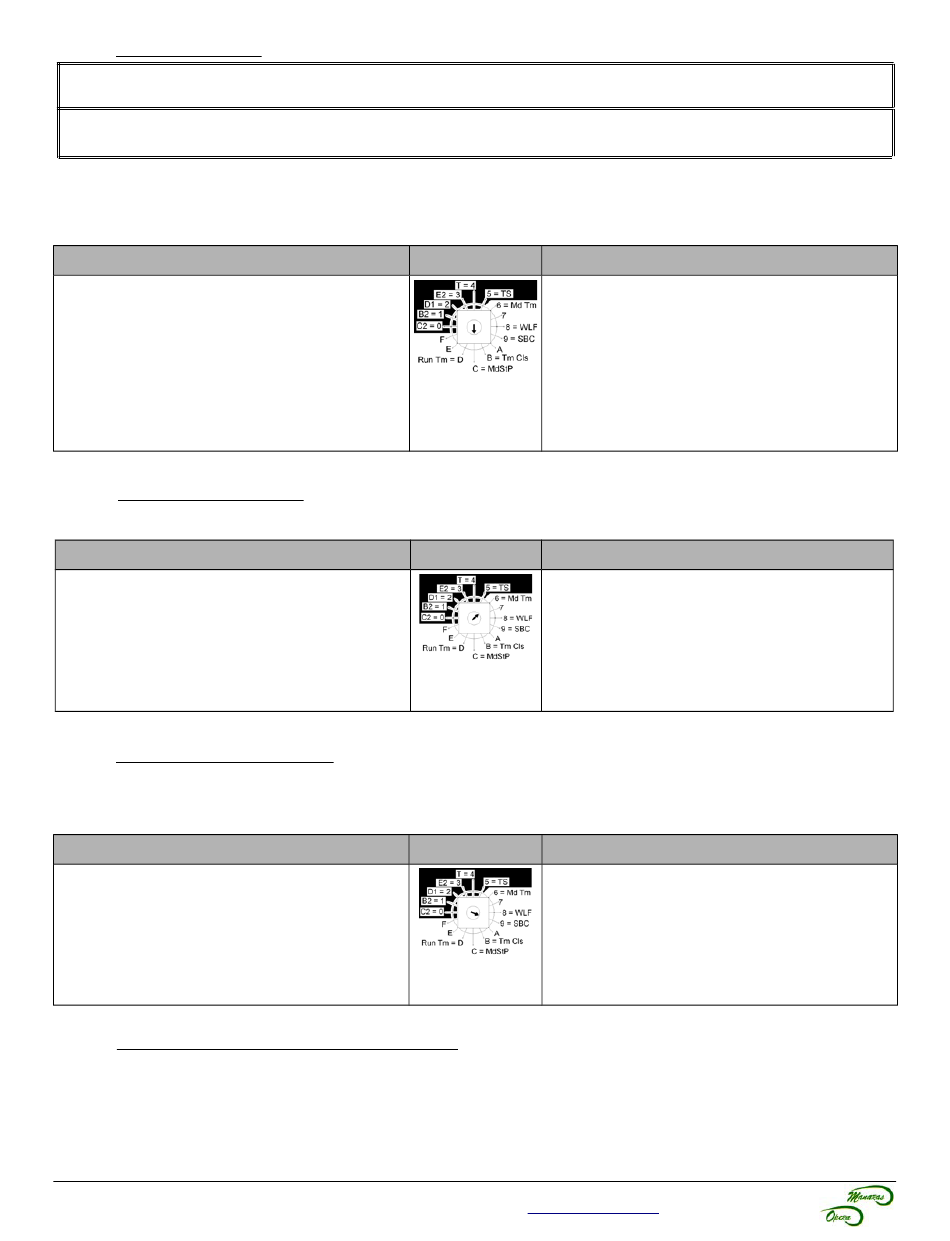

Select Switch
1. Verify if the close limit switch is activated
and if the close LED is ON.
2. Set select switch on C = MdStP.
3. Press the "Stop", "Close" and "Open"
buttons consecutively.
4. Set select switch on run mode
(0, 1, 2, 3, 4 or 5).
Select Switch
1. Verify if the close limit switch is activated
and if the close LED is ON.
2. Set select switch on 6 = Md Tm.
3. Press the "Stop" button.
4. Set select switch on run mode
(0, 1, 2, 3, 4 or 5).
Select Switch
1. Verify if the close limit switch is activated
and if the close LED is ON.
2. Set select switch on 9 = SBC.
3. Press the "Stop" button.
4. Set select switch on run mode
(0, 1, 2, 3, 4 or 5).
www.manaras.com
Mid-Stop Deactivation
MD TM Deactivation
SBC Deactivation
for more information
