10 Clutch Adjustment (if applicable)

• The friction clutch is NOT intended to protect people. It is designed to protect the operator and door
system against potential damage.
• The friction clutch is factory adjusted during final testing. Proper adjustments should be done on site
according to the door characteristics and application.
• In order to avoid the door from getting damaged when the lock is on, the friction clutch must be properly
adjusted according to the instructions below.
Manaras-Opera recommends the installation of a hard stop at the end of the tracks
(ex. bolt, deformation of tracks, bumper spring, pusher spring, etc). With such installation,
the door is prevented from running out of the tracks. The clutch (torque limiter) will
prevent any damage to occur to the door system.
This operator is supplied with a Door Lock Sensor feature. The door lock sensor feature prevents the door from
getting damaged when the door lock hasn't been removed prior to electronic operation. It eliminates the need of
expensive external interlock wiring.
This feature can only be used on operators equipped with a friction clutch. When the lock stops the door, the clutch
slips and in less than 1 second, the door will reverse a fraction of a second to release the tension on the lock.
To adjust the optional friction clutch:
1. Loosen clutch set screw, refer to Figure 35.
2. Rotate the nut counter-clockwise to release the tension.
3. Gradually rotate the nut clockwise until there is just enough tension to permit smooth operation (while still
allowing the clutch to slip if the door is obstructed).
4. Tighten clutch set screw.
For technical support, please call 1-800-361-2260 or visit
NOTICE
Best Practices Encouraged by Manaras-Opera

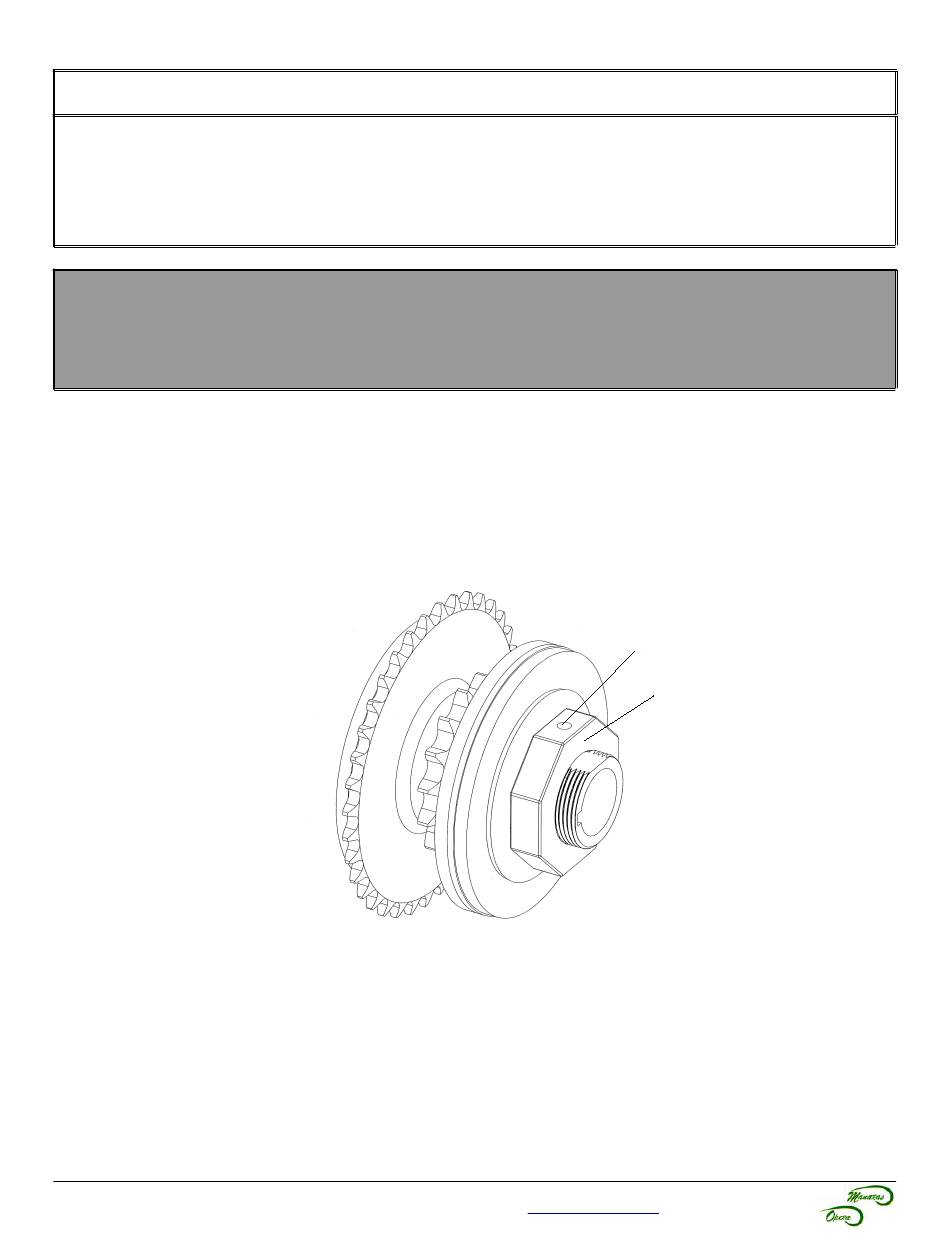

Figure 35 - Clutch Adjustment
31
Set
Screw
www.manaras.com
Nut
