6.3

Wall-Button Connection

• Wall controls must be mounted in clear view of the door, far enough from the door, or positioned such
that the user is prevented from coming in contact with the door while operating the controls and at least
5 feet (1,5 m) above the standing surface.
• Keep low voltage wires separate from line voltage wires.
• Use copper conductors only.

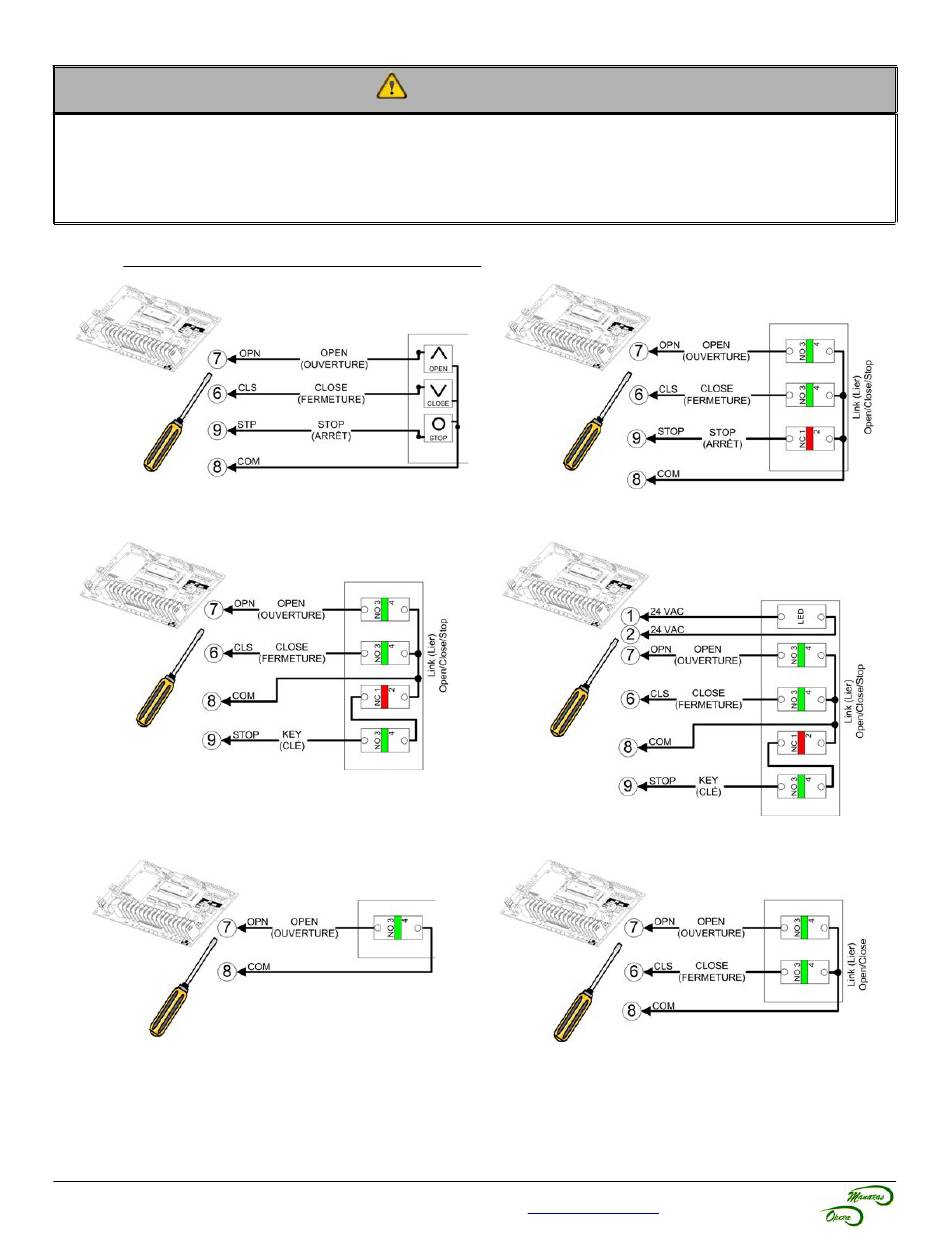

Push-Button Station (PBS) Connection
Figure 15 - STATION 020 / 084
3-PBS Open / Close / Stop
Figure 17 - STATION 079
3-PBS Open / Close / Stop with Key Lock-out
Figure 19 - STATION 001 / 081
1-PBS Open
For technical support, please call 1-800-361-2260 or visit
17
WARNING
Figure 16 - STATION 041 / 049 / 056 / 076 / 078
3-PBS Open / Close / Stop
Figure 18 - STATION 080
3-PBS Open / Close / Stop with Key Lock-out and Light
Figure 20 - STATION 010 / 082
www.manaras.com
2-PBS Open / Close
