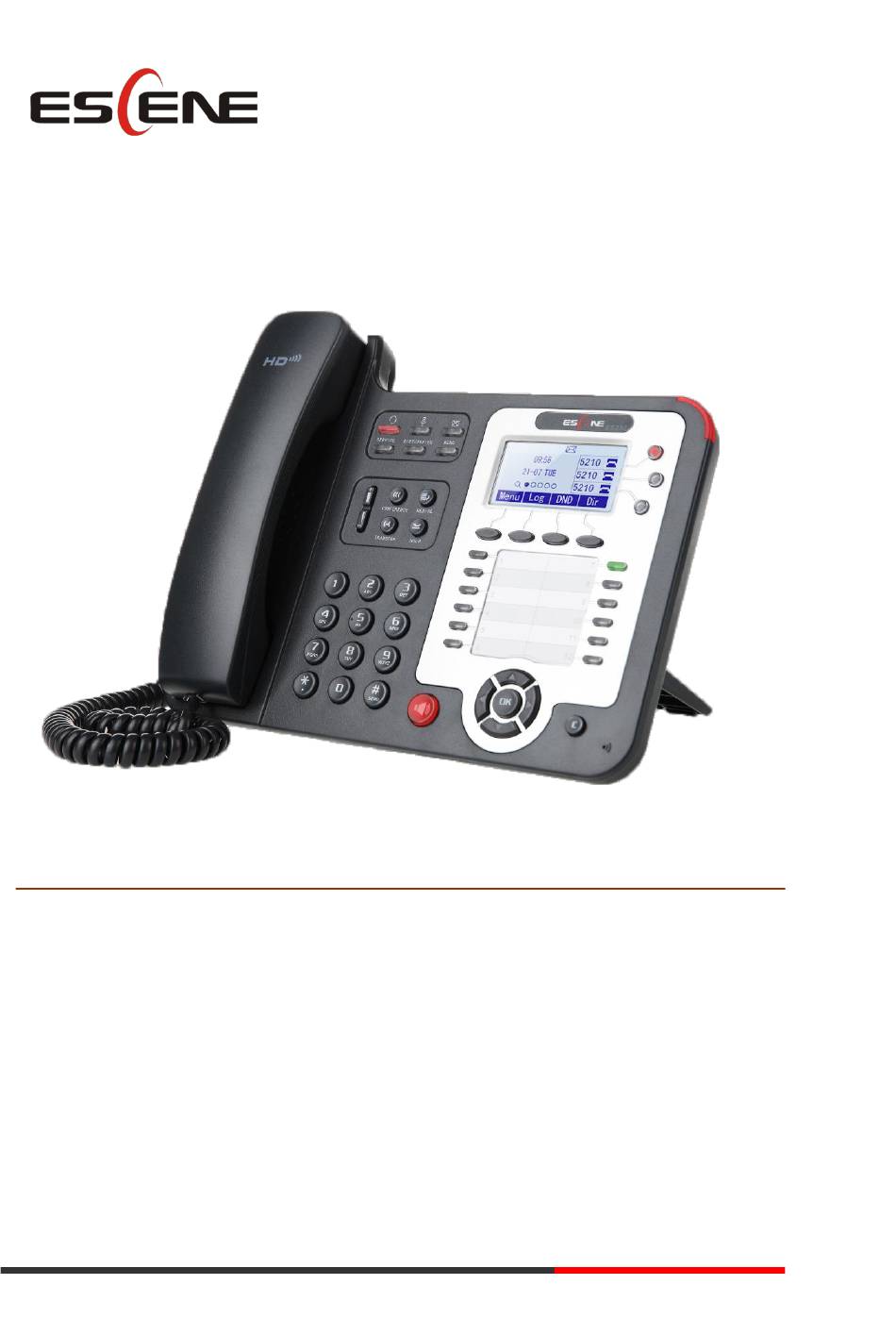

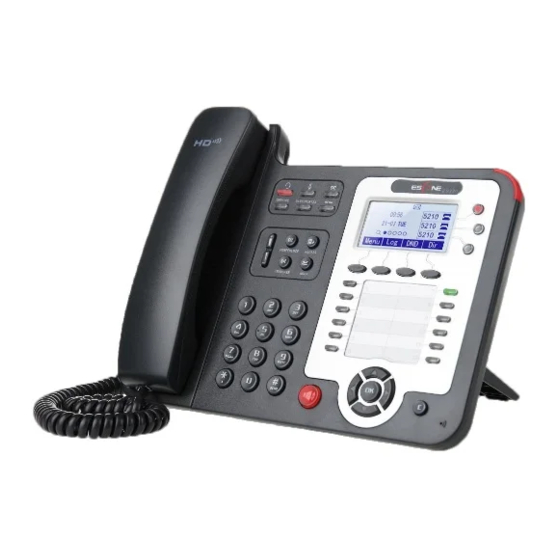

ES330-PEG IP Phone
User Manual
E
s
c
e
n
e
C
o
m
m
u
n
i
c
a
t
i
E
s
c
e
n
e
C
o
m
m
u
n
i
c
a
t
i
www.escene.cn/en/
o
n
C
o
.
L
t
d
o
n
C
o
.
L
t
d
Escene Communication
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES330-PEG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Escene ES330-PEG

Summary of Contents for Escene ES330-PEG

  • Page 1 ES330-PEG IP Phone User Manual www.escene.cn/en/ Escene Communication...

  • Page 2: Table Of Contents

    6.6 View status 6.7 Diagnose 7.Web Settings Main Interface-Phone Status 22 7.1 Net Work 7.1.1 LAN Port 7.1.2 PC Port 7.1.3 Advanced 25 8 SIP Account 8.1Basic 8.2 Call 8.3 Security 9 Phone Setting 29 9.1 Basic www.escene.cn/en/ Escene Communication...
  • Page 3 11.1.3 TFTP Upgrade 42 11.1.4 Default Setting 42 11.1.5 Reboot 11.2 Advanced 11.2.1 Log 43 11.2.2 Auto Provision 43 12 Password 13 WEB Other Settings or Information - Appendix 13.1 WEB User 45 13.2 Multi-Language 13.3 Note Tips www.escene.cn/en/ Escene Communication...

  • Page 4: Getting Started

    1.1 About ES330-PEG is a small-screen-based IP PHONE in SayHi IP PHONE series, it has fashion and technological appearance, excellent voice quality, and powerful features, and it is a new generation of intelligent phones to replace of the traditional desktop office terminals, It accomplished the powerful telephony features by cooperating with the communications platform,.
  • Page 5 Power adapter: AC 100-240V input and DC 12V/1A output PoE (IEEE 802.af); USB (Standard DC 5V) Specification DSPG Chipset Storage Temperature: 0℃ ~ 60℃ Operating Humidity: 10%~90% Size: 287mm*214mm*90mm Net weigh: 1.2kg CE、FCC、RoHS、Avaya、BroadSoft、Alcatel、Yeastar、Digium, Certifications Note: “*” Sign means function has not been published yet. www.escene.cn/en/ Escene Communication...

  • Page 6: Connecting Your Phone

    2.Connecting Your Phone Your system administrator will likely connect your new ES330-PEG IP PHONE to the corporate IP telephony network. If that is not the case, refer to the graphic and table below to connect your phone. Open the ES330-PEG IP PHONE box; carefully check the packing list, Packing List as follows:...
  • Page 7 Escene Communication...

  • Page 8: Phone Overview

    3.Phone overview 3.1 Understanding Buttons and Hardware Figure 3.1 Buttons and Hardware of SayHi ES330-PEG (NOTE: 330 have three lines) Buttons Description Headset button: Toggles the headset on or off. Red means the feature is enabled. Mute button: Toggles the Mute feature on or off.
  • Page 9 Light strip Red flashing: There are incoming call. Red, steady: Missed Calls, or phone busy; Hands-free Sounds input when hands-free microphone Figure 3.2 Interfaces of SayHi ES330-PEG (NOTE: 330 support expansion, that it has an EXT port) www.escene.cn/en/ Escene Communication...

  • Page 10: Understanding Phone Screen Features

    PC port Connect to a local PC 3.2 Understanding Phone Screen Features This is what your main phone screen might look like: Figure 3.3 LCD for example is 330 (NOTE: 320 just only have two lines). ② www.escene.cn/en/ Escene Communication...

  • Page 11: Basic Call Handling

    If you want to... Then... Place a call using the Pick up the handset 1) You can hear the dial tone. handset ； 2) The first line light is 3) Enter a number. Place call using Press Speaker, www.escene.cn/en/ Escene Communication...

  • Page 12: Answering A Call

    3) Your phone answers incoming calls automatically after a few rings 4.3 Ending a Call To end a call, hang up. Here are some more details. If you want to... Then... Hang while using Return the handset to its cradle, www.escene.cn/en/ Escene Communication...

  • Page 13: Using Hold And Resume (Switch Calling Line)

    (Blind transfer) -or press , then transfer the call. -or wait five seconds(default)then transfer the call Blind transfer to the 1) Press TRANSFER button or press XFER. held line 2) Press the Line button of held line www.escene.cn/en/ Escene Communication...

  • Page 14: Using Mute

    2) Press CONFERENCE button, -or Press "CONF" Soft key 3) press the held line's programmable button, the 3-way Conference will establish 4.9 Expansion Installation Expansion support list. Pls make sure your model is support or not. www.escene.cn/en/ Escene Communication...

  • Page 15: Expansion Settings

    Then... 1) Press MENU or OK button > “Function setting” > “VoIP call forwarding”. Unconditional transfer 2)select “unconditional transfer”, select enable. 3)input number which you want to transfer, when have a call in, it will unconditional transfer. www.escene.cn/en/ Escene Communication...
  • Page 16 1) Press MENU or OK button > “Function setting” > “VoIP call forwarding”. 2)select “no answer transfer”, select enable. No answer transfers 3) input number which you want to transfer, when have a call in but you don’t have time to answer, it will transfer. www.escene.cn/en/ Escene Communication...

  • Page 17: Advanced Call Handling

    You can store a large number of contacts in your phone's directory. You can add, edit, delete, dial, or search for a contact in this directory. However, it only can configure the phone book on web page in ES330-PEG. For details, you can refer to 7. Web Settings.

  • Page 18: Using Call Logs

    2) Use the navigation keys to view the call record information. Please refer to the previous part 4. Basic call handing – Placing a call. Dial from a call log Tips: Each call log store up to 20 entries on ES330-PEG IP phone. www.escene.cn/en/ Escene Communication...

  • Page 19: Keypad Instruction

    6.1 SIP Account Settings ES330-PEG IP PHONE make calls based on sip accounts, ES330-PEG IP phones can support 2 or 3 independent SIP account, each account can be configured to different SIP server. If you want to…...

  • Page 20: Load Default Settings

    Can check the expansion, if your phone support this feature. 6.7 Diagnose If you want to check the phone hardware function,Press MENU button > “diagnose” ,or press OK button > “diagnose”, you can check the phone item as below. www.nolto.com Escene Communication...
  • Page 21 If you want to ..Then ..Keys You can check the phone keys Press ’OK’ to start, press ’C’ to exit Press ’OK’ to start, press ’C’ to exit Lights Press ’OK’ to start Sound www.nolto.com Escene Communication...

  • Page 22: Web Settings

    (e.g. HTTP://192.168.0.10 or 192.168.0.10) in the address bar of web browser on your PC. The default username is root (case-sensitive) and the password is root (case-sensitive). NOTE: Here use the example with 320.All of the other ES330-PEG IP PHONE was looks like as below. Main Interface-Phone Status...
  • Page 23 ES330-PEG IP Phone Basic ITEM DESCRIPTION Network Connection Mode Network Connection Mode has DHCP, Static IP, PPPoE. DNS Settings Select the DNS mode that you want. www.nolto.com Escene Communication...
  • Page 24 ES330-PEG IP Phone Advanced ITEM DESCRIPTION Port Management Settings HTTP Port The default web port is 80, if you want to change it (for example change it to88), You must input IP and Web port to login the web page(for example HTTP://192.168.0.200:88).

  • Page 25: Pc Port

    ES330-PEG IP Phone highest priority) Paging1 Enable/Disable Paging feature. Group IP and Port Group IP and Port with Paging. 7.1.2 PC Port Normally choose Bridge, if you choose Router, you need to input router IP address, net mask. Bridge Normally, you should choose “bridge” feature, it means that pc port and LAN port will share the same network.
  • Page 26 ES330-PEG IP Phone VPN Password A password be used for authentication OPEN VPN Upload the *.ovpn file to the phone VLAN Setting When using VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable VLAN for phone and pc...

  • Page 27: Sip Account

    ES330-PEG IP Phone 8 SIP Account 8.1Basic Choose one Account, you will find the following parameters: ITEM DECSRIPTION Enable You can choose on/off to enable/disable the line. Account Mode You can choose VOIP/PSTN, but this model nonsupport PSTN, if you need, Pls contact us to buy another model that can supports PSTN.

  • Page 28: Call

    ES330-PEG IP Phone SIP Server Server for registration, provided by administrator Secondary server When the main server can't work, it also can register in this secondary server. Outbound Proxy Server Put into the address with the outbound proxy server. Secondary Outbound Proxy When the main out bound server can't work, it also can use this secondary server.

  • Page 29: Security

    ES330-PEG IP Phone Session Timer The refresh session time interval. Call Method This method includes SIP and TEL. DNS-SRV Enable/Disable DNS-SRV. Allow-events Enable/Disable Allow-events. Registered NAT Enable/Disable Registered to NAT UDP Keep-alive Message The phone periodically sends a UDP packet to keep the port active and to avoid the server...

  • Page 30: Time Settings

    ES330-PEG IP Phone ITEM DECSRIPTION Basic Back Light The backlight of the phone LCD. Keyboard Lock Enable/Disable keyboard lock, you can lock: MENU Key, FUNCTION Key., ALL Keys, LOCK all keys but auto Answer. Hot Line function When you pick up the handset, it will dial out with the hot number.

  • Page 31: Call

    ES330-PEG IP Phone Day Light Saving Time Enable/disable the DST for the phone Time Format You can use 24-hour time format or 12-hour time format Date Format You can choose the appropriate time format. Time Zone-GMT You can select different time zone for the phone Manual Setting Setting time manually.

  • Page 32: Voip Call Forward

    ES330-PEG IP Phone Play Voice Mail Tone Open this feature, it will be ringing when it gets message. Miss Call Display Turn on or off the display with Miss call in the phone LCD. DND Soft key Enable/Disable the DND feature.

  • Page 33: Advanced

    ES330-PEG IP Phone SIP QoS The range is 0~63, default is 26 Voice QoS The range is 0~63, default is 46 9.2 Advanced 9.2 Audio ITEM DECSRIPTION Audio Audio Codecs Select the audio codecs what you want. Jitter Buffer It is a shared data area where voice packets can be collected, stored, and sent to the voice processor evenly.
  • Page 34 ES330-PEG IP Phone ITEM DECSRIPTION Basic Select Country Select the country dial tone. Default is United States. Ring Volume The ring volume default is Lv3, the range is 0~9. Handset Volume The handset volume default is Lv5, the range is 1~9.

  • Page 35: Line Keys

    ES330-PEG IP Phone press the to move to the other list. Jitter Buffer Type The type of Jitter Buffer is Adaptive or Fixed, default is adaptive. Min Delay The min delay range setting, default is 60. Max Delay The max delay range setting, default is 150.

  • Page 36: Function Keys

    ES330-PEG IP Phone 9.4 Function Keys Function Keys: If you do not like the default setting with the function keys feature. You can change to whatever you like. NOTE: IF THE PHONE WITHOUT THE KEY, YOU CAN IGNORE IT. 9.5 Soft Key Soft Keys: Soft key is the key with below display in the LCD.

  • Page 37: Ip Strategy

    ES330-PEG IP Phone ITEM DECSRIPTION Send Key Select the default send key mode you want to use. Dial Length Enable this feature will limit the dial length. Default is 25. No Dial Timeout Setting the range with no dial timeout, default is 5.

  • Page 38: Phone Book

    ES330-PEG IP Phone 10 Phone Book The phone book including Group, Contact, LDAP and Ban list, please review the following for more details: 10.1 Group You can add, edit and delete group in a phone book on this web page.

  • Page 39: Ldap

    You can download and save this contact to PC after you select 10.3 LDAP NOTES: If you want to know more detail about LDAP, pls find it in the office website to download the specific document. HTTP://www.escene.cn/en. As below figure is an example. e.g. LDAP Name Filter:(sn=%s) LDAP Number Filter:(telephoneNumber=%s) Server Address:192.168.0.65...

  • Page 40: Ban List

    ES330-PEG IP Phone 10.4 Ban List You can add, edit and delete contact in a Ban List on this web page. If you want to add a Ban List, you just ought to click ‘Add Ban List’. You can edit an existed Ban List by click , if you want to delete all Ban List, you just ought to click ’Delete All Ban List’.

  • Page 41: Ftp Upgrade

    ES330-PEG IP Phone When using HTTP upgrade, you can set several parameters as follow: HTTP Upgrade Select a File Browse the software/kernel/configuration file which you need to upgrade from HTTP Software Upgrade Used for upgrading the software of the phone...

  • Page 42: Tftp Upgrade

    ES330-PEG IP Phone Configuration Used for updating/backup to update/backup the configure file of the phone Phone Book Used for updating/backup to update/back up the phonebook of the phone EXT Module Used for updating/backup the expansion of the phone NOTES: It's not necessary to input filename when doing backup Configuration, Phone Book, EXT Module.

  • Page 43: Advanced

    ES330-PEG IP Phone 11.2 Advanced 11.2.1 Log This feature is use for the administrator to manage the equipment, like debugging, SIP etc., If you need to catch a debugging Level, you need to setup on this interface. 11.2.2 Auto Provision When you open this auto provision feature, the phone will do auto provision after it detect a different software or kernel (Higher or Lower) which are putted on the TFTP, HTTP, HTTPS, FTP, server.
  • Page 44 ES330-PEG IP Phone When using auto provision, you can set several parameters as follow: Auto Provision Auto Provision You can enable/disable auto provision by select on/off Protocol Used for auto provision, it includes TFTP/HTTP/FTP Software Server URL The server address of the auto provision...

  • Page 45: Password

    ES330-PEG IP Phone AES Key The key of the AES Auto Provision Now Used for doing auto provision immediately 12 Password Here you can set the administrator or user WEB password management. Select your type. If you login as an administrator, you can modify both the user's and admin's passwords.
  • Page 46 ES330-PEG IP Phone www.nolto.com Escene Communication...
