1.1 Description
Key Features
•
•
•
1.1

Description

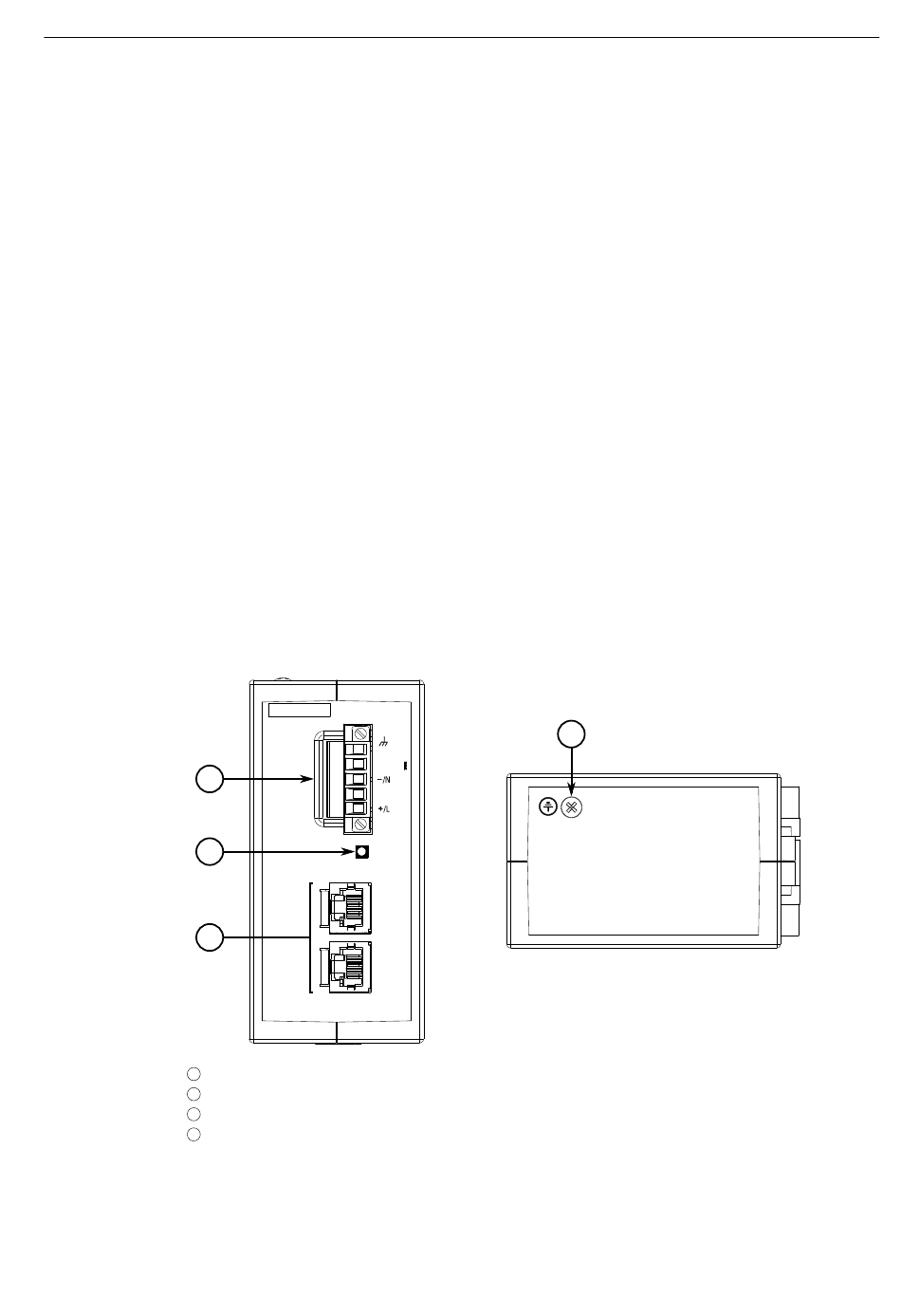

The RUGGEDCOM RP100 features various ports, controls and indicator LEDs on the
front panel for connecting, configuring and troubleshooting the device.
1
2
3
1
2
3
4
Figure 1.1
2
Substation Rated:
• IEC 61850-3
• IEEE 1613
• -40 to 85 °C (-40 to 185 °F) operating (no fans)
Industrial Design:
• Panel or DIN mounting
• Lightweight Cast Aluminum Enclosure
Performance:
• Configuration free, plug and play operation
• IEEE 802.3at/af-compliant or RM version for connection to RUGGEDCOM WiN
products
• Rated up to 36 W at 24 V+ input (RP100-LO_RM Only)
Power Supply Terminal Block
POWER LED
Copper Ethernet Ports
Chassis Ground Terminal
RUGGEDCOM RP100
4
