Introduction
1.2 Description
•
•
Power Supply
•
•
•
•
•
1.2

Description

The RUGGEDCOM RS900 features various ports, controls and indicator LEDs on the
front panel for connecting, configuring and troubleshooting the device.
1
2
3
4
5
1
2
3
4
5
6
7
8
9

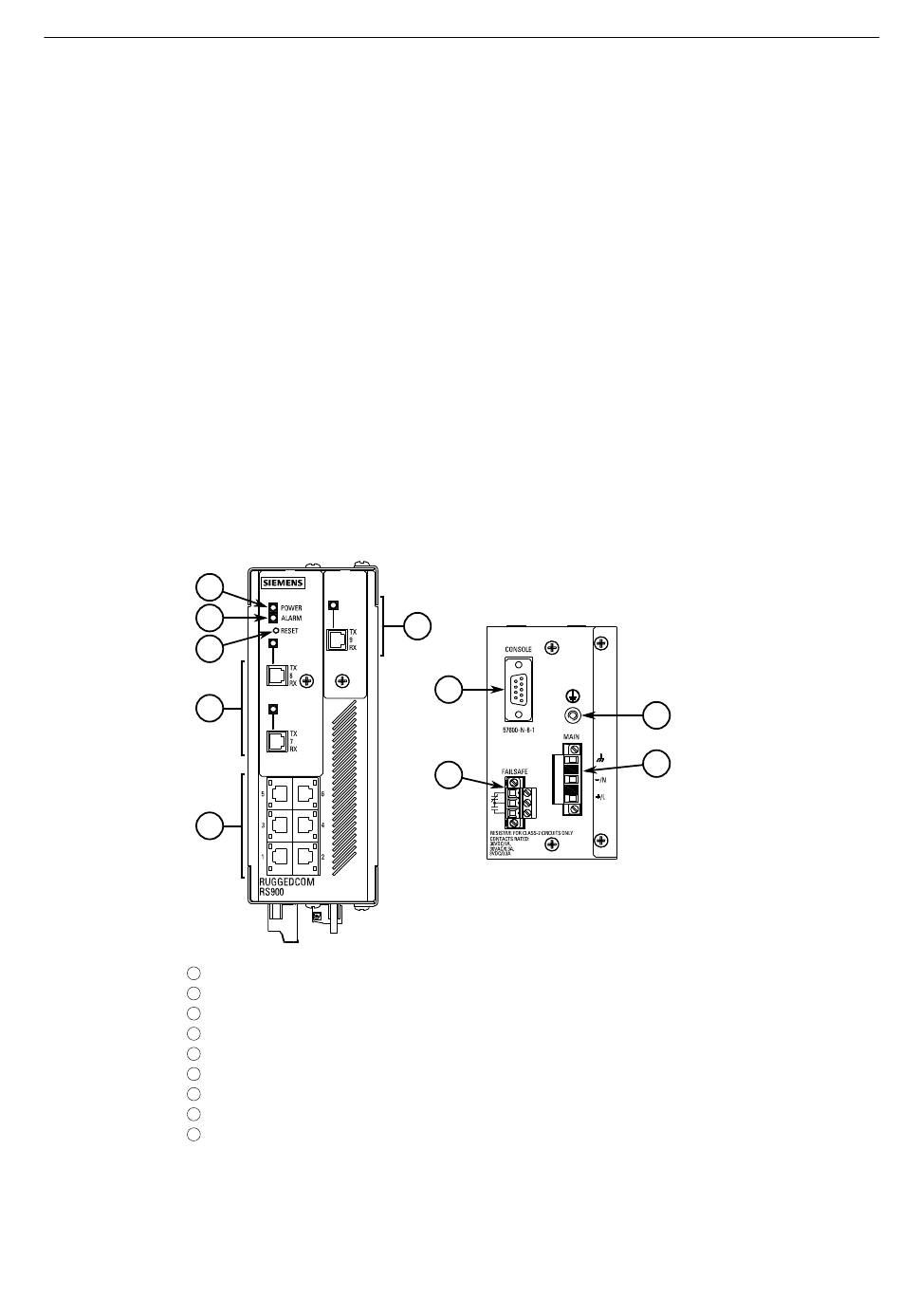

Figure 1.1
2
DIN or panel mounting options provide secure mechanical reliability
[Optional] Conformal coated printed circuit boards
Fully integrated power supply
Universal high-voltage range: 88-300 VDC or 85-264 VAC
Dual LO DC inputs: 24 or 48 VDC
Terminal blocks for reliable maintenance free connections
CSA/UL 62368-1 safety approved to 85 °C (185 °F)
POWER LED
ALARM LED
RESET Button
[Optional] Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
Copper (10/100Base-TX) Ethernet Ports
RS232 Console Port (Serial)
Failsafe Alarm Relay
Chassis Ground Connection
Power Supply Terminal Block
RUGGEDCOM RS900
4
6
7
8
9
RUGGEDCOM RS900
Equipment Manual, 11/2023, C79000-G8976-1024-16
