Install Side and Roof Panels

Lay out all side and roof panels in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.

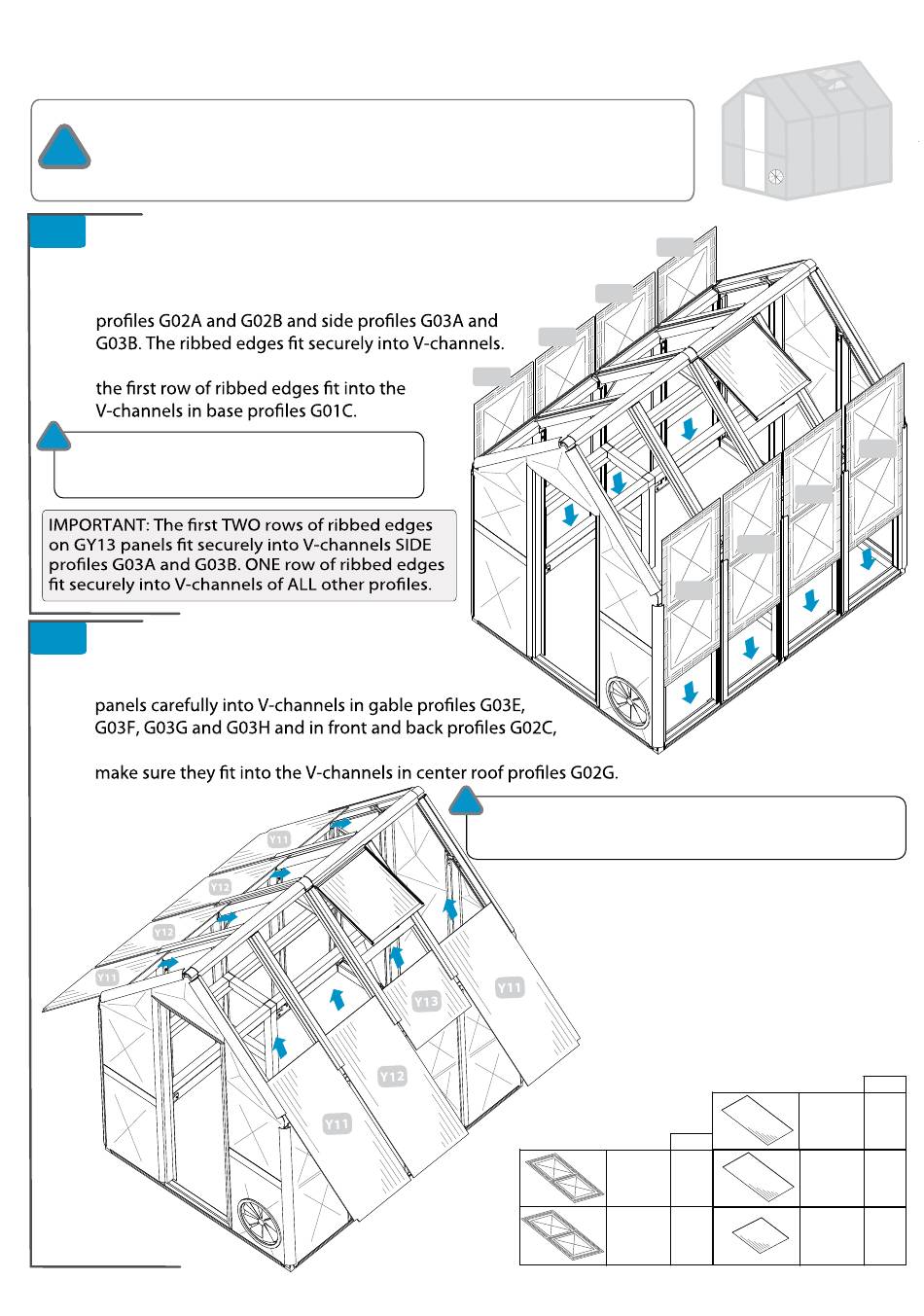

12.1
Remove protective plastic from both sides of panels GY12 and GY13.
The clear panels are designed with window shapes that curve
outward. Place the outward curved side facing out when
installing. Slide panels carefully into V-channels in corner
As you continue sliding the panels make sure
!
Remove protective plastic from EACH side of clear
panels before installing. Dispose of plastic properly.
Install with outward curved side FACING OUT.
12.2
Remove protective plastic from both sides
of panels Y11, Y12 and Y13. Place side to face
toward the sun facing out when installing. Slide
G02D, G02E and G02F. As you continue sliding the panels
www.stcny.com
GY13
GY13
GY12
!
Remove protective plastic from EACH side of polycarbonate
twin panels before installing. Dispose of plastic properly. Install
with side labeled "Face this side towards the sun" FACING OUT.
Clear Panel
44 of 50
GY12
GY13
GY12
Twin Panel
QTY
#GY12 4
#GY13 4
GY12
GY13
QTY
#Y11 4
#Y12 3
#Y13 1
