STC Clear View Assembly Instructions Manual page 29
6’ x 8’ greenhouse
Hide thumbs
Also See for Clear View:
- Assembly instructions manual (54 pages) ,
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (61 pages)
Table of Contents
Advertisement
4.8A

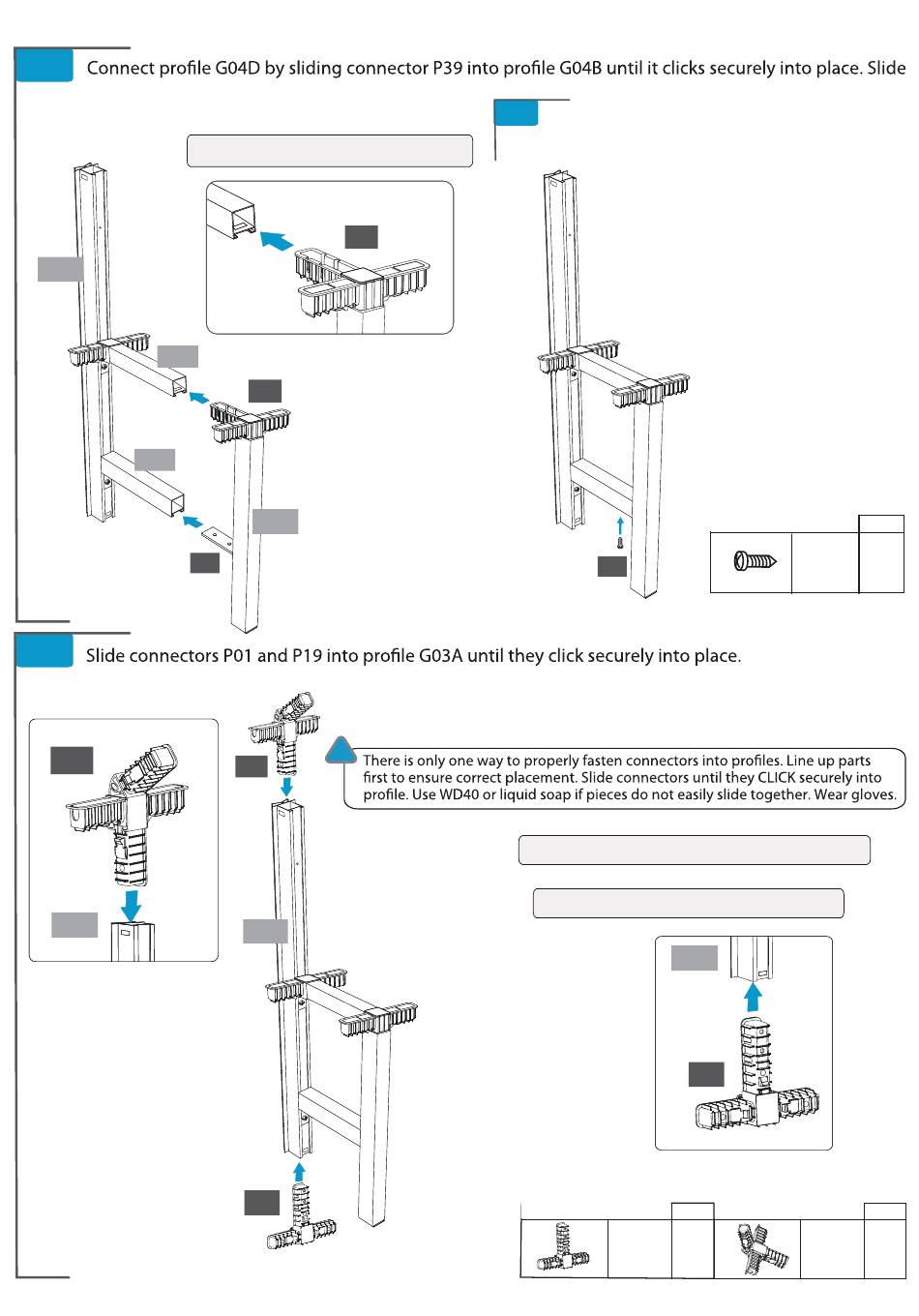

connector S01 into channel of G04C.
4.8B
Secure with S02 screw. Repeat to
make two sets.
Connector P39 CLICKS into place.
P39
G03A
G04B
P39
G04C
G04D
Screw
QTY
#S02
2
S01
S02
4.9
Repeat to make two sets.
!
P19
P19
Connectors P01 and P19 CLICK into place.
NOTE: ALL VIEWS ARE FROM INSIDE.
G03A
G03A
G03A
P01
P01
Connector
Connector
QTY
QTY
#P01
2
#P19
2
www.stcny.com
27 of 50
