STC Clear View Assembly Instructions Manual page 41
6’ x 8’ greenhouse
Hide thumbs
Also See for Clear View:
- Assembly instructions manual (54 pages) ,
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (61 pages)
Table of Contents
Advertisement
9.7A
From inside of greenhouse secure S20 connectors
G03E
S20
S02
G03F
S20
S02
VIEWS FROM INSIDE.
9.8A

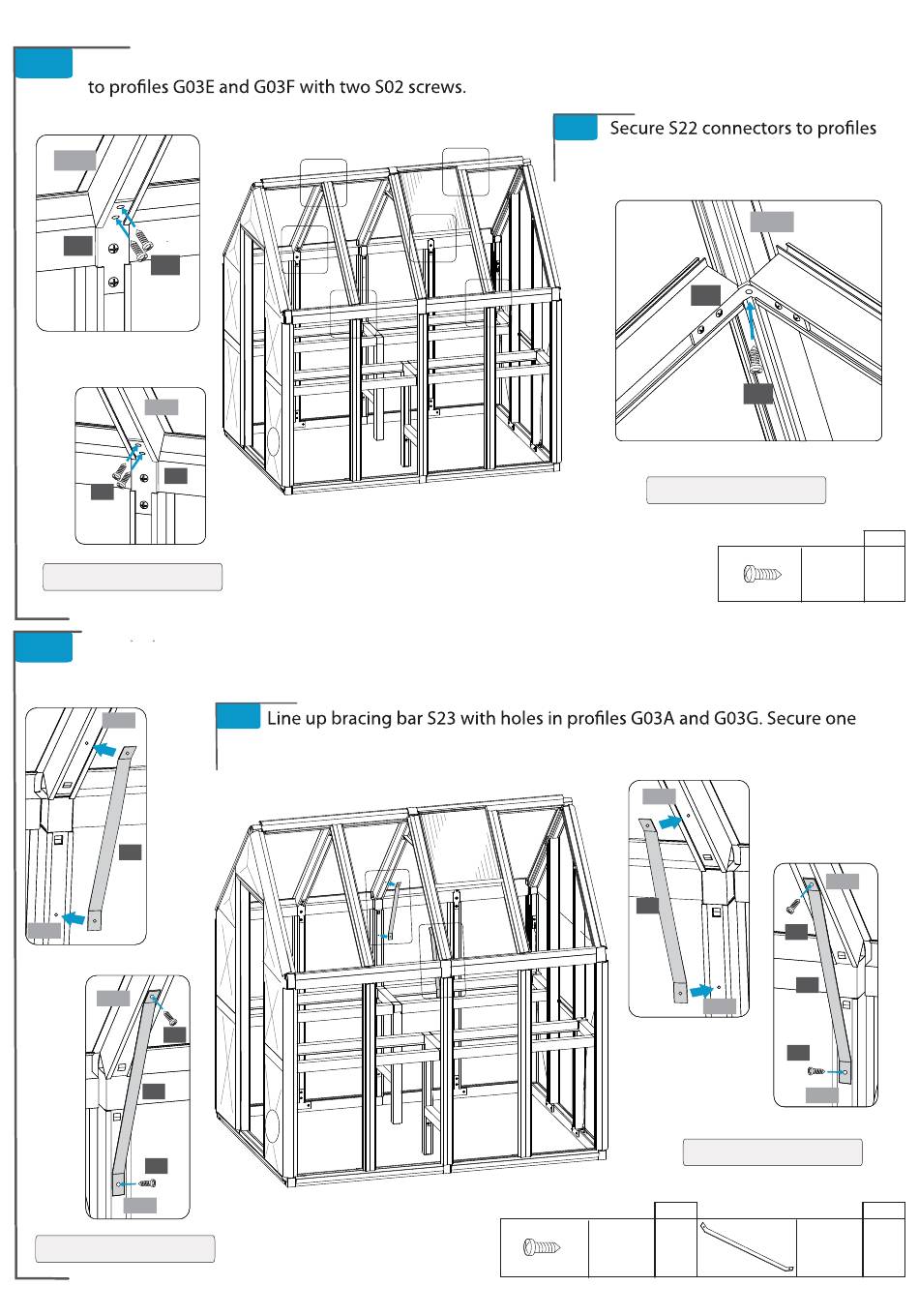

From inside of greenhouse, line up bracing profile bar S23 with holes in profiles G03A and G03H. Secure
one S02 screw partially into each end. Then go back and tighten both screws.
G03H
S23
G03A
G03H
S02
S23
S02
G03A
VIEWS FROM INSIDE.
www.stcny.com
9.8B
S02 screw partially into each end. Tighten both screws.
9.7B
Screw
39 of 50
G02G with one S02 screw.
G02G
S22
S02
VIEWS FROM INSIDE.
Screw
G03G
S23
G03A
VIEWS FROM INSIDE.
Brace
QTY
#S02
4
QTY
#S02
10
G03G
S02
S23
S02
G03A
QTY
#S23
2
