STC Clear View Assembly Instructions Manual page 24
6’ x 8’ greenhouse
Hide thumbs
Also See for Clear View:
- Assembly instructions manual (54 pages) ,
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (61 pages)
Table of Contents
Advertisement
3.9

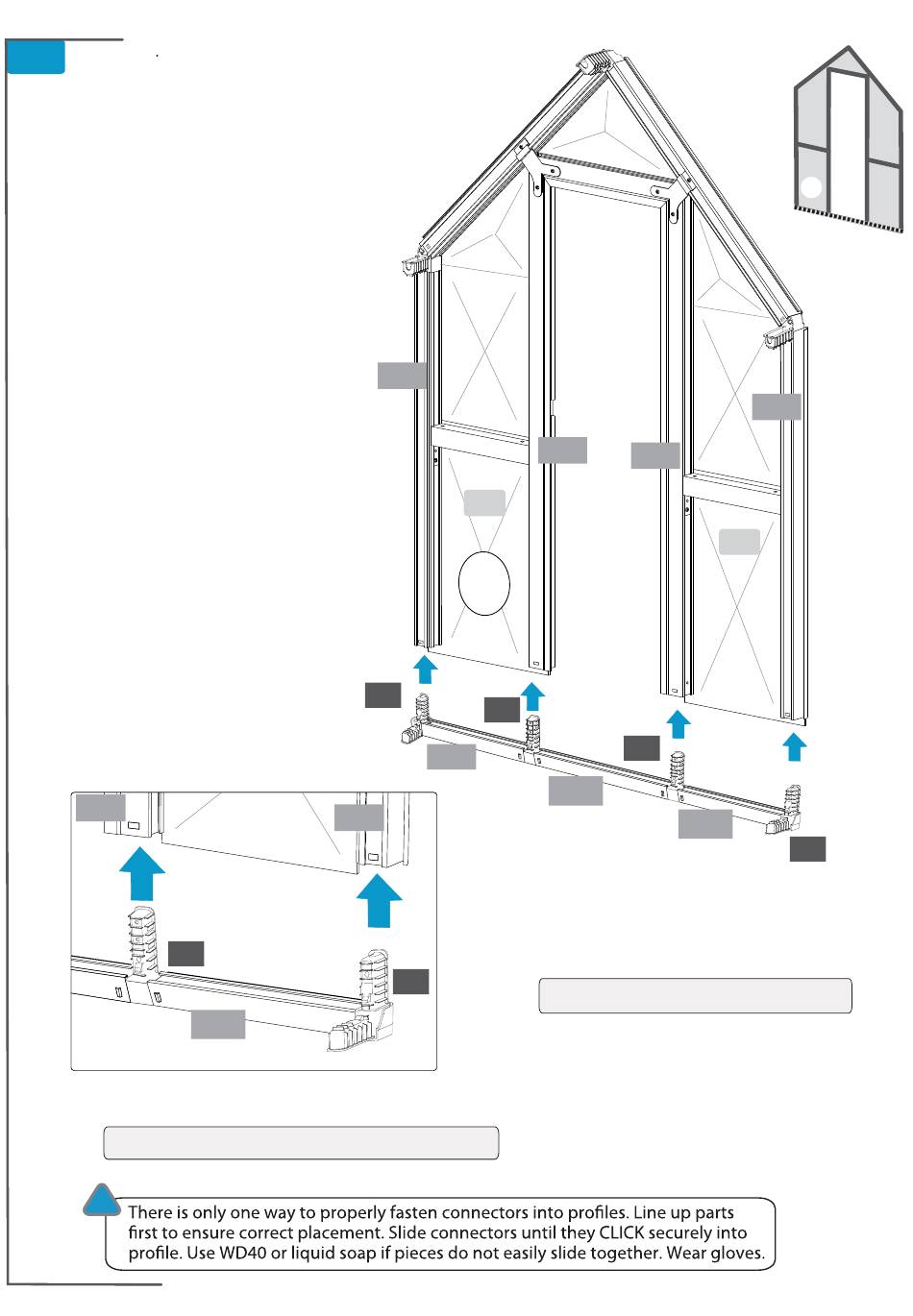

As you slide bottom profiles G01M, G01N and G01Q half
way into place, carefully line up P01 connectors with
G06K and G06A and P04 and P05 connectors with
profiles G02B and G02A. Continue sliding,
Making sure panels GY1 and GY9 fit
into V-channels. Snap connectors
P01, P04 and P05 securely into profiles.
G06A
P01
Connectors P01, P04 and P05 CLICK into place.
!
www.stcny.com
G02A
G01N
G02B
GY9
P04
P01
G01M
P05
22 of 50
G06B
G06A
P01
G01Q
G01N
NOTE: ALL VIEWS ARE FROM INSIDE.
G02A
GY1
P05
