STC Clear View Assembly Instructions Manual page 50
6’ x 8’ greenhouse
Hide thumbs
Also See for Clear View:
- Assembly instructions manual (54 pages) ,
- Assembly instructions manual (15 pages) ,
- Assembly instructions manual (61 pages)
Table of Contents
Advertisement
14.2A

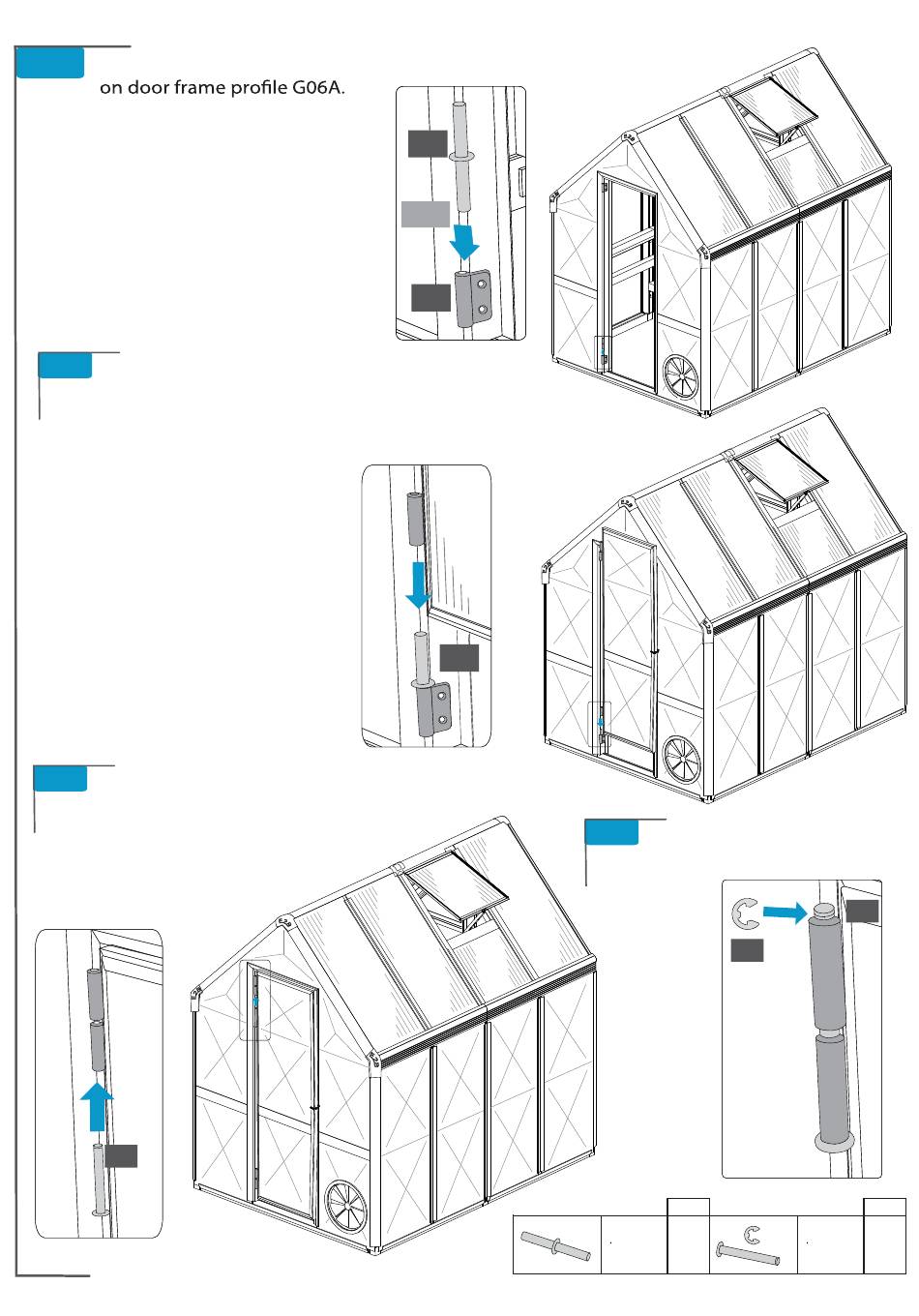

Place S49 pin in bottom door hinge
14.2B
From the outside of the greenhouse, carefully
line up hinge on bottom of DOOR 3G with S49 pin on
door frame. Lower door onto pin until hinges meet.
Push top door back towards door frame so top hinges line up.
14.2C
Line up top door hinge with top door
frame hinge. From bottom of hinges,
slide S51 pin through both hinges.
S51
www.stcny.com
S49
G06A
P30
S49
Pin
48 of 50
14.2D
Secure pin in place with S50
lock washer as shown.
S50
Lock Washer/Pin
QTY
#S49
1
S51
QTY
#S50
1
#S51
1
