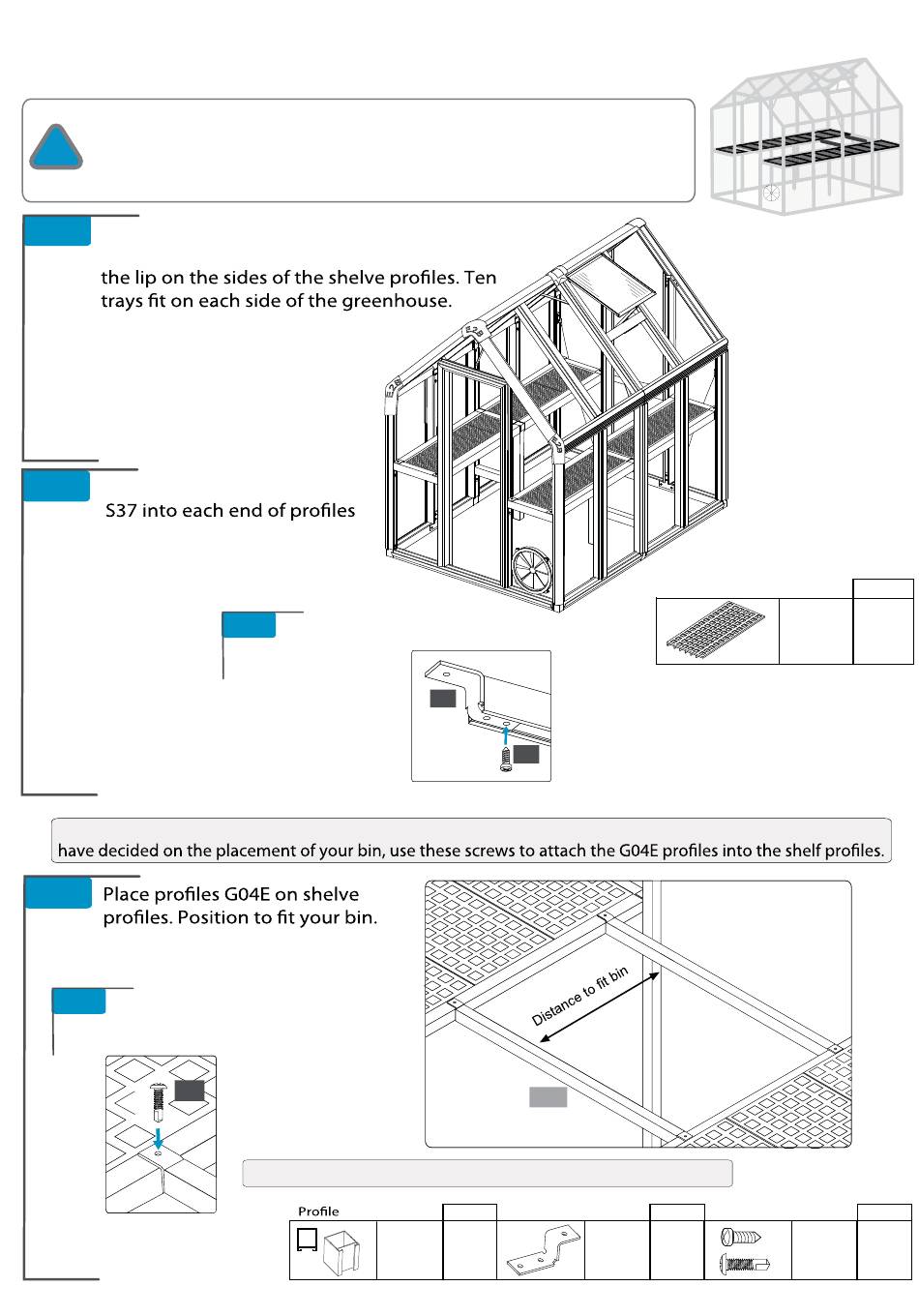

Install Trays and Bin Holder

Lay out all the parts for the trays and bin holder in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
16.1
From the inside of the geenhouse, place the trays on the
shelves. The trays interlock together and rest on
16.2A
Slide long side of connector
G04E, lining up the last hole
on the connector with the
hole in the channel.
IMPORTANT: S36 are self tapping screws used to screw into areas that do not have predrilled holes. When you
16.3A
16.3B
Secure each connector with
one S36 screw.
S36
www.stcny.com
16.2B
Secure each S37 connector with
one S02 screw.
NOTE: A cordless drill with a phillips head bit is recommended.
#G04E
S37
S02
G04E
Connector
QTY
2 #S37
50 of 50
Trays
#J05
L04E
Screw
QTY
#S02
4
#S36
QTY
20
QTY
4
4
