STC Clear View Assembly Instructions Manual page 17

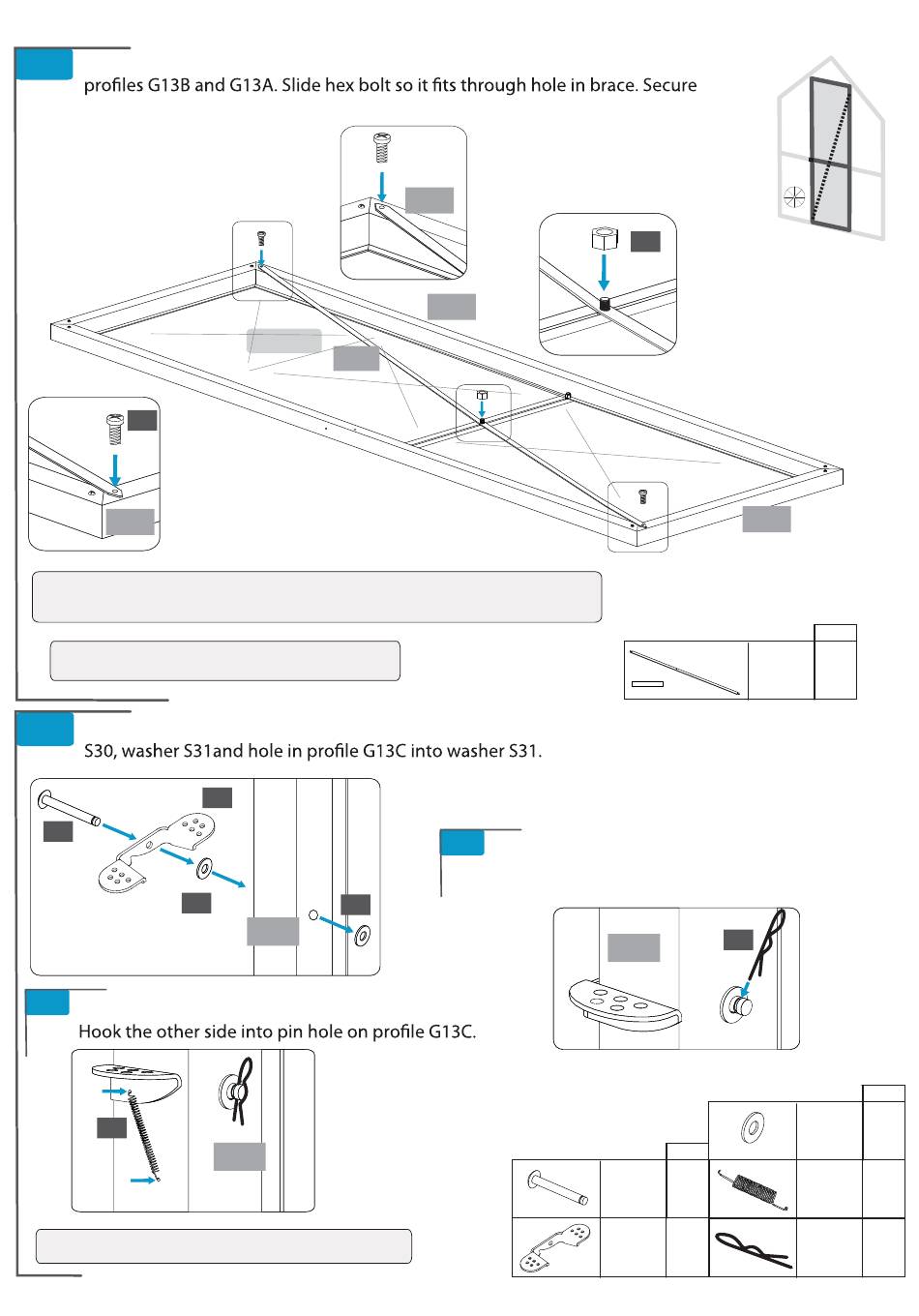

2.2
Place brace G15A onto DOOR 3G lining up the holes on each end with the holes in
brace with two S52 screws and S14 hex nut.
S52
G13A
IMPORTANT: The hole for hex bolt is not at the midpoint of brace. Turn
brace until all holes line up. Brace will dip slightly when hex bolt is secured.
NOTE: ALL VIEWS ARE FROM INSIDE.
2.3A
Open door handle kit and remove parts. Slide pin S29 through handle
S29
S31
2.3C
Hook one side of spring S33 into hole on handle S30.
S33
NOTE: Connectors packaged as Door Handle Kit.
www.stcny.com
DOOR 3G
G15A
S30
S31
G13C
G13C
G13B
G13B
2.3B
Slide hairpin clip S44 into groove on pin S29 to
hold securely in place.
Connector
15 of 50
S14
G13A
Brace
#G15A
S44
G13C
Connector
QTY
#S29 1
#S30 1
QTY
1
QTY
#S31
2
#S33 1
#S44 1
