Install Circular Vent

Lay out all the parts for circular vent in a staging area.
Make sure the pieces are in the correct positions before assembling.
!
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.

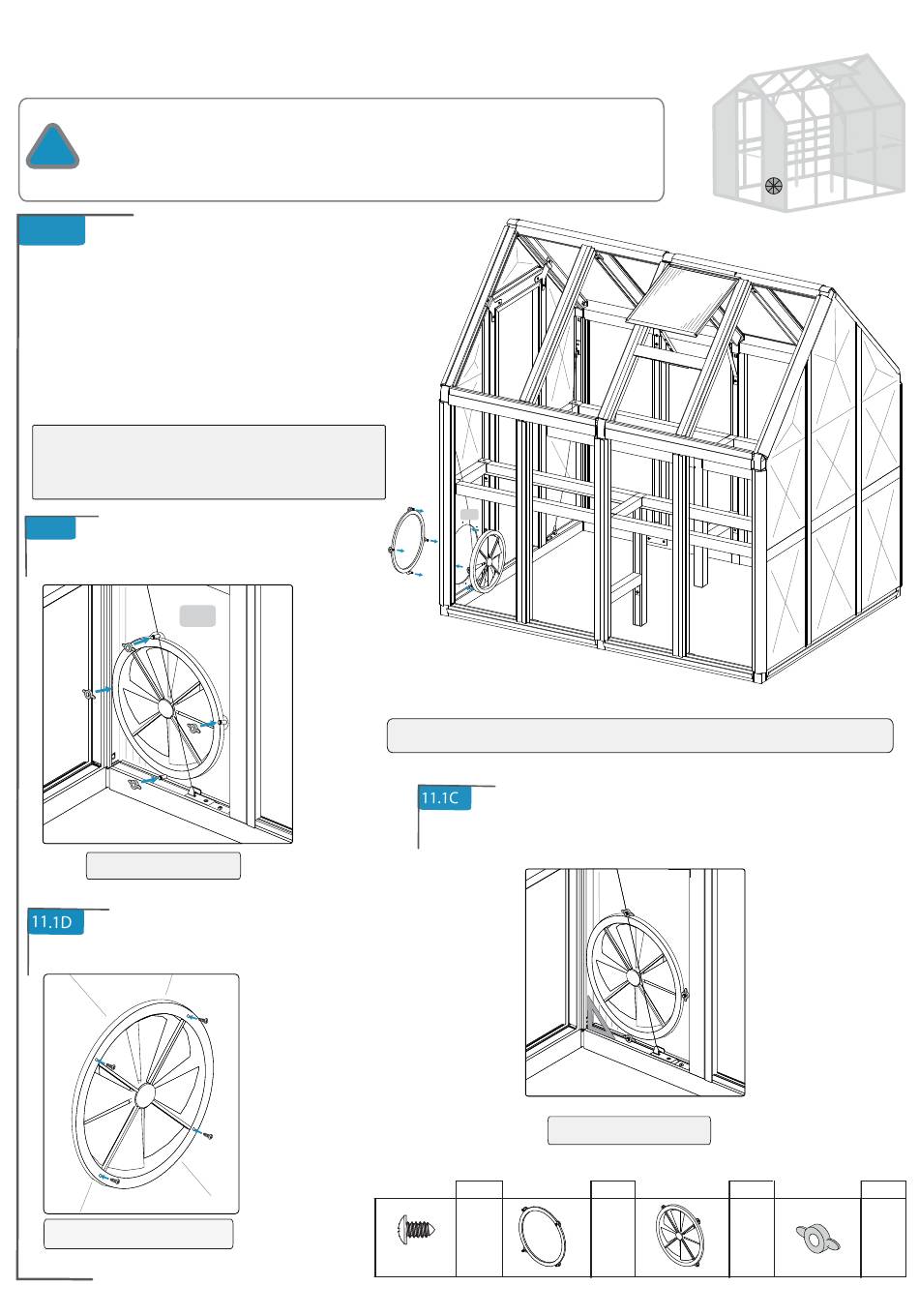

11.1A
Open the box containing the parts for the circular
vent. From the outside of the greenhouse, line
up vent frame pins with holes in panel GY9,
and slide into place. From the inside of the
greenhouse, slide circular vent under the
cable. Line up pins in vent frame with
holes in vent fan and slide into place.
IMPORTANT: Circular vent rests under the
bracing cable. See step 3.10 for detailed
instructions on adjusting the cables.
11.1B
From the inside, secure the
vent with four plastic nuts.
GY9
VIEW FROM INSIDE.
From outside, screw four S43
screws into holes in vent frame.
VIEW FROM OUTSIDE.
www.stcny.com
GY9
IMPORTANT: Make sure all corners are squared at 90 degrees.
Double check that the corners are squared at 90
degrees and adjust if necessary. See step 3.10 for
detailed instructions.
Screw Vent Frame
QTY
4
#S43
43 of 51
VIEW FROM INSIDE.
Circular Vent
QTY
1
Plastic Nuts
QTY QTY
1 4
