8.4.3.2 General diagnostics
Siemens AG 6SE7087-6KP50
SIMOVERT MASTERDRIVES
Via the Diagnostics
opens. This window gives a general overview of the active warnings
and faults and their history. Both the warning and the fault number as
well as plain text are displayed.

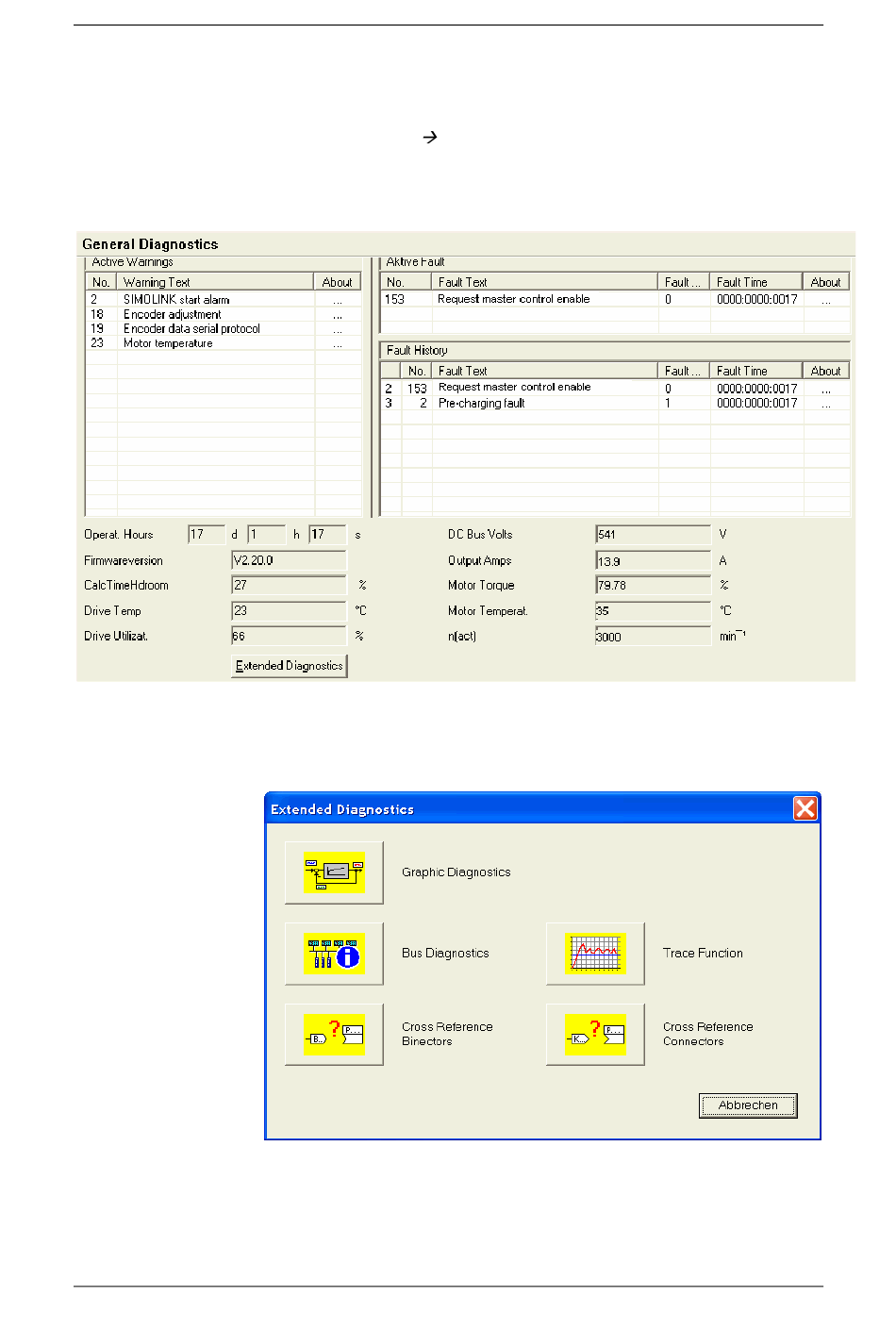

Fig. 8-15 General diagnostics
Via the Extended Diagnostics button you can reach the next
diagnostics window.
Fig. 8-16 Extended diagnostics
