Description - Siemens Simovert Masterdrives Compact Plus Series Operating Instructions Manual

02.2005
2

Description

Range of application
Optional
boards
C / L+
D / L -
DC link
fuse
PE3
Siemens AG 6SE7087-6KP50
SIMOVERT MASTERDRIVES
The inverter is a power electronics component for feeding highly
dynamic three-phase drives in the output range from 0.75 kW to 37 kW.
The unit can be operated from a DC system with voltages from 510 V to
650 V.
The inverter enables a three-phase system with a variable output
frequency between 0 Hz and 400 Hz to be generated from the DC link
voltage with the pulse width modulation method (PWM).
The unit is controlled by the internal closed-loop control electronics
which consists of a microprocessor and a digital signal processor
(DSP). The functions are provided by the unit software.
The unit can be operated via the PMU operator control panel, the user-
friendly OP1S operator control panel, the terminal strip or via the bus
system. For this purpose, the unit has a number of interfaces and three
slots for the use of optional boards.
Resolvers, encoders, pulse encoders and multiturn encoders can be
used as encoders on the motor.
Terminal strip
Control electronics

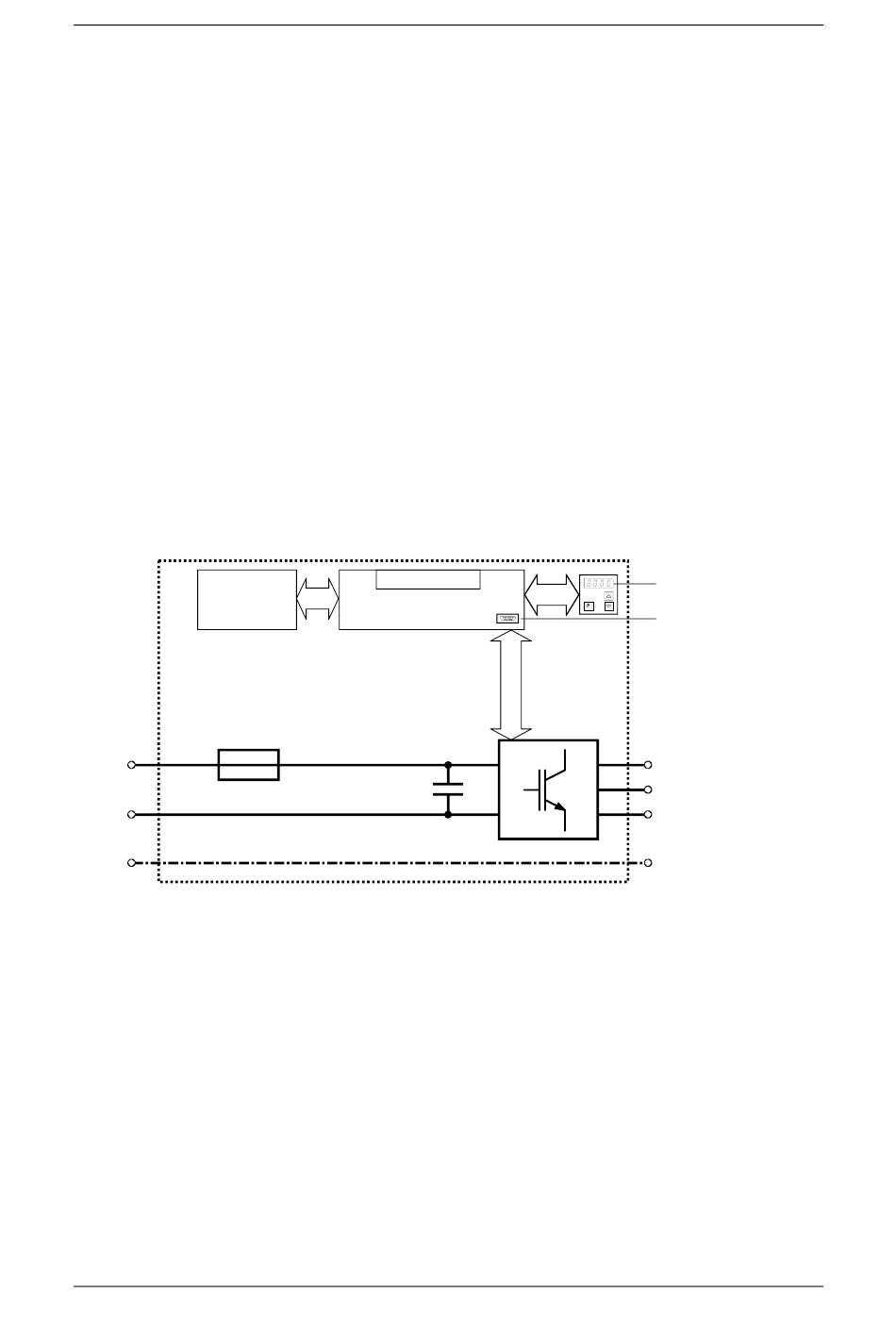

Fig. 2-1 Circuit principle of the inverter
Operating Instructions
DC
link
Inverter
Description
PMU
Serial
interface
U2/T1
Motor
V2/T2
terminals
W2/T3
PE2
2-1
