Rear Panel Components
The rear panel components of the library are used to install, configure, and repair the
library; they include:
•Power entry module (includes fuse, power switch, and power cable connector)
•Serial diagnostic port
•Library internal SCSI ID switch (Library)
•Library configuration switch (Config.)
•Fibre Channel or Ethernet port
•Drive access panel and fan
Caution:
Do not change the settings on the library configuration switch,
or the Fibre Channel/Ethernet port.
Power entry
module
Library internal
SCSI ID switch
Library
configuration
switch

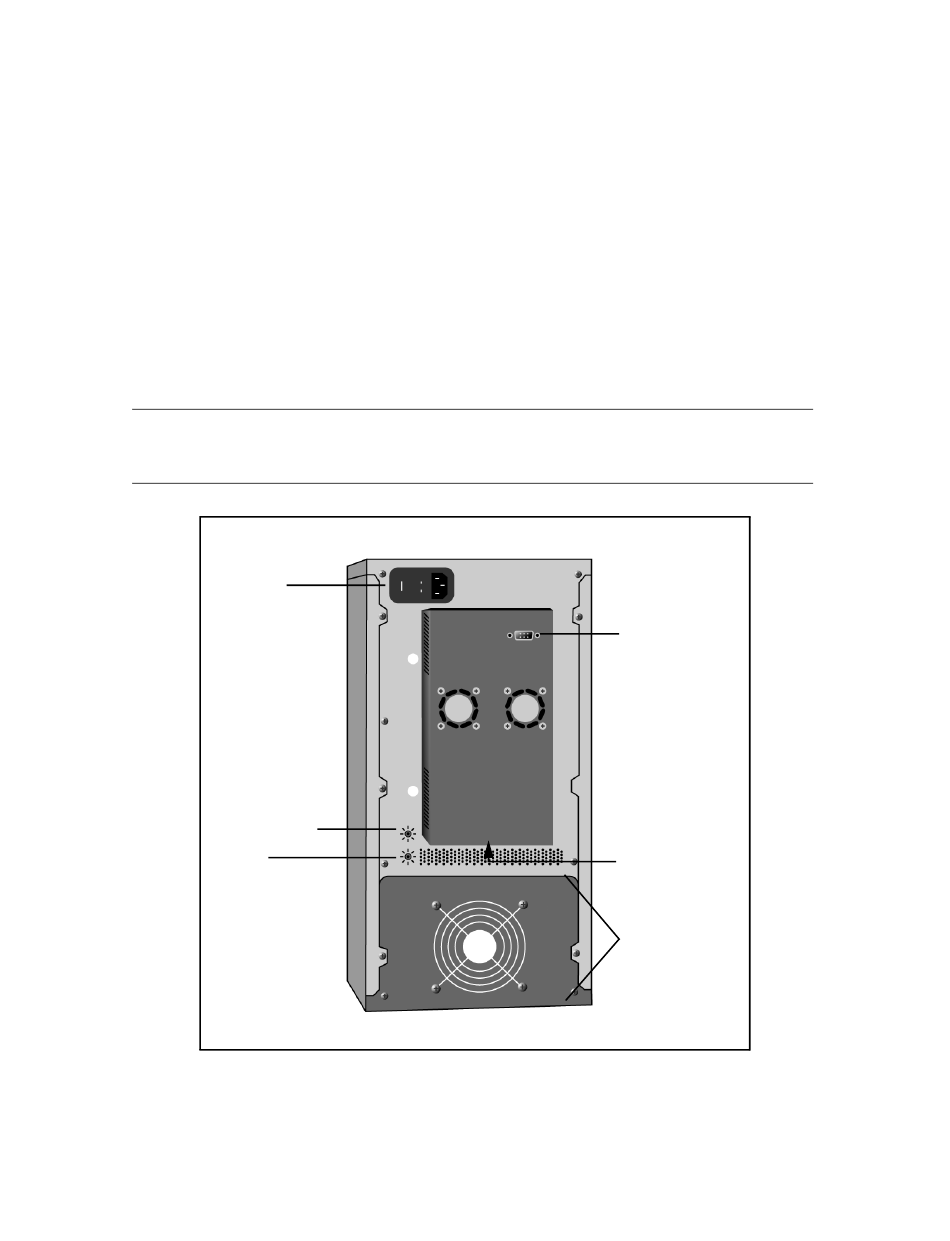

Figure 3-3 The rear panel of the library.
Chapter 3. Using the Spectra 2K Library
19
Serial diagnostoc
port
Fibre Channel or
Ethernet port
(on bottom side
of panel)
Drive access panel
and fan
