Chapter 1 Overview of Cisco 4000 Series ISRs

Cisco 4461 ISR Chassis

Cisco 4461 ISR routers support these slot types:
- Network Interface Modules (NIMs)
- Service modules (SM-X, like SM-X-1T3/E3)
- E-Series Server Modules
Figure 1-1
1
3
5
OL-32185-02

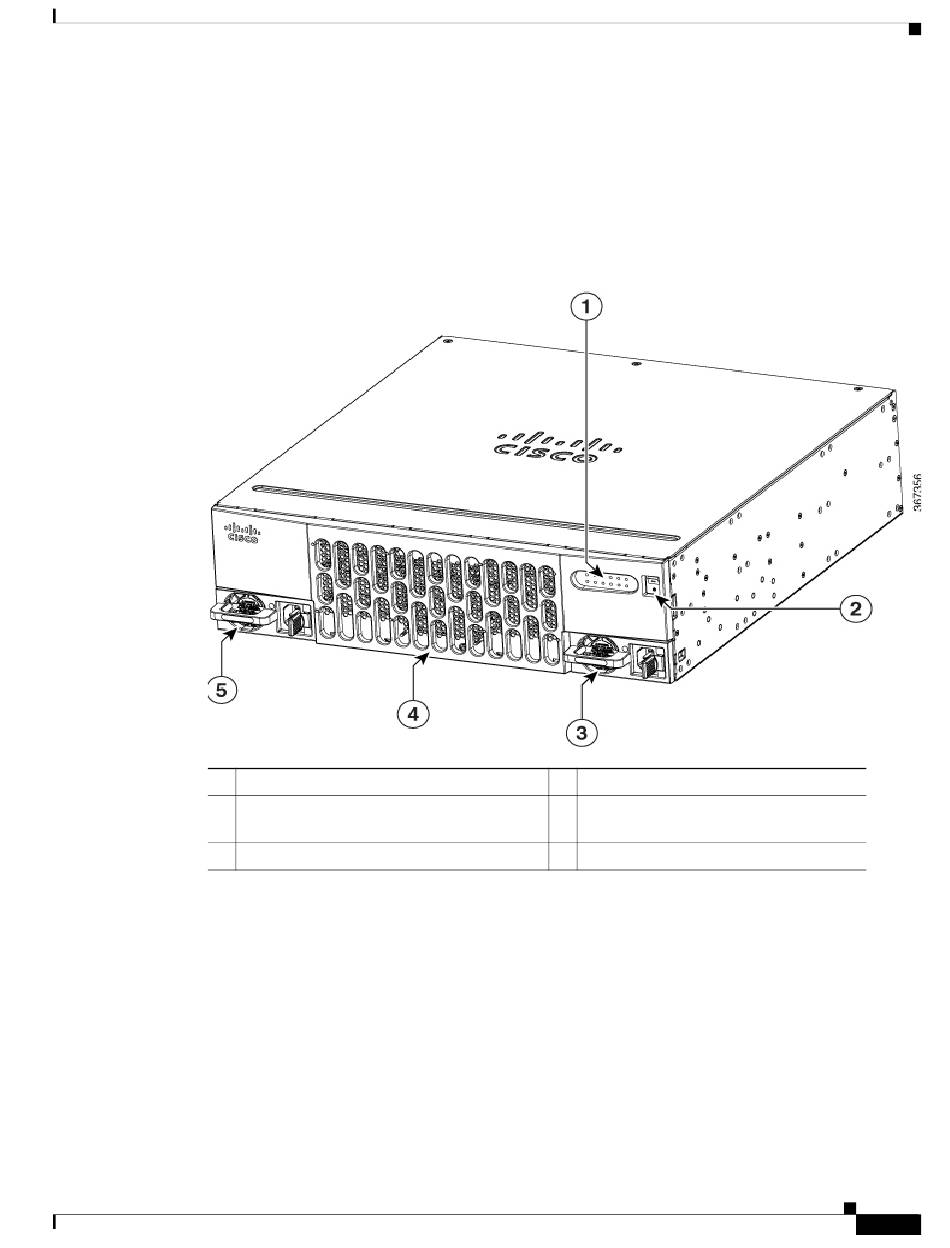

Bezel Side of Cisco 4461 ISR with Two PSUs
LED
Power supply unit (PSU1)
Optional power supply unit (PSU0)
Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
2 Router power On/Off switch
4 Router fan tray (hidden) behind
removable bezel
