Javad TRIUMPH-3 Start Manual page 8

figuration screen appears (Figure 3).
Check the IP address, subnet mask,
DNS, these parameters should be the
same you have assigned for TRIUMPH-3
in NetView&Modem. If all settings are
right, the WiFi connection should be
established. Now your TRIUMPH-3 is
ready to be managed using your iPhone.
Tap JAVAD on the top of the screen
to return to Javad
In the Connection dialog, enter the
same IP port and IP address you have
set for TRIUMPH-3 or click "Set Default".
On the Connection page, type the IP ad-
dress of the internal network, port and log-
in/password.
Surveying
After the connection is successfully estab-
lished, you can see the receiver's ID and
serial number. Click "Connect" to config-
ure your receiver for the survey. If a survey
logging is already started, you will see the
appropriate information: logging file name
and time remaining till auto finish. Use the
"Go to Survey button" to switch to the Sur-
vey screen to monitor the survey progress
or to stop it. The Setup Survey window
(Figure 8) allows setting the antenna type
and height, logging rate, occupation time,
elevation mask, file name and enabling/
disabling site finishing without closing re-
ceiver file. It is may be useful for Stop&Go
TRIUMPH-3 START GUIDE
Mobile Tools.
8

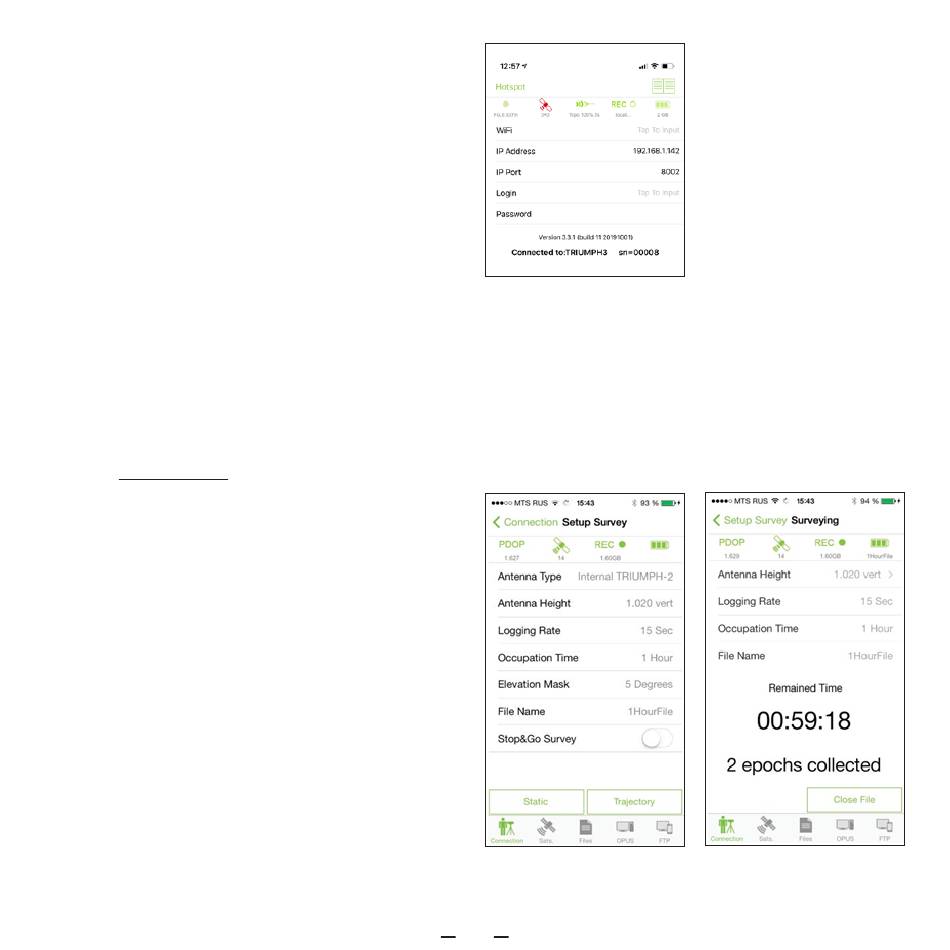

Figure 7. TRIUMPH-3 and IPad/IPhone are con-
nected via Bluetooth
Figure 8 and Figure 9. Setup survey and surveying
