Javad TRIUMPH-3 Start Manual page 3

1 2 3

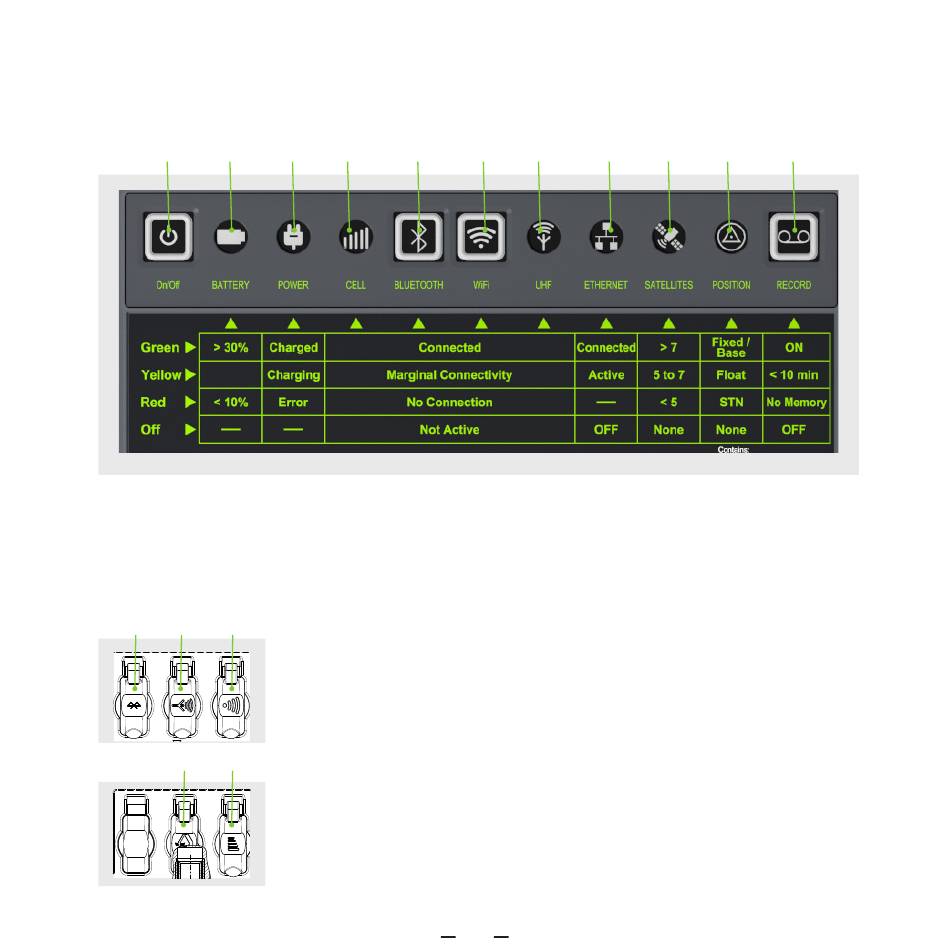

1. On/Off button
2. Battery status
3. Power status
4. GSM status
12 13 14
95.2*
91.2*
15 16
TRIUMPH-3 START GUIDE
4 5 6
5.Bluetooth status
6. WiFi status
7. UHF status
8. Ethernet status
12. Bluetooth antenna connector
13. UHF antenna connector
14. WiFi antenna connector
15. GNSS antenna connector
16. Cellular antenna connector
3
7 8 9
9. Satellites status
10. Position
11. Recording status
181.8*
165.9*
181.3*
