Javad TRIUMPH-3 Start Manual page 7

Connection with Mobile Access
Point
In this mode, iPhone/iPad and TRIUMPH-3
are connected to the same Access Point.
Firstly, configure the receiver using Net-
View&Modem software on your PC. Per-
form the following steps:
1. Open the Server tab (Figure 5) and con-
figure the access to the TRIUMPH-3: enter
TCP Port (e.g. 8002) and your own TCP/FTP
Passwordd. Click "Apply".
2. Open Network | WLAN Parameters.
3. Assign the WLAN Access Point SSID
name, e.g. triumph103.
4. Enter the IP address (e.g. 192.168.0.1),
gateway (e.g. 192.168.0.1) and Network
mask (e.g. 255.255.255.0).

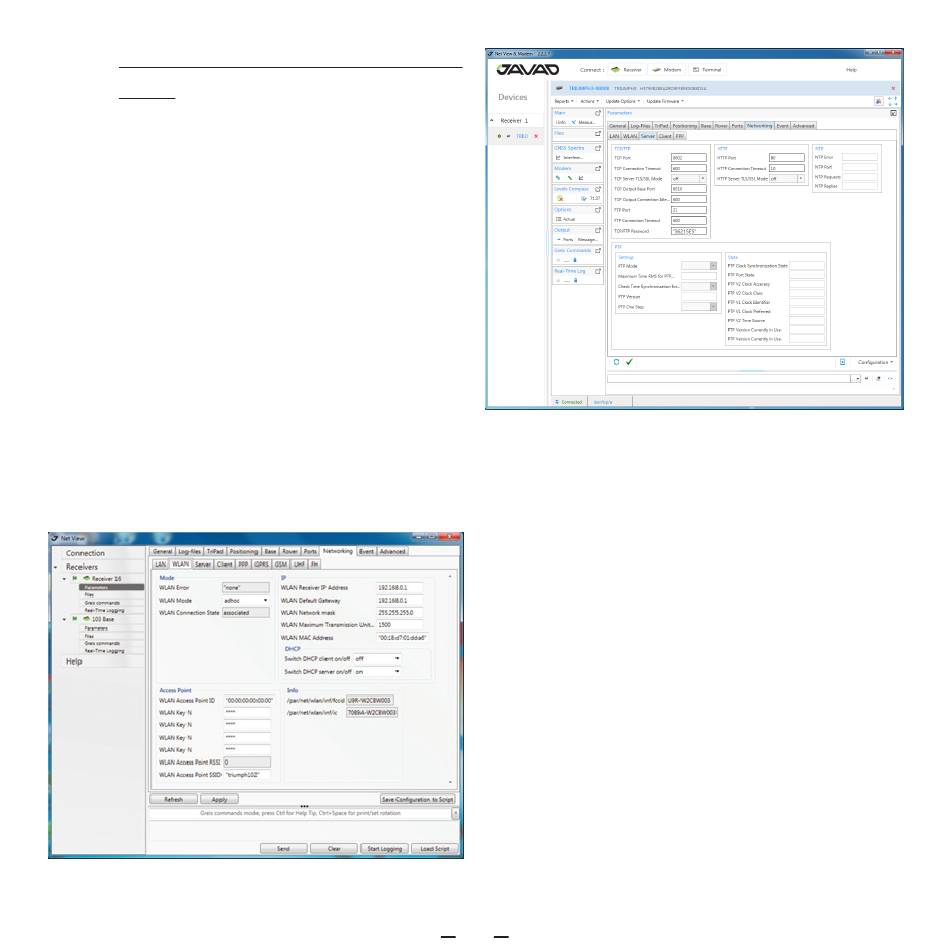

Figure 6. Set WLAN Mode to adhoc
TRIUMPH-3 START GUIDE
Figure 5. Server tab parameters
5. Set the WLAN Key N values to "".
6. Set the DHCP parameters: "client" to off,
and "server" to on. Click "Apply".
Start the JMT for iPhone/iPad software
and select "Connect to" command from
the bottom bar, and select "WiFi GNSS Re-
ceiver" (see Figure 2).
The list of the WiFi settings appears. Now
you can connect to the TRIUMPH-3. In
the list of available WiFi networks tap
"triumph803". Turn on the WiFi in the
iPhone WiFi Settings dialoge. Just cre-
ated WiFi access point SSID name (tri-
umph3008) should appear in the list of
the available networks. Tap the infor-
mation icon near its name, and the Con-
7
