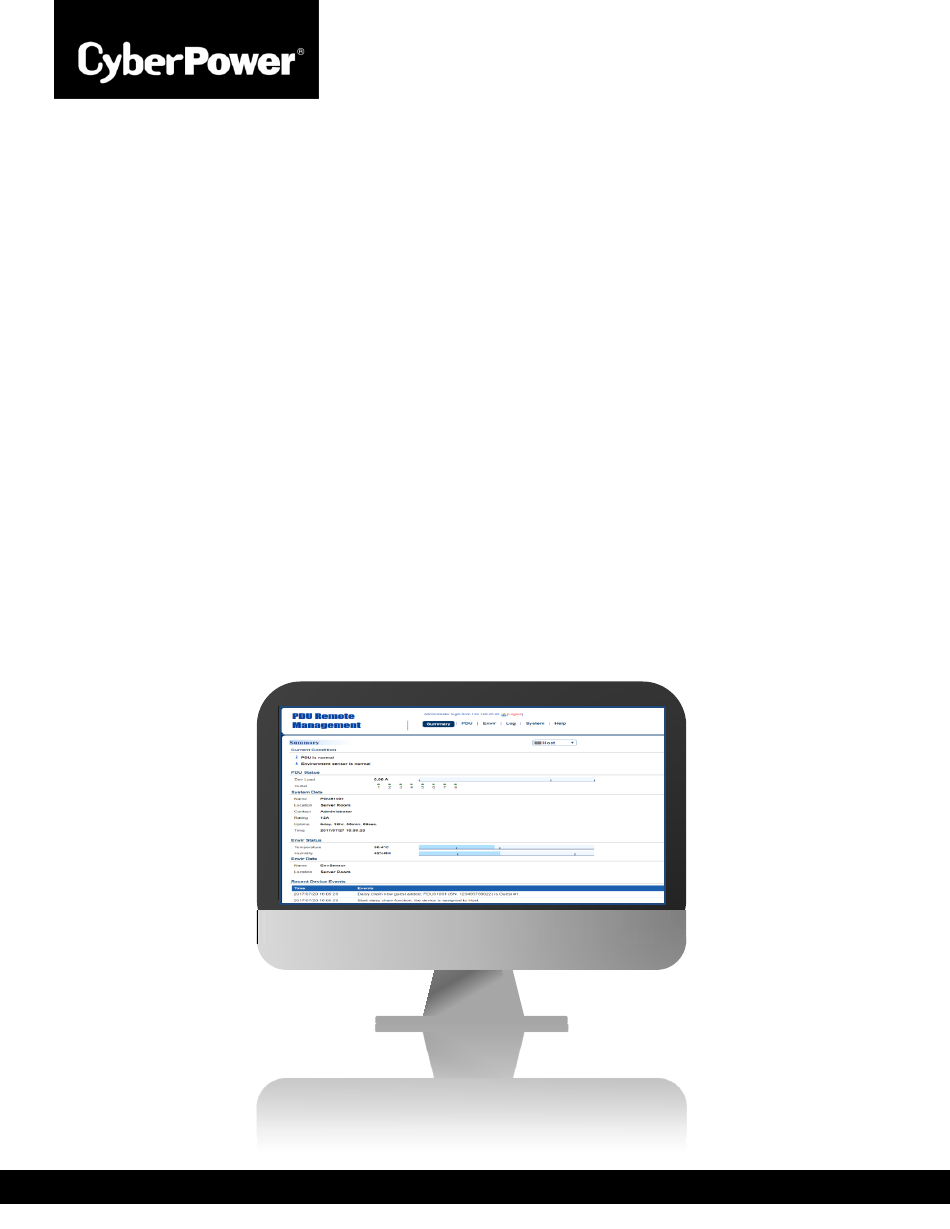

3-Phase Intelligent PDU User Guide
PDU33xxx
PDU43xxx
PDU73xxx
PDU83xxx
Copyright © 2020 Cyber Power Systems, Inc. All rights reserved.
K01-E000019-00

Advertisement

Table of Contents
loading

Related Manuals for CyberPower PDU33 Series

Summary of Contents for CyberPower PDU33 Series

  • Page 1 3-Phase Intelligent PDU User Guide PDU33xxx PDU43xxx PDU73xxx PDU83xxx Copyright © 2020 Cyber Power Systems, Inc. All rights reserved. K01-E000019-00...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Web Interface ......................1 Introduction ..........................1 Advanced Power Management ....................10 Outlet Management ........................ 39 Security ........................... 54 Network Service ........................65 PDU Information ........................77 Save and Restore Configuration Settings ............79 PDU Network Daisy Chain ..................

  • Page 3: Web Interface

    How to Log in Open a Web browser. Enter the IP address of the CyberPower PDU in the Browser Address Bar, and then press ENTER. Note: To look up the IP address, please refer to the LCD screen of the PDU.
  • Page 4 Web Interface General Settings These are the basic settings for the PDU. 1. Date and Time Settings The date and time can be set manually or synchronized with a Network Time Protocol (NTP) server. All time-related configurations are based on this setting. See System Tab >...
  • Page 5 Web Interface Item Definition System Time Configuration Time Zone The options for time zone selection. Date Format The options for date format selection. *Primary NTP Server: Users enter the IP address/domain name of the NTP server and choose local time zone based on their location.
  • Page 6 Web Interface 2. Daylight Saving Time Users adjust the daylight saving time according to their location. See System Tab > General > Daylight Saving Time. System Tab > General > Daylight Saving Time Item Definition DST Configuration Disable Disable the DST function. Traditional US DST Start from the second Sunday in March to the first Sunday in Time...
  • Page 7 Web Interface 3. Device Identification Users assign the device’s name, location, and the person to contact about issues. See System Tab > General > Identification. System Tab > General > Identification Item Definition Select the role of the PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained.
  • Page 8 Web Interface Device Reset/Reboot Users can reboot the PDU or reset all the settings to defaults. See System Tab > Reset/Reboot. System Tab > Reset/Reboot Item Definition Reboot Power Distribution Unit Restart the PDU without power cycling any outlet. Reset the PDU to its factory default setting and restart it. Reset Power Distribution Unit This action will power cycle any outlet.
  • Page 9 Web Interface 5. Environmental Monitoring PDU with CyberPower ENVIROSENSOR can provide remote monitoring of temperature and humidity in a server closet and/or datacenter. You can set temperature and humidity threshold for event action warning. See Envir Tab > Status &...
  • Page 10 Web Interface Item Definition Maximum The highest humidity recorded and the time of occurrence. The lowest humidity recorded and the time of occurrence. Minimum Click Reset to reset the highest and lowest value to zero. Contact Display the current status of each input dry contact relay. Envir Tab >...
  • Page 11 Web Interface Item Definition The point where the environmental state changes from abnormal to normal and users receive a clearing event notification. The function of Hysteresis is to avoid receiving multiple event notifications. *For high threshold, the point is the threshold minus the Hysteresis value;...

  • Page 12: Advanced Power Management

    Web Interface Advanced Power Management Remote Monitoring Users can see real-time readings of PDU vitals such as device load, power consumption, and outlet status for an overview of current PDU status. See Summary Tab, PDU Tab > Status, and PDU Tab > Status >...
  • Page 13 Web Interface Item Definition name and its ON/OFF status will be shown. System Data The name of the PDU. For configuration, see System Tab > General > Name Identification. The location of the PDU. For configuration, see System Tab > General > Location Identification.
  • Page 14 Web Interface PDU Tab > Status > Device Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Device Load Load power of the connected device(s), measured in Kilowatts and Device Load Kilovolt-Amps.
  • Page 15 Web Interface Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Load Load current of the bank. *Only available in select models. 3-Phase Intelligent PDU User Guide...
  • Page 16 Web Interface PDU Tab > Status > Outlet* *The above Outlet Status Page is available for Switched Metered by Outlet Series only. Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Status The on/off status of each outlet.
  • Page 17 Web Interface Visible Power Consumption With comprehensive energy measurement data, users can gain more visibility to the total power usage of a PDU, as well as estimate the energy cost and CO2 emissions. The energy-trend report also helps users analyze their power utilization and to review the history of power conditions. See Log Tab >...
  • Page 18 Web Interface Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Humidity reading when the ENVIROSENSOR is connected to the Hum. (%RH) PDU.
  • Page 19 Web Interface Log Tab > Graphing Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained. Up to 3 GUEST PDUs can connect to 1 HOST PDU. The time period is used to create a retroactive graph of the status Graph Period records.
  • Page 20 Web Interface Log Tab > Energy Records Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained. Up to 3 GUEST PDUs can connect to 1 HOST PDU. Energy consumed by connected device(s) during a specific time Interval Energy (kWh) interval, measured in kWh.
  • Page 21 Web Interface Log Tab > Maintenance Item Definition Event Logs Clear All Logs Clear the existing event logs. The number of the existing event logs and the maximum number The Number of of the event logs that can be recorded. Once the maximum Events number is reached, new events overwrite oldest events in memory.
  • Page 22 Web Interface Item Definition The time that records have been kept. A smaller recording interval leads to less remaining time while a larger recording interval leads Remaining Time to more remaining time. Once the maximum number is reached, new status records overwrite oldest status records in memory. Save Status Records Save the status records as a text file.
  • Page 23 Web Interface Event Logging Users can view all the events, including log in/out records and configuration changes. The timestamp is recorded in a 24-hour format. See Log Tab > Syslog Log Tab > Event Logs. event logs, Users can clear the existing event logs in Log Tab >...
  • Page 24 Web Interface Syslog Server Page Item Definition Server IP The IP address of Syslog server. Server Port The port number that Syslog server uses to communicate. Logs Tab > Event Logs 3-Phase Intelligent PDU User Guide...
  • Page 25 Web Interface Power Protection The configurable load threshold can be set to prevent an overload condition. Coldstart and system configurations are also offered for different user needs. See PDU Tab > Device Manager. PDU Tab > Manager > Device Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST#...
  • Page 26 Web Interface Item Definition When load current exceeds the corresponding threshold, no outlets will be allowed to turn on. *None: Users can turn on an outlet even if the device is in Near Overload or Overload state. Outlet Restriction** *On Near Overload: Users cannot turn on an outlet when the device is in Near Overload or Overload state.
  • Page 27 Web Interface Event Action Notification Users decide the event actions for which they receive notifications. When a certain event happens, an automatic notification will be sent to users so that they can make timely decisions to prevent potential problems. See System Tab >...
  • Page 28 Web Interface Event Action Page The Event Action Page enables users to modify the notification method. Item Definition Logs Event Record the device event in the Event Logs. Send an email to a specific user. Send E-mail An available SMTP server is necessary. Post Trap Send a SNMP trap to a specific IP address.
  • Page 29 Web Interface Event Action Recipient Settings 1. E-mail Notification Set the proper SMTP server settings so that users can receive an email when a specific event occurs. See System Tab > Notification > SMTP Server. System Tab > Notification > SMTP Server Item Definition The service provider of e-mail account.
  • Page 30 Web Interface Item Definition Account Account used for Authentication. Password Password used for Authentication. Secure connection Enable/Disable TLS or SSL to encrypt the SMTP connection. The port number that the PDU uses to communicate with SMTP Service Port server. Users can set up to five e-mail recipients in designated email address format. System >...
  • Page 31 Web Interface Configure E-mail Recipient Page Add New E-mail Recipient Page 3-Phase Intelligent PDU User Guide...
  • Page 32 Web Interface 2. SNMP Trap Notification Set up to 10 SNMP trap receivers to be notified when an event occurs. See System > Notification > Trap Receivers. System > Notification > Trap Receivers Item Definition Click on the trap name to enter the Configure Trap Receiver Page.
  • Page 33 Web Interface Configure Trap Receiver Page Add New Trap Receiver Page 3-Phase Intelligent PDU User Guide...
  • Page 34 Web Interface Item Definition Name The name of trap receiver. IP Address The IP address of the trap receiver. If choosing the SNMPv1 option as the trap type for a trap receiver, SNMPv1 select the corresponding community. See System Tab > Network Service >...
  • Page 35 Web Interface 3. SMS Notification Short Message Service (SMS) is used by mobile communication systems to send a short message to a specific mobile phone number. Standardized communication protocols allow the exchange of short text messages between mobile devices. The system provides four methods for users to choose how they want to send a message. See System >...
  • Page 36 Web Interface System > Notification > SMS Service Using HTTP GET: Use the example where Clickatell is the SMS provider. The basic form of URL using the HTTP GET method is: http://api.clickatell.com/http/sendmsg?user=tedmosby&password=himym&api_id=2014331&to =E_PHONE_NUMBER&text=E_PHONE_MESSAGE Query String in the URL Definition Replace “tedmosby” with the user name created at the Clickatell user=tedmosby website.
  • Page 37 Web Interface System > Notification > SMS Service Using HTTP POST: Use the example where Clickatell is the SMS provider. The basic form of URL is: http://api.clickatell.com/http/sendmsg The basic form of body is: user=tedmosby&password=himym&api_id=2014331&to=E_PHONE_NUMBER&text=E_ MESSAGE Query String in Body Definition Replace “tedmosby”...
  • Page 38 Web Interface System > Notification > SMS Service Using Mail: Users set the SMTP server in System Tab > Notification > SMTP Server first, and then enter the following information. Item Definition Address Enter the e-mail of the recipient. Subject The Subject field shown in the e-mail message, entered by user.
  • Page 39 Web Interface Users can set up to 10 mobile phone numbers as SMS recipients who will receive a short message notification when a specific event occurs. See System Tab > Notification > SMS Recipients. System Tab > Notification > SMS Recipients Item Definition Recipient Name...
  • Page 40 Web Interface Configure SMS Receiver Page Add New SMS Receiver Page 3-Phase Intelligent PDU User Guide...

  • Page 41: Outlet Management

    Web Interface Outlet Management The following provides the outlet configurations to meet different application scenarios. Remote Outlet On/Off/Reboot Users can turn on, turn off, or reboot individual outlet. See PDU Tab > Outlet Action > Control. (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab >...
  • Page 42 Web Interface Item Definition Selected outlets will be immediately turned off and then be turned on again according to each outlet’s Reboot Duration in Reboot PDU Tab > Manager > Outlet. Selected outlets will be turned off according to each outlet's Power Off Delay.
  • Page 43 Web Interface Scheduled Outlet On/Off/Reboot Outlet(s) can be set to automatically turn on, turn off, or reboot at scheduled times. See PDU Tab > Outlet Action > Schedule. (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab > Outlet Action > Schedule Select the role of PDU (HOST or GUEST#) first if PDUs are daisy chained.
  • Page 44 Web Interface Add New Action Schedule Page Up to 10 scheduled settings are allowed. Item Definition Enable Check this box to activate the scheduled action function. Name The name entered by the user to identify the specific scheduled event. The action will be performed when the scheduled event takes place. For reboot action, selected outlets will be immediately turned off and then Control Action be turned on again according to outlet’s Reboot Duration in...
  • Page 45 Web Interface Sequencing Power On/Off Enable users to turn on, turn off, or reboot the outlets in sequence. When powering on the connected devices, the sequential power-on method is recommended to avoid high inrush current. PDU Tab > Manager > Outlet. (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab >...
  • Page 46 Web Interface Outlet Configuration Page Item Definition The name entered by the user to identify the selected outlet or multiple Name outlet configuration. Action Configuration *Instant: Turn on/off the outlet immediately. Power On/Off *Delay: Delay time before turning on/off the outlet. Valid values Delay are within the range of 1 to 7,200 seconds.
  • Page 47 Web Interface Item Definition Low Overload Set the value for individual outlet that will signal a low overload warning Threshold in Watts. Must be lower than Near Overload Threshold. Power Restore Peak Load Restore the peak load of each outlet to zero. Energy Restore the energy of each outlet to zero.
  • Page 48 Web Interface Wake on LAN (WoL) When turning on an outlet, a Wake on LAN packet can be sent to the connected computer to awaken it. It is necessary for the computer to support this function and is configured as "Enabled" in its BIOS settings.
  • Page 49 Web Interface PDU Tab > Wake on LAN > Lists Item Definition If the PowerPanel Client option in PDU Tab > Wake on LAN > Features WoL Client List is selected, the PowerPanel® List will be automatically added to the WoL Client list.
  • Page 50 Web Interface Add Wake on LAN Receiver Window Item Definition Active Enable/Disable the Wake on LAN function. The IP address of the computer. This IP must be within the same subnet IP Address as the PDU. Up to 50 IP addresses are supported. Outlet Select the outlet that provides power to the computer.
  • Page 51 Web Interface Graceful Computer Shutdown After the connected computer is installed with PowerPanel Business Edition Client or Center and establishes communication with the PDU, its IP address will be automatically displayed in the PowerPanel® List shown below. This computer can perform a safe shutdown before the outlet powering the computer turns off, thus avoiding data loss.
  • Page 52 Web Interface Cisco EnergyWise Users can manage and control all Cisco EnergyWise entities and configure settings. See PDU Tab > EnergyWise > Configuration PDU Tab > EnergyWise > Children List. PDU Tab > EnergyWise > Configuration Item Definition Version The version of EnergyWise supported. EnergyWise Enable/Disable EnergyWise support.
  • Page 53 Web Interface PDU Tab > EnergyWise > Children List Click the Name field in parent and/or children list to enter the EnergyWise Parent Configuration Page EnergyWise Child Configuration Page. 3-Phase Intelligent PDU User Guide...
  • Page 54 Web Interface EnergyWise Parent Configuration Page EnergyWise Child Configuration Page Item Definition The name entered by the user to identify an EnergyWise entity. Name The maximum length is 31 characters. Role This parameter is a string entered by the user to describe the function of 3-Phase Intelligent PDU User Guide...
  • Page 55 Web Interface Item Definition the entity. Maximum length is 31 characters. This parameter is a string entered by the user to describe the entity. Keywords Maximum length is 31 characters. This parameter, entered by the user, shows the value of an entity’s Importance importance and must be between 1 and 100.

  • Page 56: Security

    Web Interface Security The following provides account configurations to protect against unauthorized entry. Login Authentication There are five options for login authentication. Only one user can log in to the web interface at a time. System Tab > Security > Authentication Item Definition Login Authentication...
  • Page 57 Web Interface Item Definition Log in with user name and password to authenticate with LDAP server first. If the LDAP server fails to respond, then the user LDAP, Local name and password configured in Local Configuration can be used. See System Tab >...
  • Page 58 Web Interface 1. Using Local Configuration for Authentication System Tab > Security > Local Configuration There are two types of account: administrator and viewer. Click User Name or Password field to enter Administrator Page Viewer Page. Users can also click NEW to enter Add Outlet User Page to create an outlet account.
  • Page 59 Web Interface Administrator Page Viewer Page 3-Phase Intelligent PDU User Guide...
  • Page 60 Web Interface Item Definition The administrator can access all functions, including Enable/Disable the Administrator Viewer account. For login configuration, users can only create one administrator account. User Name Enter the new user name. Current Enter the current password for authentication. Password New Password Enter the new password.
  • Page 61 Web Interface Add Outlet User Page* *The above Add Outlet User Page is available for Switched Metered by Outlet Series and Switched Series only. Users can create an outlet account that is allowed to control assigned outlet(s). Item Definition Active Enable or disable the user account.
  • Page 62 Web Interface 2. Using RADIUS Configuration for Authentication System Tab > Security > RADIUS Configuration Click Add Server to enter Radius Server Configuration Page to create a server. 3-Phase Intelligent PDU User Guide...
  • Page 63 Web Interface Radius Server Configuration Page Item Definition Server IP The IP address of RADIUS server. Shared Secret The shared secret of RADIUS server. Server Port The UDP port used by the RADIUS server. Use user name and password to authenticate with RADIUS server, and Test Setting save information of RADIUS server if authentication succeeds.
  • Page 64 Web Interface 3. Using LDAP Configuration for Authentication System Tab > Security > LDAP configuration Click Add Server to enter LDAP Server Configuration Page to create a server. 3-Phase Intelligent PDU User Guide...
  • Page 65 Web Interface LDAP Server Configuration Page Item Definition LDAP Server The IP address of LDAP server. LDAP SSL To communicate with LDAP server by LDAPS. Port The TCP port used by the LDAP(S) server. Base DN The base DN of LDAP server. Login Attribute The login attribute of LDAP user entry.
  • Page 66 Web Interface Timeout Setting Configure the idle login sessions. See System > Security > Session Control. System > Security > Session Control Item Definition Login Session Timeout The time in minutes that the system waits before automatically logging off. 3-Phase Intelligent PDU User Guide...

  • Page 67: Network Service

    Web Interface Network Service The following provides the network configurations. TCP/IPv4 Setting Display the current TCP/IPv4 settings and allow users to select the option to obtain TCP/IP settings by DHCP. See System > Network Service > TCP/IPv4. System > Network Service > TCP/IPv4 Item Definition Current...
  • Page 68 Web Interface TCP/IPv6 Setting Display the current TCP/IPv6 settings and allow users to assign the IPv6 address either by router control or manually. See System > Network Service > TCP/IPv6. System > Network Service > TCP/IPv6 Item Definition IPv6 Interface Displays the current IPv6 address.
  • Page 69 Web Interface SNMPv1 Service Setting Allow users to perform SNMPv1 configurations. See System Tab > Network Service > SNMPv1 Service. System Tab > Network Service > SNMPv1 Service Item Definition SNMPv1 Service Allow Access Enable or disable the SNMPv1 service. Click the SNMP Trap Community field to enter the SNMPv1 Page.
  • Page 70 Web Interface SNMPv1 Page Item Definition The name used to access the SNMP community from a Network Community Management System (NMS). Its maximum length is 15 characters. The IP address or IP address mask can be accessed by the NMS. A specific IP address allows access only by the NMS with the specified IP Address.
  • Page 71 Web Interface SNMPv3 Service Setting Users can perform SNMPv3 configurations. Authentication type or privacy type are provided to strengthen security. See System Tab > Network Service > SNMPv3 Service. System Tab > Network Service > SNMPv3 Service Item Definition SNMPv3 Service Allow Access Enable or disable the SNMPv3 service.
  • Page 72 Web Interface SNMPv3 Page Item Definition Access Enable or disable the SNMPv3 service. The name that identifies the SNMPv3 user. It must be 1 to 31 User Name characters long. Authentication The password used to generate the key for authentication. It must be Password 16 to 31 characters long.
  • Page 73 Web Interface Web Service Select the Enable HTTP/HTTPS option to access the HTTP/HTTPS Service and configure HTTP/HTTPS port settings. See System Tab > Network Service > Web Service. System Tab > Network Service > Web Service Item Definition Access Enable or disable HTTP/HTTPS service. HTTPS supports the following encryption algorithms: ...
  • Page 74 Web Interface Item Definition The TCP/IP port of the Hypertext Transfer Protocol (HTTP); 80 is the default value. HTTP Port Users can also change the port setting to any unused port from 5000 to 65535 to enhance security. Https Settings The TCP/IP port of the Hypertext Transfer Protocol Secure (HTTPS);...
  • Page 75 Web Interface Click the Valid Certificate link, and the Installed Certificate Page will appear. Installed Certificate Page Click the Upload Certificate link, and the Change Certificate Page will appear. Change Certificate Page 3-Phase Intelligent PDU User Guide...
  • Page 76 Web Interface Console Service Select the Enable options to allow access using Telnet/SSH service and configure Telnet/SSH port settings. See System Tab > Network Service > Console Service. System Tab > Network Service > Console Service Item Definition Access Enable access using Telnet or SSH version 2, which transmits user Allow Access names, passwords, and data in an encrypted format.
  • Page 77 Web Interface Item Definition SSH Settings The TCP/IP port that SSH uses to communicate; 22 is the default value. SSH Port Users can change port setting to any unused port from 5000 to 65535 to enhance security. Display the status of hostkey fingerprint to show whether it is valid or Hostkey Status invalid.
  • Page 78 Web Interface FTP Service Allow users to enable/disable the FTP server service and configure the TCP/IP port of the FTP server. The FTP server is used for upgrading Firmware. See System Tab > Network Service > FTP Service. System Tab > Network Service > FTP Service Item Definition Allow Access...

  • Page 79: Pdu Information

    Web Interface PDU Information Display the system information of the PDU. See System > About. System > About Item Definition Information Model Name Model name of the PDU. Serial Number Serial Number of the PDU. Hardware Version The hardware version of the PDU. Firmware Version The current firmware version installed on the PDU.
  • Page 80 Web Interface To restore a configuration that has been saved earlier. Restore Configuration Click Select File to import an existing configuration file and then click Submit. 3-Phase Intelligent PDU User Guide...

  • Page 81: Save And Restore Configuration Settings

    Save and Restore Configuration Settings Save and Restore Configuration Settings Option 1: via Web interface You can easily save and restore the device configuration to your local PC on System > About. To save the configuration file, click “Save” to save the configuration to your local PC. The text file will have a default format of YYYY_MM_DD_HHMM.txt.
  • Page 82 Save and Restore Configuration Settings Note: (1) The SSH setting on the PDU must be Enabled. (2) <filename> is the filename of the configuration file with a default format of YYYY_MM_DD_HHMM.txt. (3) <user> is the username of the SSH account on the PDU. (4) Ensure to add “:”...

  • Page 83: Pdu Network Daisy Chain

    PDU Network Daisy Chain PDU Network Daisy Chain The daisy-chain function allows up to four PDUs to be connected together to be monitored and controlled from one IP address. When PDUs are connected, two roles are defined: Host and Guest. Up to three Guest PDUs can be connected to one Host PDU.
  • Page 84 PDU Network Daisy Chain What remote management protocols are supported in PDU daisy-chains? Currently users can monitor and control daisy-chained PDUs through Web interface (HTTP/HTTPS) or SNMP protocols. What functions on the Web pages does daisy-chain support? Please find in below table: Summary Device Status Outlet Status...
  • Page 85 PDU Network Daisy Chain What will happen if an Ethernet cable is disconnected in the PDU daisy-chain? For example, if four PDUs are connected and the cable connecting Guest 1 and 2 is disconnected, then Guest 2 and 3 will no longer be detected by the Host PDU. An event showing that Guest 2 and 3 are removed will be recorded in the Host PDU.
  • Page 86 PDU Network Daisy Chain Will the Status Records of the Guest PDUs logged in the Host PDU be cleared if the Guest PDUs are disconnected from the Host PDU? Yes, once the Guest PDUs are removed, the Status Records logged in the Host PDU will be cleared. As long as the Host PDU does not connect to other PDUs, the Status Records of the disconnected PDU can be displayed when it is re-connected to the Host PDU.

  • Page 87: Firmware Upgrade

    - ftp> open 192.168.22.126 21 (for example: 192.168.22.126 is the current IP of the PDU and 21 is the default ftp port for the PDU) - Connected to 192.168.22.126. - 220 CyberPower FTP Server Ready. - User (192.168.22.126:(none)):cyber - 331 User name okay, need password.
  • Page 88 - ftp> open 192.168.22.126 21 (for example: 192.168.22.126 is the current IP of the PDU and 21 is the default ftp port for the PDU) - Connected to 192.168.22.126. - 220 CyberPower FTP Server Ready. - User (192.168.22.126:(none)):cyber - 331 User name okay, need password.
  • Page 89 Use the following steps to upgrade the firmware. 1. Download the Upgrade and Configuration Utility from www.cyberpower.com 2. Open the Upgrade and Configuration Utility from Start > All Programs > CyberPower Upgrade and Configuration Utility. 3. Wait for search to finish (shown in Figure 1).
  • Page 90 Firmware Upgrade 4. Check the checkbox to select devices listed in the Operation View (Shown in Figure 2). Figure 2 5. Make sure Account and Password are valid on selected devices (Shown in Figure 3). Figure 3. 6. Select Upgrade Firmware. 3-Phase Intelligent PDU User Guide...
  • Page 91 Firmware Upgrade 7. Click Browse to locate and select the firmware and data file to be updated (Shown in Figure 4). Figure 4. 8. Click OK in the Upgrade Firmware confirmation window (Shown in Figure 5). Figure 5. 3-Phase Intelligent PDU User Guide...
  • Page 92 Firmware Upgrade 9. The upgrade progress bar will show in Last Action column (Shown in Figure 6). Figure 6. 10. The result of firmware upgrade will show in Result column (Shown in Figure 7). Figure 7. Note: If you don’t want to wait for the firmware upgrade, you can stop the process by clicking Abort in the Action menu.
  • Page 93 Use the following steps to upgrade the firmware. 1. Download the latest firmware from www.cyberpower.com 2. Extract the file to the root directory of a USB flash drive with FAT32 formatting. Please note that the two files below should be available in order to complete the firmware upgrade process: *cpsmpdumbdata_xxx.bin...
  • Page 94 Firmware Upgrade Note: Only firmware version 1.10 and above supports the functionality to update firmware via SCP. For Windows Users: 1. Download any PuTTY Secure Copy client (PSCP) utility. 2. Save the firmware files and the PSCP Utility in the same folder. 3.
  • Page 95 Firmware Upgrade scp <filename> <user>@< IP address of PDU>: Note: (5) The SSH setting on the PDU must be Enabled. (6) <filename> is the filename of the firmware file. There are two firmware files to upload: cpsmpdumbfw_XXX.bin and cpsmpdumbdata_XXX.bin. In order to upgrade the firmware version both files need to be uploaded.
  • Page 96 Contact Information Feel free to contact our Tech Support department with installation, troubleshooting, or general product questions. Cyber Power Systems, Inc. Web: www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN55379 Toll-free: (877) 297-6937 For all other regions: Please visit our website for local contact information.
