CyberPower PDU31 Series User Manual

Intelligent
Hide thumbs Also See for PDU31 Series:
Table of Contents

Advertisement

Quick Links

Intelligent PDU User Guide
PDU31xxx
PDU41xxx
PDU71xxx
PDU81xxx
Copyright © 2020 Cyber Power Systems, Inc. All rights reserved.
K01-E000003-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDU31 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberPower PDU31 Series

Summary of Contents for CyberPower PDU31 Series

  • Page 1 Intelligent PDU User Guide PDU31xxx PDU41xxx PDU71xxx PDU81xxx Copyright © 2020 Cyber Power Systems, Inc. All rights reserved. K01-E000003-04...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Web Interface ..........................1 Introduction ..........................1 Advanced Power Management ....................10 Outlet Management ........................ 38 Security ........................... 56 Network Service ........................67 PDU Information ........................79 Command Line Interface ....................... 81 Introduction ..........................81 Command Lists ........................

  • Page 3: Web Interface

    How to Log in Open a Web browser. Enter the IP address of the CyberPower PDU in the Browser Address Bar, and then press ENTER. Note: To look up the IP address, please refer to the LCD screen of the PDU.
  • Page 4 Web Interface General Settings These are the basic settings for the PDU. 1. Date and Time Settings The date and time can be set manually or synchronized with a Network Time Protocol (NTP) System Tab > General > server. All time-related configurations are based on this setting. See Time.
  • Page 5 Web Interface Item Definition System Time Configuration Time Zone The options for time zone selection. Date Format The options for date format selection. *Primary NTP Server: Users enter the IP address/domain name of the NTP server and choose local time zone based on their location.
  • Page 6 Web Interface 2. Daylight Saving Time System Tab > General > Users adjust the daylight saving time according to their location. See Daylight Saving Time. System Tab > General > Daylight Saving Time Item Definition DST Configuration Disable Disable the DST function. Traditional US DST Start from the second Sunday in March to the first Sunday in Time...
  • Page 7 Web Interface 3. Device Identification System Tab Users assign the device’s name, location, and the person to contact about issues. See > General > Identification. System Tab > General > Identification Item Definition Select the role of the PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained.
  • Page 8 Web Interface Device Reset/Reboot System Tab > Users can reboot the PDU or reset all the settings to defaults. See Reset/Reboot. System Tab > Reset/Reboot Item Definition Reboot Power Distribution Unit Restart the PDU without power cycling any outlet. Reset the PDU to its factory default setting and restart it. Reset Power Distribution Unit This action will power cycle any outlet.
  • Page 9 Web Interface 5. Environmental Monitoring PDU with CyberPower ENVIROSENSOR can provide remote monitoring of temperature and humidity in a server closet and/or datacenter. You can set temperature and humidity threshold for Envir Tab > Status Envir Tab > Configuration. Note that Envir Tab event action warning.
  • Page 10 Web Interface Item Definition Maximum The highest humidity recorded and the time of occurrence. The lowest humidity recorded and the time of occurrence. Minimum Click Reset to reset the highest and lowest value to zero. Contact Display the current status of each input dry contact relay. Envir Tab >...
  • Page 11 Web Interface Item Definition The point where the environmental state changes from abnormal to normal and users receive a clearing event notification. The function of Hysteresis is to avoid receiving multiple event notifications. *For high threshold, the point is the threshold minus the Hysteresis value;...

  • Page 12: Advanced Power Management

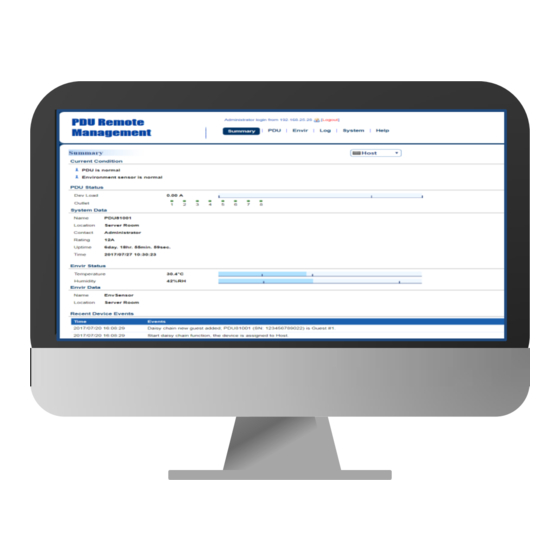

    Web Interface Advanced Power Management Remote Monitoring Users can see real-time readings of PDU vitals such as device load, power consumption, and outlet Summary Tab, PDU Tab > Status, and PDU Tab > status for an overview of current PDU status. See Status >...
  • Page 13 Web Interface Item Definition off. Outlet Tooltip Function: move the cursor to an individual outlet, Outlet name and its ON/OFF status will be shown. System Data The name of the PDU. For configuration, see System Tab > General > Name Identification.
  • Page 14 Web Interface PDU Tab > Status > Device Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Load Load current of the connected device(s), measured in Amps. Device Load Load power of the connected device(s), measured in Kilowatts and Kilovolt-Amps.
  • Page 15 Web Interface PDU Tab > Status > Outlet* Outlet Status Page *The above is available for Switched Metered by Outlet Series only. Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy chained. HOST/GUEST# Up to 3 GUEST PDUs can connect to 1 HOST PDU. Status The on/off status of each outlet.
  • Page 16 Web Interface Visible Power Consumption With comprehensive energy measurement data, users can gain more visibility to the total power usage of a PDU, as well as estimate the energy cost and CO2 emissions. The energy-trend report also helps users analyze their power utilization and to review the history of power conditions. See Log Tab >...
  • Page 17 Web Interface *For Switched Metered by Outlet Series only. Intelligent PDU User Guide...
  • Page 18 Web Interface Log Tab > Graphing Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained. Up to 3 GUEST PDUs can connect to 1 HOST PDU. The time period is used to create a retroactive graph of the status Graph Period records.
  • Page 19 Web Interface Log Tab > Energy Records Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST# chained. Up to 3 GUEST PDUs can connect to 1 HOST PDU. Energy consumed by connected device(s) during a specific time Interval Energy (kWh) interval, measured in kWh.
  • Page 20 Web Interface Log Tab > Maintenance Item Definition Event Logs Clear All Logs Clear the existing event logs. The number of the existing event logs and the maximum number The Number of of the event logs that can be recorded. Once the maximum Events number is reached, new events overwrite oldest events in memory.
  • Page 21 Web Interface Item Definition The time that records have been kept. A smaller recording interval leads to less remaining time while a larger recording interval leads Remaining Time to more remaining time. Once the maximum number is reached, new status records overwrite oldest status records in memory. Save Status Records Save the status records as a text file.
  • Page 22 Web Interface Event Logging Users can view all the events, including log in/out records and configuration changes. The Log Tab > Syslog Log Tab > Event Logs. timestamp is recorded in a 24-hour format. See event logs, Users can clear the existing event logs in Log Tab >...
  • Page 23 Web Interface Syslog Server Page Item Definition Server IP The IP address of Syslog server. Server Port The port number that Syslog server uses to communicate. Logs Tab > Event Logs Intelligent PDU User Guide...
  • Page 24 Web Interface Power Protection The configurable load threshold can be set to prevent an overload condition. Coldstart and system PDU Tab > Device Manager. configurations are also offered for different user needs. See PDU Tab > Manager > Device Item Definition Select the role of PDU (HOST or GUEST#) if PDUs are daisy HOST/GUEST#...
  • Page 25 Web Interface Item Definition Set the value for the total current on the PDU that will signal a low Low Load Threshold load warning. Must be lower than Near Overload Threshold. When load current exceeds the corresponding threshold, no outlets will be allowed to turn on. *None: Users can turn on an outlet even if the device is in Near Overload or Overload state.
  • Page 26 Web Interface Event Action Notification Users decide the event actions for which they receive notifications. When a certain event happens, an automatic notification will be sent to users so that they can make timely decisions to prevent System Tab > Notification. potential problems.
  • Page 27 Web Interface Event Action Page The Event Action Page enables users to modify the notification method. Item Definition Logs Event Record the device event in the Event Logs. Send an email to a specific user. Send E-mail An available SMTP server is necessary. Post Trap Send a SNMP trap to a specific IP address.
  • Page 28 Web Interface Event Action Recipient Settings 1. E-mail Notification Set the proper SMTP server settings so that users can receive an email when a specific event System Tab > Notification > SMTP Server. occurs. See System Tab > Notification > SMTP Server Item Definition The service provider of e-mail account.
  • Page 29 Web Interface Item Definition Account Account used for Authentication. Password Password used for Authentication. Secure connection Enable/Disable TLS or SSL to encrypt the SMTP connection. The port number that the PDU uses to communicate with SMTP Service Port server. Users can set up to five e-mail recipients in designated email address format. System >...
  • Page 30 Web Interface Configure E-mail Recipient Page Add New E-mail Recipient Page Intelligent PDU User Guide...
  • Page 31 Web Interface 2. SNMP Trap Notification System > Set up to 10 SNMP trap receivers to be notified when an event occurs. See Notification > Trap Receivers. System > Notification > Trap Receivers Item Definition Configure Trap Receiver Page. Click on the trap name to enter the Name Users can modify or delete an existing receiver.
  • Page 32 Web Interface Configure Trap Receiver Page Add New Trap Receiver Page Intelligent PDU User Guide...
  • Page 33 Web Interface Item Definition Name The name of trap receiver. IP Address The IP address of the trap receiver. If choosing the SNMPv1 option as the trap type for a trap receiver, SNMPv1 select the corresponding community. See System Tab > Network Service >...
  • Page 34 Web Interface 3. SMS Notification Short Message Service (SMS) is used by mobile communication systems to send a short message to a specific mobile phone number. Standardized communication protocols allow the exchange of short text messages between mobile devices. The system provides four methods for users to choose how they want to send a message. See System >...
  • Page 35 Web Interface System > Notification > SMS Service Using HTTP GET: Use the example where Clickatell is the SMS provider. The basic form of URL using the HTTP GET method is: http://api.clickatell.com/http/sendmsg?user=tedmosby&password=himym&api_id=2014331&to =E_PHONE_NUMBER&text=E_PHONE_MESSAGE Query String in the URL Definition Replace “tedmosby” with the user name created at the Clickatell user=tedmosby website.
  • Page 36 Web Interface System > Notification > SMS Service Using HTTP POST: Use the example where Clickatell is the SMS provider. The basic form of URL is: http://api.clickatell.com/http/sendmsg The basic form of body is: user=tedmosby&password=himym&api_id=2014331&to=E_PHONE_NUMBER&text=E_ MESSAGE Query String in Body Definition Replace “tedmosby”...
  • Page 37 Web Interface System > Notification > SMS Service Using Mail: Users set the SMTP server in System Tab > Notification > SMTP Server first, and then enter the following information. Item Definition Address Enter the e-mail of the recipient. Subject The Subject field shown in the e-mail message, entered by user.
  • Page 38 Web Interface Users can set up to 10 mobile phone numbers as SMS recipients who will receive a short System Tab > Notification > SMS message notification when a specific event occurs. See Recipients. System Tab > Notification > SMS Recipients Item Definition Configure SMS Receiver...
  • Page 39 Web Interface Configure SMS Receiver Page Add New SMS Receiver Page Intelligent PDU User Guide...

  • Page 40: Outlet Management

    Web Interface Outlet Management The following provides the outlet configurations to meet different application scenarios. Remote Outlet On/Off/Reboot PDU Tab > Outlet Action > Control. Users can turn on, turn off, or reboot individual outlet. See (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab >...
  • Page 41 Web Interface Item Definition Selected outlets will be turned off according to each outlet’s Power Off Delay in PDU Tab > Manager > Outlet. Turn Off + Delay This action could signal a computer to shut down, if PowerPanel® Business Edition Client software is installed on it. Selected outlets will be immediately turned off and then be turned on again according to each outlet’s Reboot Duration in Reboot...
  • Page 42 Web Interface Scheduled Outlet On/Off/Reboot PDU Tab > Outlet(s) can be set to automatically turn on, turn off, or reboot at scheduled times. See Outlet Action > Schedule. (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab > Outlet Action > Schedule Select the role of PDU (HOST or GUEST#) first if PDUs are daisy chained.
  • Page 43 Web Interface Add New Action Schedule Page Up to 10 scheduled settings are allowed. Item Definition Enable Check this box to activate the scheduled action function. Name The name entered by the user to identify the specific scheduled event. The action will be performed when the scheduled event takes place. For reboot action, selected outlets will be immediately turned off and then Control Action be turned on again according to outlet’s Reboot Duration in...
  • Page 44 Web Interface Sequencing Power On/Off Enable users to turn on, turn off, or reboot the outlets in sequence. When powering on the connected devices, the sequential power-on method is recommended to avoid high inrush current. PDU Tab > Manager > Outlet. (For Switched Metered by Outlet Series and Switched Series only.) PDU Tab >...
  • Page 45 Web Interface Outlet Configuration Page Item Definition The name entered by the user to identify the selected outlet or multiple Name outlet configuration. Action Configuration *Instant: Turn on/off the outlet immediately. *Delay: Delay time before turning on/off the outlet. Valid values Power On/Off Delay are within the range of 1 to 7,200 seconds.
  • Page 46 Web Interface Item Definition Low Overload Set the value for individual outlet that will signal a low overload warning Threshold in Watts. Must be lower than Near Overload Threshold. Power Restore Peak Load Restore the peak load of each outlet to zero. Energy Restore the energy of each outlet to zero.
  • Page 47 Web Interface AutoPing The AutoPing feature allows the PDU to detect if a target device becomes unresponsive to IP pings and automatically reboot the device. If the device gets back to normal operation after reboot, network connection could be restored at the same time. PDU Tab >...
  • Page 48 Web Interface Up to 10 AutoPing settings are allowed. Item Definition Enable/Disable the AutoPing function. Active When “Yes” is selected, sets the IP address of the priority to utilize the function. Pings will only be sent to the target device when receiving a successful ping response from the priority.
  • Page 49 Web Interface After confirming the AutoPing configuration and pressing “Apply” button, find your preferred configuration and AutoPing status on AutoPing Webpage. Besides, set the IP address of the priority when “Yes” is selected. For example, the target device is connected to a router, which is set to be the priority. The PDU sends IP pings to the target device only if the router is responsive to IP pings.
  • Page 50 Web Interface Wake on LAN (WoL) When turning on an outlet, a Wake on LAN packet can be sent to the connected computer to awaken it. It is necessary for the computer to support this function and is configured as "Enabled" in PDU Tab >...
  • Page 51 Web Interface PDU Tab > Wake on LAN > Lists Item Definition If the PowerPanel Client option in PDU Tab > Wake on LAN > Features WoL Client List is selected, the PowerPanel® List will be automatically added to the WoL Client list.
  • Page 52 Web Interface Add Wake on LAN Receiver Window Item Definition Active Enable/Disable the Wake on LAN function. The IP address of the computer. This IP must be within the same subnet IP Address as the PDU. Up to 50 IP addresses are supported. Outlet Select the outlet that provides power to the computer.
  • Page 53 Web Interface Graceful Computer Shutdown After the connected computer is installed with PowerPanel Business Edition Client or Center and establishes communication with the PDU, its IP address will be automatically displayed in the PowerPanel® List shown below. This computer can perform a safe shutdown before the outlet powering the computer turns off, thus avoiding data loss.
  • Page 54 Web Interface Cisco EnergyWise PDU Tab Users can manage and control all Cisco EnergyWise entities and configure settings. See > EnergyWise > Configuration PDU Tab > EnergyWise > Children List. PDU Tab > EnergyWise > Configuration Item Definition Version The version of EnergyWise supported. EnergyWise Enable/Disable EnergyWise support.
  • Page 55 Web Interface PDU Tab > EnergyWise > Children List Click the Name field in parent and/or children list to enter the EnergyWise Parent Configuration Page EnergyWise Child Configuration Page. Intelligent PDU User Guide...
  • Page 56 Web Interface EnergyWise Parent Configuration Page EnergyWise Child Configuration Page Item Definition The name entered by the user to identify an EnergyWise entity. Name The maximum length is 31 characters. Role This parameter is a string entered by the user to describe the function of Intelligent PDU User Guide...
  • Page 57 Web Interface Item Definition the entity. Maximum length is 31 characters. This parameter is a string entered by the user to describe the entity. Keywords Maximum length is 31 characters. This parameter, entered by the user, shows the value of an entity’s Importance importance and must be between 1 and 100.

  • Page 58: Security

    Web Interface Security The following provides account configurations to protect against unauthorized entry. Login Authentication There are five options for login authentication. Only one user can log in to the web interface at a time. System Tab > Security > Authentication Item Definition Login Authentication...
  • Page 59 Web Interface Item Definition Log in with user name and password to authenticate with RADIUS Only RADIUS server only. See System Tab > Security > RADIUS Configuration. Log in with user name and password to authenticate with LDAP server first. If the LDAP server fails to respond, then the user LDAP, Local name and password configured in Local Configuration can be used.
  • Page 60 Web Interface 1. Using Local Configuration for Authentication System Tab > Security > Local Configuration There are two types of account: administrator and viewer. Click User Name or Password field to Administrator Page Viewer Page. Users can also click NEW to enter Add Outlet User enter Page...
  • Page 61 Web Interface Administrator Page Viewer Page Intelligent PDU User Guide...
  • Page 62 Web Interface Item Definition The administrator can access all functions, including Enable/Disable the Administrator Viewer account. For login configuration, users can only create one administrator account. User Name Enter the new user name. Current Enter the current password for authentication. Password New Password Enter the new password.
  • Page 63 Web Interface Add Outlet User Page* Add Outlet User Page *The above is available for Switched Metered by Outlet Series and Switched Series only. Users can create an outlet account that is allowed to control assigned outlet(s). Item Definition Active Enable or disable the user account.
  • Page 64 Web Interface 2. Using RADIUS Configuration for Authentication System Tab > Security > RADIUS Configuration Click Add Server to enter Radius Server Configuration Page to create a server. Intelligent PDU User Guide...
  • Page 65 Web Interface Radius Server Configuration Page Item Definition Server IP The IP address of RADIUS server. Shared Secret The shared secret of RADIUS server. Server Port The UDP port used by the RADIUS server. Use user name and password to authenticate with RADIUS server, and Test Setting save information of RADIUS server if authentication succeeds.
  • Page 66 Web Interface 3. Using LDAP Configuration for Authentication System Tab > Security > LDAP configuration Click Add Server to enter LDAP Server Configuration Page to create a server. Intelligent PDU User Guide...
  • Page 67 Web Interface LDAP Server Configuration Page Item Definition LDAP Server The IP address of LDAP server. LDAP SSL To communicate with LDAP server by LDAPS. Port The TCP port used by the LDAP(S) server. Base DN The base DN of LDAP server. Login Attribute The login attribute of LDAP user entry.
  • Page 68 Web Interface Timeout Setting System > Security > Session Control. Configure the idle login sessions. See System > Security > Session Control Item Definition Login Session Timeout The time in minutes that the system waits before automatically logging off. Intelligent PDU User Guide...

  • Page 69: Network Service

    Web Interface Network Service The following provides the network configurations. TCP/IPv4 Setting Display the current TCP/IPv4 settings and allow users to select the option to obtain TCP/IP settings System > Network Service > TCP/IPv4. by DHCP. See System > Network Service > TCP/IPv4 Item Definition Current...
  • Page 70 Web Interface TCP/IPv6 Setting Display the current TCP/IPv6 settings and allow users to assign the IPv6 address either by router System > Network Service > TCP/IPv6. control or manually. See System > Network Service > TCP/IPv6 Item Definition IPv6 Interface Displays the current IPv6 address.
  • Page 71 Web Interface SNMPv1 Service Setting System Tab > Network Service > SNMPv1 Allow users to perform SNMPv1 configurations. See Service. System Tab > Network Service > SNMPv1 Service Item Definition SNMPv1 Service Allow Access Enable or disable the SNMPv1 service. Click the SNMP Trap Community field to enter the SNMPv1 Page.
  • Page 72 Web Interface SNMPv1 Page Item Definition The name used to access the SNMP community from a Network Community Management System (NMS). Its maximum length is 15 characters. The IP address or IP address mask can be accessed by the NMS. A specific IP address allows access only by the NMS with the specified IP Address.
  • Page 73 Web Interface SNMPv3 Service Setting Users can perform SNMPv3 configurations. Authentication type or privacy type are provided to System Tab > Network Service > SNMPv3 Service. strengthen security. See System Tab > Network Service > SNMPv3 Service Item Definition SNMPv3 Service Allow Access Enable or disable the SNMPv3 service.
  • Page 74 Web Interface SNMPv3 Page Item Definition Access Enable or disable the SNMPv3 service. The name that identifies the SNMPv3 user. It must be 1 to 31 User Name characters long. Authentication The password used to generate the key for authentication. It must be Password 16 to 31 characters long.
  • Page 75 Web Interface Web Service Select the Enable HTTP/HTTPS option to access the HTTP/HTTPS Service and configure System Tab > Network Service > Web Service. HTTP/HTTPS port settings. See System Tab > Network Service > Web Service Item Definition Access Enable or disable HTTP/HTTPS service. HTTPS supports the following encryption algorithms: ...
  • Page 76 Web Interface Item Definition The TCP/IP port of the Hypertext Transfer Protocol (HTTP); 80 is the default value. HTTP Port Users can also change the port setting to any unused port from 5000 to 65535 to enhance security. Https Settings The TCP/IP port of the Hypertext Transfer Protocol Secure (HTTPS);...
  • Page 77 Web Interface Click the Valid Certificate link, and the Installed Certificate Page will appear. Installed Certificate Page Click the Upload Certificate link, and the Change Certificate Page will appear. Change Certificate Page Intelligent PDU User Guide...
  • Page 78 Web Interface Console Service Select the Enable options to allow access using Telnet/SSH service and configure Telnet/SSH port System Tab > Network Service > Console Service. settings. See System Tab > Network Service > Console Service Item Definition Access Enable access using Telnet or SSH version 2, which transmits user Allow Access names, passwords, and data in an encrypted format.
  • Page 79 Web Interface Item Definition SSH Settings The TCP/IP port that SSH uses to communicate; 22 is the default value. SSH Port Users can change port setting to any unused port from 5000 to 65535 to enhance security. Display the status of hostkey fingerprint to show whether it is valid or Hostkey Status invalid.
  • Page 80 Web Interface FTP Service Allow users to enable/disable the FTP server service and configure the TCP/IP port of the FTP server. The FTP server is used for upgrading Firmware. See System Tab > Network Service > FTP Service. System Tab > Network Service > FTP Service Item Definition Allow Access...

  • Page 81: Pdu Information

    Web Interface PDU Information System > About. Display the system information of the PDU. See System > About Item Definition Information Model Name Model name of the PDU. Serial Number Serial Number of the PDU. Hardware Version The hardware version of the PDU. Firmware Version The current firmware version installed on the PDU.
  • Page 82 Web Interface To restore a configuration that has been saved earlier. Click Select File to import an existing configuration file and Restore Configuration then click Submit. Intelligent PDU User Guide...

  • Page 83: Command Line Interface

    Commad Line Interface Command Line Interface Introduction How to log on Users can log on to the command line interface through either console network access (Telnet or SSH) or local access (Serial port). 1. Network access to the command line interface When user logs in with the admin username and admin password through Telnet or SSH, there are two types of interfaces available.
  • Page 84 Commad Line Interface client program (eg. PuTTY, HyperTerminal, or Tera Term) on your computer. Note: If using PuTTY to configure SSH access, please configure Line discipline of Terminal to “Force off”, as shown in Figure 5. Figure 5. The PuTTY Configuration window. How to use the Command Line Interface While using the command line interface, you can also do the following: 1.

  • Page 85: Command Lists

    1 | 2 | 3 | 5 | 10 | never Set idle time of device. Example 1: To display load configuration of the device CyberPower > devcfg show Example 2: To set overload threshold at 15A CyberPower > devcfg overload 15 Example 3: Intelligent PDU User Guide...
  • Page 86 CyberPower > bankcfg show Example 2: To set overload threshold of bank 1 at 15A CyberPower > bankcfg index b1 overload 15 Example 3: To set near overload threshold of bank 2 at 10A CyberPower > bankcfg index b2 nearover 10 oltsta Description: Show information of outlet status.
  • Page 87 Control the action of outlet. delayreboot | cancel Example 1: To turn on outlet #1 immediately CyberPower > oltctrl index 1 act on Example 2: To turn on outlet #2 with turn on delay CyberPower > oltctrl index 2 act delayon oltcfg Description: Show and set configuration of outlet action.
  • Page 88 To name outlet #1 as test_1, set turn on delay as 3 seconds, set turn off delay as 4 seconds and set reboot duration as 5 seconds with a single command CyberPower > oltcfg set 1 test_1 3 4 5 oltloadcfg Description: Show and set outlet load threshold, reset power parameters in outlet level.
  • Page 89 CyberPower > oltloadcfg show Example 2: To set overload threshold of outlet #1 at 1800W CyberPower > oltloadcfg index 1 overload 1800 Example 3: To set near overload threshold of outlet #2 at 1000W CyberPower > oltloadcfg index 2 nearover 1000...
  • Page 90 <00:00:00> Set system time. Example 1: To define timezone offset as +08:00 CyberPower > date timezone +0800 Example 2: To define the date as March 21, 2015 CyberPower > date yyyy 2015 mm 3 dd Intelligent PDU User Guide...
  • Page 91 Commad Line Interface Example 3: To define the time as 13:45:12 CyberPower > date time 13:45:12 Description: Show and configure NTP server IP, NTP update interval time. Option Argument Description show Display all NTP information If enable was set, System will set date and time from...
  • Page 92 Firmware Version: 1.0.3 Firmware Update Date: 03/08/2015 Serial Number: TALGY2001975 MAC Address: 00-0C-15-00-B9-42 Example 2: To reset the device to default parameter. CyberPower > sys reset all Description: Show and configure type of Daylight Saving Time. Option Argument Description show Display all DST information disable－Disable DST.
  • Page 93 Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec Example 1: Manual set Daylight Saving Time CyberPower > dst type manual Start time (0~23): 2 Start week of month: second Start day of week: Sun...
  • Page 94 The range of argument is from 1 to 10 (in minutes). Example 1: To change authentication type to Radius, Local Account CyberPower > login type radiuslocal admin Description: Show and configure administrator account and manager IP. Option...
  • Page 95 Input admin password : cyber pass Example 5: To enable and change the secondary administrator account information with a single command CyberPower > admin secacctac enable secname test_name secpasswd test_pswd Input admin password : cyber Pass device Description: Show and configure device account and manager IP.
  • Page 96 To display configuration of outlet users CyberPower > oltuser show Example 2: To disable the outlet user #1 CyberPower > oltuser index 1 status disable Example 3: To delete the outlet user #1 CyberPower > oltuser index 1 delete radius Description: Show and configure information of RADIUS server.
  • Page 97 Enter the following command to add Radius server information configuration with a single command: radius add <Server IP> <Share Secret> <Server Port> For example: CyberPower > radius add 192.168.203.55 testsecret 150 Note: This single command could not be executed successfully if there are two Radius servers to be set already.
  • Page 98 Delete primary/secondary LDAP server. secdel Example 1: To add LDAP Server CyberPower > ldap add Input LDAP Server Type [openldap | ad]: ad Input IP address: 192.168.26.33 Use SSL [enable | disable]: disable Input LDAP port: 389 Input base DN: dc=cyber,dc=com Input login attribute: cn Input AD Domain: cyber.com...
  • Page 99 <system dns> Set DNS of system Example 1: To disable DHCP and define IP address to 192.168.26.33 CyberPower > tcpip dhcp disable ip 192.168.26.33 tcpip6 Description: Show and configure status of IPv6 router control, IPv6 manual IP. Option Argument...
  • Page 100 Enter the following command to perform all parameters configuration with a single command: snmpv1 set <1 | 2 | 3 | 4> <Community> <IP Address> <readonly | readwrite | forbidden> For example: CyberPower > snmpv1 set 3 CyberPower 192.168.203.91 readonly Intelligent PDU User Guide...
  • Page 101 IP Address: 192.169.30.58 Auth Protocol: MD5 Priv Protocol: aes Example 2: To change the user name of second SNMPv3 user to CyberPower CyberPower > snmpv3 index 2 name CyberPower Example 3: To enable the third SNMPv3 user CyberPower > snmpv3 index 3 status enable Example 4: To change the IP address of forth SNMPv3 user to 192.168.203.66...
  • Page 102 <1 | 2 | 3 | 4> <User Name> <IP Address> <md5 | sha | none> <Auth Key> <aes | des | none> <Priv Key> For example:. CyberPower > snmpv3 set 1 CyberPower 192.168.203.90 sha test_authkey_123456 des test_privkey_123456 trap Description: Show and configure information of SNMP trap receiver.
  • Page 103 CyberPower > trap index 5 status enable. Example 6: To change the community name of second trap receiver to CyberPower with the condition that the SNMP version of trap receiver must be SNMPv1. CyberPower > trap index 2 community CyberPower...
  • Page 104 For SNMPv1: trap add <Trap Name> <Trap Receiver IP> v1 <Community> For example: CyberPower > trap add CyberPower 192.168.203.16 v1 test For SNMPv3: trap add <Trap Name> <Trap Receiver IP> v3 <1 | 2 | 3 | 4> For example: CyberPower >...
  • Page 105 <ssh port> uses to communicate. Example 1: To enable Telnet as console type CyberPower > console telnet enable Example 2: To disable SSH as console type CyberPower > console ssh disable Note: The telnet and the ssh modes are options for switching between each other. For example, the telnet will be automatically disabled once ssh is enabled as console type and vice versa.
  • Page 106 Clear the existing event logs. Example 1: CyberPower > eventlog show 12/11/2015 03:32:08 Admin login from 192.168.26.33. …………………………………….. Then use the following keys to navigate the event log. Description SPACE View the next page of event log.
  • Page 107 Delete Syslog server for 1 to 4 servers. s3del s4del Example 1: To view syslog information of server 1 CyberPower > syslog s1 show IP: 192.168.26.33 Port: 514 Example 2: To view syslog information of server 2 CyberPower > syslog s2 show IP: 192.168.203.89...
  • Page 108 Commad Line Interface syslog add <Server IP address> <Server Port> For example: CyberPower > syslog add 192.168.203.65 180 Note: This single command could not be executed successfully if there are four Syslog servers to be set already. menumode Description: Switch mode as Menu Mode.

  • Page 109: Save And Restore Configuration Settings

    Save and Restore Configuration Settings Save and Restore Configuration Settings Option 1: via Web interface System > About. You can easily save and restore the device configuration to your local PC on To save the configuration file, click “Save” to save the configuration to your local PC. The text file will have a default format of YYYY_MM_DD_HHMM.txt.
  • Page 110 Save and Restore Configuration Settings Note: (1) The SSH setting on the PDU must be Enabled. (2) <filename> is the filename of the configuration file with a default format of YYYY_MM_DD_HHMM.txt. (3) <user> is the username of the SSH account on the PDU. (4) Ensure to add “:”...

  • Page 111: Pdu Network Daisy Chain

    PDU Network Daisy Chain PDU Network Daisy Chain The daisy-chain function allows up to four PDUs to be connected together to be monitored and controlled from one IP address. When PDUs are connected, two roles are defined: Host and Guest. Up to three Guest PDUs can be connected to one Host PDU.
  • Page 112 PDU Network Daisy Chain What remote management protocols are supported in PDU daisy-chains? Currently users can monitor and control daisy-chained PDUs through Web interface (HTTP/HTTPS) or SNMP protocols. What functions on the Web pages does daisy-chain support? Please find in below table: Summary Device Status Outlet Status...
  • Page 113 PDU Network Daisy Chain What will happen if an Ethernet cable is disconnected in the PDU daisy-chain? For example, if four PDUs are connected and the cable connecting Guest 1 and 2 is disconnected, then Guest 2 and 3 will no longer be detected by the Host PDU. An event showing that Guest 2 and 3 are removed will be recorded in the Host PDU.
  • Page 114 PDU Network Daisy Chain Will the Status Records of the Guest PDUs logged in the Host PDU be cleared if the Guest PDUs are disconnected from the Host PDU? Yes, once the Guest PDUs are removed, the Status Records logged in the Host PDU will be cleared. As long as the Host PDU does not connect to other PDUs, the Status Records of the disconnected PDU can be displayed when it is re-connected to the Host PDU.

  • Page 115: Firmware Upgrade

    - ftp> open 192.168.22.126 21 (for example: 192.168.22.126 is the current IP of the PDU and 21 is the default ftp port for the PDU) - Connected to 192.168.22.126. - 220 CyberPower FTP Server Ready. - User (192.168.22.126:(none)):cyber - 331 User name okay, need password.
  • Page 116 - ftp> open 192.168.22.126 21 (for example: 192.168.22.126 is the current IP of the PDU and 21 is the default ftp port for the PDU) - Connected to 192.168.22.126. - 220 CyberPower FTP Server Ready. - User (192.168.22.126:(none)):cyber - 331 User name okay, need password.
  • Page 117 Use the following steps to upgrade the firmware. 1. Download the Upgrade and Configuration Utility from www.cyberpower.com 2. Open the Upgrade and Configuration Utility from Start > All Programs > CyberPower Upgrade and Configuration Utility. 3. Wait for search to finish (shown in Figure 1).
  • Page 118 Firmware Upgrade 4. Check the checkbox to select devices listed in the Operation View (Shown in Figure 2). Figure 2 5. Make sure Account and Password are valid on selected devices (Shown in Figure 3). Figure 3. 6. Select Upgrade Firmware. Intelligent PDU User Guide...
  • Page 119 Firmware Upgrade 7. Click Browse to locate and select the firmware and data file to be updated (Shown in Figure 4). Figure 4. 8. Click OK in the Upgrade Firmware confirmation window (Shown in Figure 5). Figure 5. Intelligent PDU User Guide...
  • Page 120 Firmware Upgrade 9. The upgrade progress bar will show in Last Action column (Shown in Figure 6). Figure 6. 10. The result of firmware upgrade will show in Result column (Shown in Figure 7). Figure 7. Note: If you don’t want to wait for the firmware upgrade, you can stop the process by clicking Abort in the Action menu.
  • Page 121 Use the following steps to upgrade the firmware. 1. Download the latest firmware from www.cyberpower.com 2. Extract the file to the root directory of a USB flash drive with FAT32 formatting. Please note that the two files below should be available in order to complete the firmware upgrade process: *cpsmpdumadata_xxx.bin...
  • Page 122 Firmware Upgrade Note: Only firmware version 1.10 and above supports the functionality to update firmware via SCP. For Windows Users: 1. Download any PuTTY Secure Copy client (PSCP) utility. 2. Save the firmware files and the PSCP Utility in the same folder. 3.
  • Page 123 Firmware Upgrade scp <filename> <user>@< IP address of PDU>: Note: (5) The SSH setting on the PDU must be Enabled. (6) <filename> is the filename of the firmware file. There are two firmware files to upload: cpsmpdumafw_XXX.bin and cpsmpdumadata_XXX.bin. In order to upgrade the firmware version both files need to be uploaded.
  • Page 124 Contact Information Feel free to contact our Tech Support department with installation, troubleshooting, or general product questions. Cyber Power Systems, Inc. Web: www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN55379 Toll-free: (877) 297-6937 For all other regions: Please visit our website for local contact information.
