- Page 1 YOUR ULTIMATE ALLY IN POWER POWER DISTRIBUTION UNITS 1U / 2U / 0U SWITCHED / METERED / MONITORED SERIES USER MANUAL Cyber Power Systems (USA), Inc. 4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 CyberPowerSystems.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS MODEL LIST Switched Metered by Outlet Series TABLE OF CONTENTS....... . .1 MODEL LIST. -
Page 3: Introduction
INTRODUCTION Package Contents, 1U Models 6 (M3 x 6) Cord Retention Tray Mounting Screws Mounting Brackets: 2 short and 2 long Cable Ties: Qty 12 (NEMA outlet PDU) Qty 27 (IEC outlet PDU) 12 Bracket Mounting Screws (Flat Head M4 x 8) RJ45 / DB9 Serial Port Connection Cable 6 (M5 x 12) Rack Mounting Screws and Washers User’s Manual, Warranty Registration Card,... -
Page 4: Package Contents, 0U Models
PDU41101 / PDU31002 / PDU31101 PDU41104 / PDU31006 / PDU31114 Before using, please check to ensure the package contains all the items shown above. If there are missing parts, please contact your local CyberPower technical support team for assistance. CHECK! -
Page 5: Product Features - 1U 15A Models

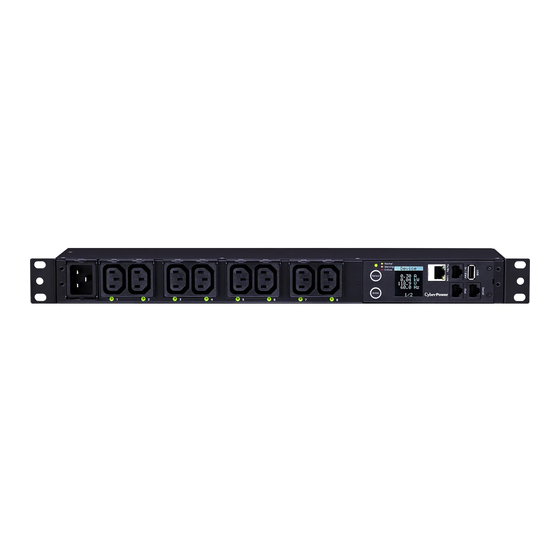

PRODUCT FEATURES - 1U 15A MODELS Front Panel Description NEMA Type IEC Type - Normal - Warning - Critical Select Enter AC Inlet/ AC Power Cord - Used to connect PDU to USB Port - Used to upgrade the frmware via a utility power or UPS. -
Page 6: Technical Specifications - 1U 15 A Models
TECHNICAL SPECIFICATIONS - 1U 15 A MODELS PDU81001 PDU81004 PDU71001 PDU71004 Model Name PDU41001 PDU41004 PDU31001 PDU31004 Input Nominal Voltage 100 - 120 V 100 - 240 V Frequency 50 / 60Hz Maximum Input Current 12A UL (Derated) 10 A CE / 12A UL (Derated) Plug Type NEMA 5-15P IEC 320 C14... -
Page 8: Technical Specifications - 1U 20A Models
TECHNICAL SPECIFICATIONS - 1U 20A MODELS PDU81002 PDU81005 PDU81006 PDU71002 PDU71005 PDU71006 Model Name PDU41002 PDU41005 PDU41006 PDU31002 PDU31005 PDU31006 Input Nominal Voltage 100 - 120 V 100 - 240 V 200 - 240 V Frequency 50 / 60Hz Maximum Input Current 16A CE, UL (Derated) NEMA L5-20P Plug Type... -
Page 9: Product Features - 2U Models
PRODUCT FEATURES - 2U MODELS Front Panel Description NEMA Type IEC Type AC Inlet/ AC Power Cord - Used to connect PDU to Serial Port (RJ45 modular port) - Used to connect to a utility power or UPS. PC and control the PDU locally via SSH/Telnet. AC Output Receptacles - Provides power for Daisy Chain (Out) Port –... -
Page 10: Technical Specifications - 2U Models
TECHNICAL SPECIFICATIONS - 2U MODELS PDU81003 PDU81007 PDU81008 PDU81009 PDU71003 PDU71007 PDU71008 PDU71009 Model Name PDU41003 PDU41007 PDU41008 PDU41009 PDU31003 PDU31007 PDU31008 PDU31009 Input Nominal Voltage 100 - 120 V 200 - 240 V Frequency 50 / 60Hz Maximum Input Current 24A UL (Derated) Plug Type NEMA L5-30P... -
Page 11: Product Features - 0U 16/20A Models
PRODUCT FEATURES - 0U 16/20A MODELS Front Panel Description NEMA Type IEC Type Rear Panel (both models) AC Inlet/ AC Power Cord - Used to connect PDU to utility power or UPS. Outlet Indicator (switched series only) – Indicates if the outlet is providing power to connected equipment. -
Page 12: Technical Specifications - 0U 16/20A Models
TECHNICAL SPECIFICATIONS - 0U 16/20A MODELS PDU81101 PDU81104 PDU81404 Model Name PDU41101 PDU31114 PDU31414 PDU41104 PDU41404 PDU31101 Input Nominal Voltage 100 - 120 V 200 - 240 V Frequency 50 / 60Hz Maximum Input 16A UL (Derated) 16A CE 16A UL (Derated) 16A CE Current NEMA L5-20R... -
Page 13: Product Features - 0U 30/32A Models
PRODUCT FEATURES - 0U 30/32A MODELS Front Panel Description NEMA Type IEC Type Rear Panel (both models) AC Inlet/ AC Power Cord - Used to connect PDU to utility power or UPS. Outlet Indicator (switched series only) – Indicates if the outlet is providing power to connected equipment. -
Page 14: Technical Specifications - 0U 30/32A Models
TECHNICAL SPECIFICATIONS - 0U 30/32A MODELS PDU81102 PDU81105 PDU81405 Model Name PDU41102 PDU31106 PDU31406 PDU41105 PDU41405 PDU31102 Input Nominal Voltage 100 - 120 V 200 - 240 V Frequency 50 / 60Hz Maximum Input 24A UL (Derated) 32A CE Current Plug Type NEMA L5-20P NEMA L6-30P... -
Page 15: Installation Guide
INSTALLATION GUIDE Horizontal Installation - 1U Models CAUTION! Please use only the provided screws through the entire installation process. CAUTION! Step 1. Mounting Bracket Installation Use the provided Mounting Bracket Screws (8) to attach the SHORT Mounting Brackets (2) to the PDU. If you plan on attaching the Cord Retention Tray to the PDU, you will need to use the LONG Mounting Brackets (2). - Page 16 INSTALLATION GUIDE Horizontal Installation - 1U Models Step 2. PDU Mounting Use the supplied Washers (4) and Screws (4) to secure the PDU to your existing rack system. Note: You may also use the screw sets provided by the rack to secure the PDU.
- Page 17 INSTALLATION GUIDE Horizontal Installation - 1U Models Step 3. Cord Retention Tray Installation (optional) Adjust the length of the Cord Retention Tray till the screw hole on the Tray and PDU are aligned. Attach the Cord Retention Tray to the PDU with the 4 supplied Cord Retention Tray Mounting Screws. Tighten the Cord Retention Tray with the screw on it.
-
Page 19: Horizontal Installation - 2U Models
INSTALLATION GUIDE Horizontal Installation - 2U Models Step 3. Cord Retention Tray Installation (optional) Adjust the length of the Cord Retention Tray till the screw hole on the Tray and PDU are aligned. Attach the Cord Retention Tray to the PDU with the 8 supplied Cord Retention Tray Mounting Screws. Tighten the Cord Retention Tray with the screw on it. -
Page 20: Vertical Installation - 1U Models
INSTALLATION GUIDE Vertical Installation - 1U Models Step 1. Mounting Bracket Installation Use the provided Mounting Bracket Screws (8) to attach the SHORT Mounting Brackets (2) to the PDU. Step 2. PDU Mounting Use the supplied Washers (2) and Screws (2) to secure the PDU to your existing rack system. Note: You may also use the screw sets provided by the rack to secure the PDU. -
Page 21: Vertical Installation - 0U Models
INSTALLATION GUIDE Vertical Installation - 0U Models Step 1. PDU Mounting Align the Keyhole Mounts to the Keyhole Slots on the rack. Insert and slide down to lock frmly into the place. If there is no Keyhole Slot on your rack, please choose from the following methods that is best for your rack deployment to secure the PDU. - Page 22 INSTALLATION GUIDE Vertical Installation - OU Models Step 2. Cord Retention Tray Installation (optional) Adjust the length of the Cord Retention Tray till the screw hole on the Tray and PDU are aligned. Attach the Cord Retention Tray to the PDU with the supplied Cord Retention Tray Mounting Screws. Tighten the Cord Retention Tray with the screw on it.
-
Page 23: Power Cord Direction Change - Ou Models
INSTALLATION GUIDE Power Cord Direction Change - OU Models Step 1. Remove the four screws from the power cord cover. Keep the screws for later use. Step 2. Rotate the power cord cover. Step 3. Install the power cord cover back to the PDU with the four screws. -
Page 24: Locking Power Cord - For Iec Type Pdu
INSTALLATION GUIDE Locking Power Cord - For IEC Type PDU Input Power Cord Step 1. Align and insert the Cable Tie from the upper side of the Fixed Stand and fasten it as shown below. Step 2. Align and insert the Cable Tie from the bottom side of the Fixed Stand and fasten it as shown below. Output Power Cord Step 1. -
Page 25: Electrical Installation
Step 1. Receptacle evaluation Ensure that the plug type of your PDU unit matches the wall receptacle type that you are using. Step 2. Plug the PDU into a CyberPower UPS system (recommended) or the wall receptacle. Step 3. Attach equipment It is extremely important not to exceed the PDUs maximum current load (as outlined in the Specifcations section). -
Page 26: Network Installation
“arp -s [available IP address] [MAC address of PDU]”. Step 2 – Establish the PDU IP address Example: IP Address : arp-s 192.168.20.240 Assigning an IP address to the CyberPower PDU requires MAC Address: 00-0c-15-80-00-01 the user to have an available IP address that is valid on the 3. -
Page 27: Operation
Bank 2 Information (2U Series) Environment Status Telnet and SSH (Displays when the ENVIROSENSOR is connected) The CyberPower PDU provides Telnet and Secure Shell (SSH) as Remote Management methods. Telnet uses user Alert name and password as basic security while SSH has a higher security level with encryption of the transmitted packets including user name, password, and data. -
Page 28: Led Indicators
Client List on Environmental Monitoring (optional) the web interface. CyberPower PDUs along with the environmental sensor (ENVIROSENSOR) provide temperature and humidity monitoring in a server closet and/or datacenter remotely. Step 3. Notifcation... -
Page 29: Firmware Upgrade
- Connected to 192.168.22.126. • cpsmpdumafw_XXX.bin - 220 CyberPower FTP Server Ready. • cpsmpdumadata_XXX.bin - User (192.168.22.126:(none)):cyber Note that the XXX is not part of the fle name but is where - 331 User name okay, need password. - Page 30 OPERATION Firmware Upgrade 4. Check the checkbox to select devices listed in the 8. Click OK in the Upgrade Firmware confrmation window Operation View (Figure 2). (Figure 5). Figure 2 Figure 5 5. Make sure Account and Password are valid on selected 9.
-
Page 31: Troubleshooting
5. Select Main and Yes to start the upgrade process. Option 3: Use a USB Flash Drive Use the following steps to upgrade the frmware. Main 1. Download the latest frmware from www.cyberpower.com. Firmware Firmware Firmware Firmware 2. Extract the fle to the root directory of a USB fash drive... -
Page 32: Conformance Approvals
CUSTOMER SERVICE & WARRANTY Sure to Confgure System to Default Product Registration 1. Yes Thank you for purchasing a CyberPower product. 2. No Prompt product registration entitles coverage under the Limited Warranty and also allows the opportunity to be notifed of product enhancements, upgrades, and other announcements. -
Page 33: Appendix B-Power Device Network Utility
APPENDIX B-POWER DEVICE NETWORK UTILITY Overview Step 5. Select Finish to fnalize the installation (Figure 4). The CyberPower Power Device Network Utility is an easy- to-use interface which is used for establishing IP addresses on CyberPower PDU devices. Installation Step 1. Download the Power Device Network Utility software from www.cyberpower.com. - Page 34 [Tools=>Device Setup]. In the Device Network Setting gateway address. This allows the device(s) to function Menu, enter a valid IP address, subnet mask, and gateway properly on the network and interface with CyberPower address to setup the PDU device. Management Console.
-
Page 35: Appendix C - Pdu Daisy-Chain Function
APPENDIX C - PDU DAISY-CHAIN FUNCTION The daisy-chain function allows up to four PDUs to be What functions on the web pages does daisy- connected together to be monitored and controlled from chain support? one IP address. Find in the table below. Summary Host Device Status... -
Page 36: Troubleshooting
