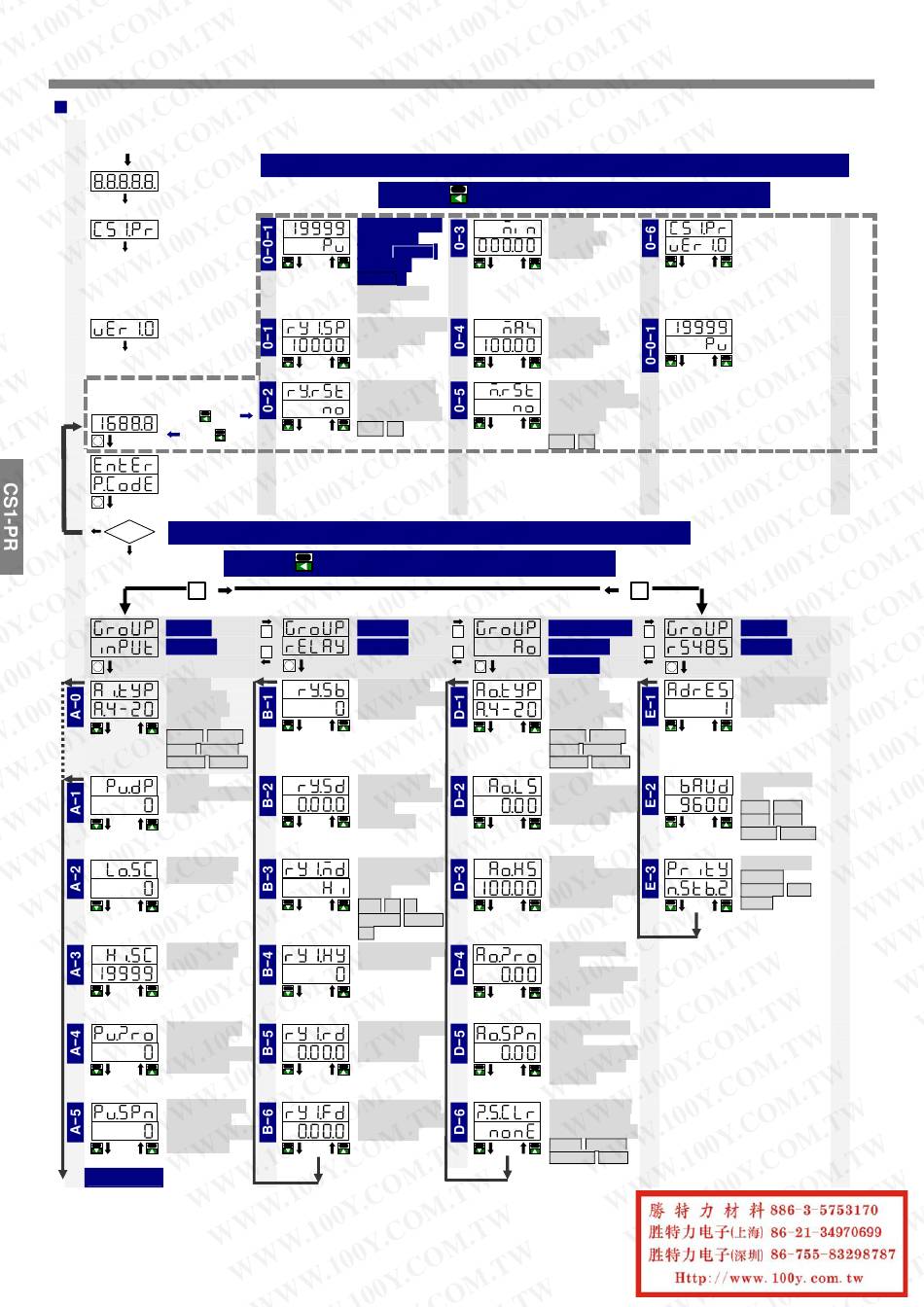

OPERATING DIAGRAM

Power ON
Self-diagnosis
Show the
model number
Show
the firmware
version
MEASURING
PAGE
Press 1sec
Press 1sec
ENT
Enter the
password to
access
programming
ENT
Level
Pass Code
NO
YES
Default:1000
▲
INPUT
GROUP
ENT
Ai.tYP:
Analogue
Input type
selection
v.0-10 v. 0~5
v.1-5 A.0-10
A.0-20 A.4-20
Pv.dP:
Decimal Point
of PV
0~0.0000
Lo.SC: Low
scale of PV
-19999~+29999
Hi.SC: High
scale of PV
-19999~+29999
Pv.Zro: Fine
Low point
Adjustment for
PV display
-19999~+29999
Pv.SPn: Fine
High point
Adjustment for
PV display
-19999~+29999
Next Page
C1-01-6/7-2007-11-07
(The detail description of operation, please refer to operating manual.)
Press
This page will
show out,
when dSPLY
set to be
RS485.
Pv: Present
Value
rY.1.SP.: Relay
1 Set-point
setting
-19999~+29999
rY.rSt: Reset
for energized
Latch of Relay
YES no

Programming Level

Press for 1 sec. can back to Measuring
▼
RELAY
▲
GROUP
ENT
rY.Sb: Start
band for Relay
energized
0~9999counts
rY.Sd: Start
delay time for
Relay
energized
0:00.0~
9(m):59.9(s)
rY1.Md: Relay
1 energized
mode
oFF Lo Hi
Lo.HLd Hi.HLd
do
rY1.HY.: Relay
1 Hysteresis
0~5000counts
rY1.rd: Relay 1
energized
delay time
0:00.0~
9(m):59.9(s)
rY1.Fd: Relay
1 de-energized
delay time
0:00.0~
9(m):59.9(s)

User Level

for 1 sec. can back to Measuring
Min:PV
Minimum
storage
Checking only
MAX:PV
Maximum
storage
Checking only
M.rSt: Reset
for Maximum &
Minimum
storage
YES no
▼
ANALOGUE
▲
OUTPUT
GROUP
ENT
Ao.Typ:
Analogue
Output type
selection
v.0-10 v. 0~5
v.1-5 A.0-20
A.4-20 A.0-10
Ao.LS:
Analogue Low
Output versus
Low Scale
-19999~+29999
Ao.HS:
Analogue High
Output versus
High Scale
-19999~+29999
Ao.Zro: Fine
Zero
Adjustment for
Analog Low
Output
-38011~+27524
Ao.SPn: Fine
Span
Adjustment for
Analog High
Output
-38011~+27524
Z.S.CLr: Zero
& Span Clear
for Adjustment
nonE Ao.Zro
Ao.SPn botH
model number
firmware
version
Checking only
Cyclic to first
page
▼
▼
RS485
▲
GROUP
ENT
Adres: Device
number of the
meter
1~255
baud: Baud
rate
1200 2400
4800 9600
19200 38400
PritY: Parity
n.Stb.1
n.Stb.2 odd
EvEn
