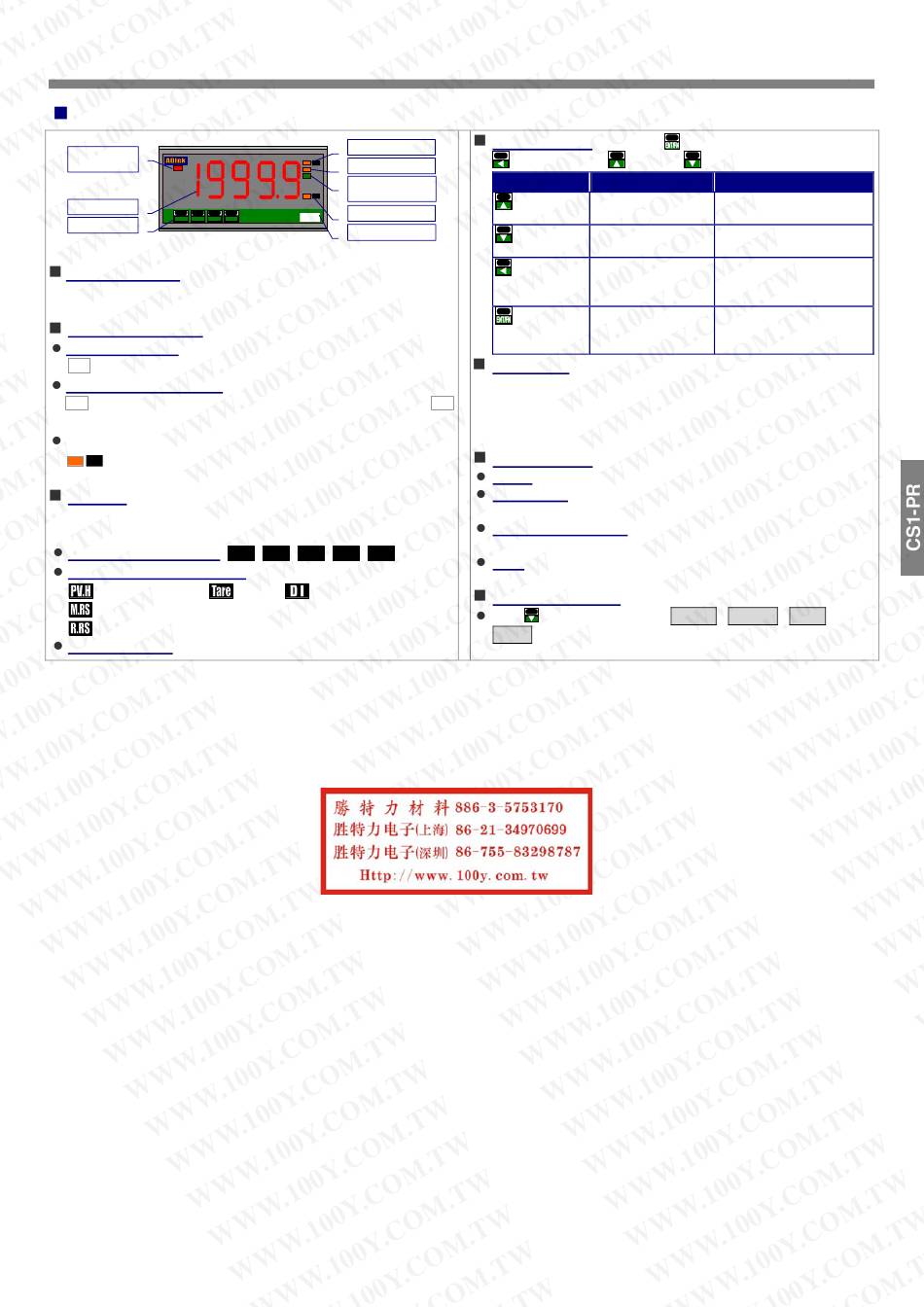

FRONT PANEL:
Relay status
Indication
R L 1
Display screen
ENT/FN ? ? ?
Operation Key

Numeric Screens

0.8"(20.0mm) red high-brightness LED for 5 digital present
value.

I/O Status Indication

Relay Energized: 1 square red LED
RL1
display when Relay 1 energized;
RS485 Communication: 1 square orange LED
COM
will flash when the meter is receive or send data, and
flash quickly means the data transient quicker.
Max/Mini Hold indication: 2 square orange LEDs
M.H
displayed: When the display function has been selected
CO
in Maximum or Minimum Hold function.

Stickers:

Each meter has a sticker what are functions and engineer
label enclosure.
H H
Relay energized mode:
Down key functions mode:
PV.H(PV Hold) /
M.RS(Maximum or Minimum Reset) /
R.RS(Reset for Relay Latch)
Engineer Label: over 80 types.
Max. Hold status
M.H
Comm. status
CO M
CI11
Front Key
function status
M.H
Mini. Hold status
2
Kg / c m
Engineer Unit
L L
H i L o D O
Tare / DI(Digital Input)
Operating Key: 4 keys for
Shift(Escape) /
Setting Status
Increase number
Up key
Decrease number
Down key
Shift the setting
Shift key
Setting Confirmed
Enter/Fun
key
Pass Word: Settable range:0000~9999;
User has to key in the right pass word so that get into
COM
【Programming Level】 . Otherwise, the meter will go back to
measuring page. If user forgets the password, please contact
with the service window.
Function Lock: There are 4 levels programmable.
None: no lock all.
User Level: User Level lock. User can get into User Level for
checking but setting.
Programming Level: Programming level lock. User can get
into programming level for checking but setting.
ALL: All lock. User can get into all level for checking but
setting.
Front Key Function
The Key can be set to be rEL.Pv / Pv.HLd / M.rSt /
rY.rSt programmable.
Enter(Function) /
Up key / Down key
Function Index
Go back to previous
function index
Go to next
function index
Go back to this function
position index, and abort the
setting
From the function index
and save to to get into setting status
EEProm
