CARDIOSTRONG EX90 Plus Assembly And Operating Instructions Manual page 19

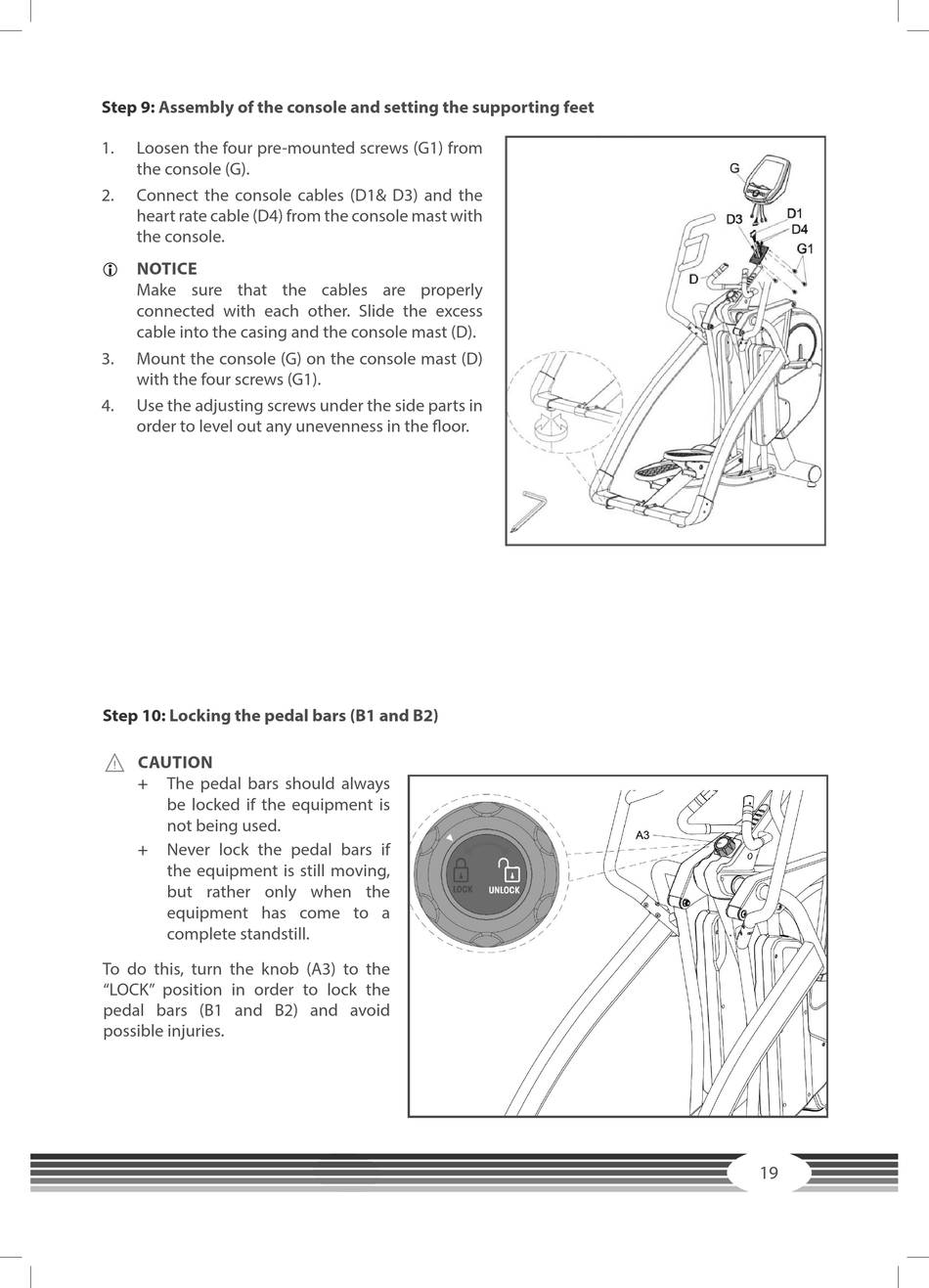

Step 9: Assembly of the console and setting the supporting feet
1. Loosen the four pre-mounted screws (G1) from
the console (G).
2. Connect the console cables (D1& D3) and the
heart rate cable (D4) from the console mast with
the console.
NOTICE
L
Make sure that the cables are properly
connected with each other. Slide the excess
cable into the casing and the console mast (D).
3. Mount the console (G) on the console mast (D)
with the four screws (G1).
4. Use the adjusting screws under the side parts in
order to level out any unevenness in the floor.
Step 10: Locking the pedal bars (B1 and B2)
⚠ CAUTION
+ The pedal bars should always
be locked if the equipment is
not being used.
+ Never lock the pedal bars if
the equipment is still moving,
but rather only when the
equipment has come to a
complete standstill.
To do this, turn the knob (A3) to the
"LOCK" position in order to lock the
pedal bars (B1 and B2) and avoid
possible injuries.
19
