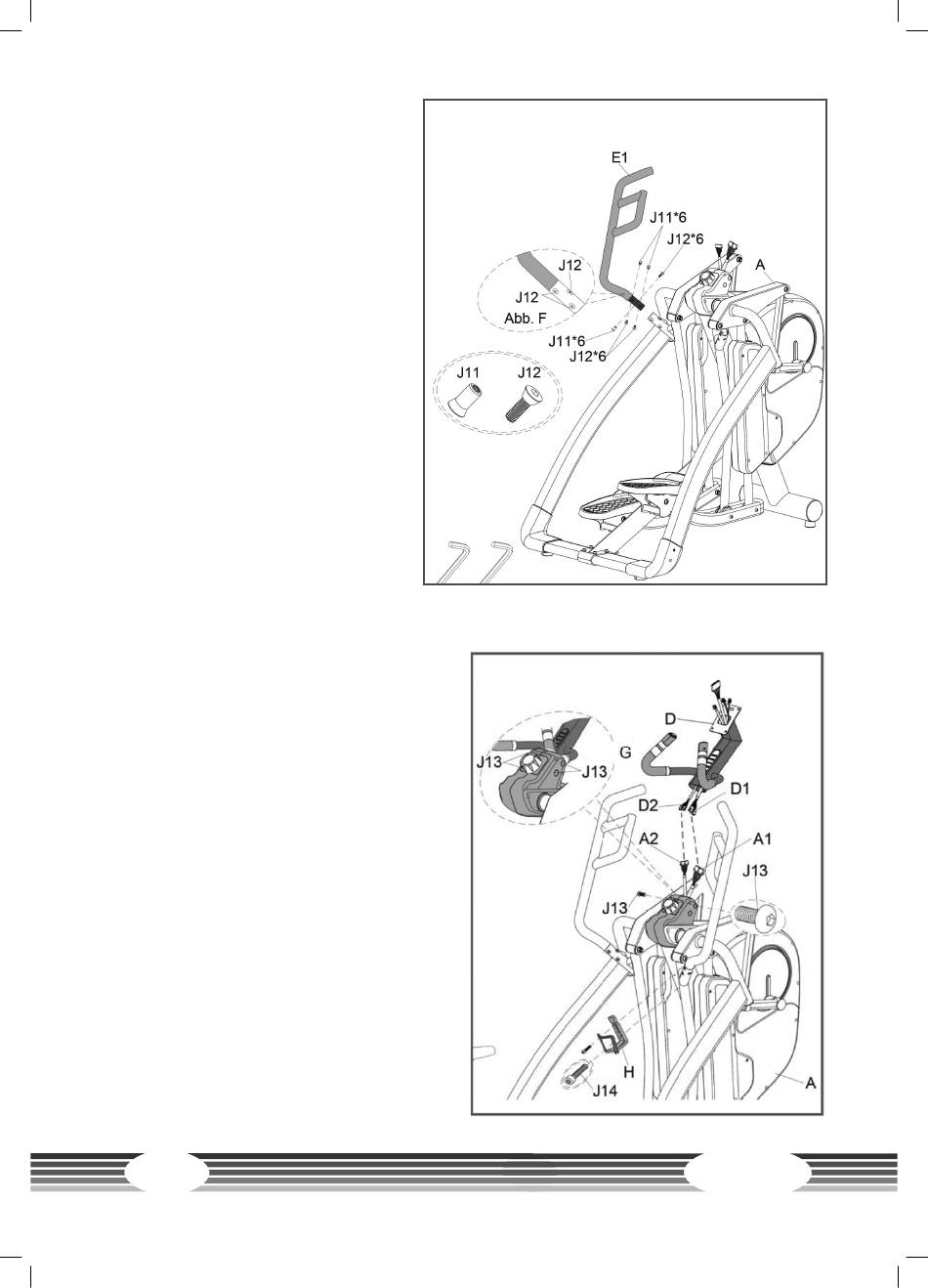

Step 7: Assembly of the handles
1. Loosen the six pre-mounted screws
(J12 and J11) from the left handle
(E1).
2. Connect the left handle (E1) with
the main frame (A) by tightening all
screws (J12 and J11) with two 6mm
Allen keys; see figure F.
3. Repeat the process for the right
handle (E2).
Step 8: Assembly of the console mast and the bottle holder
1. Connect the cable (D1 and D2) from the
console mast (D) with the cables (A1 and
A2) from the main frame (A).
2. Mount the console mast (D) on the main
frame (A) with two screws (J3) and two pre-
mounted screws (J13); see figure G.
3. Mount the bottle holder (H) on the main
frame (A) with two screws (J14).
