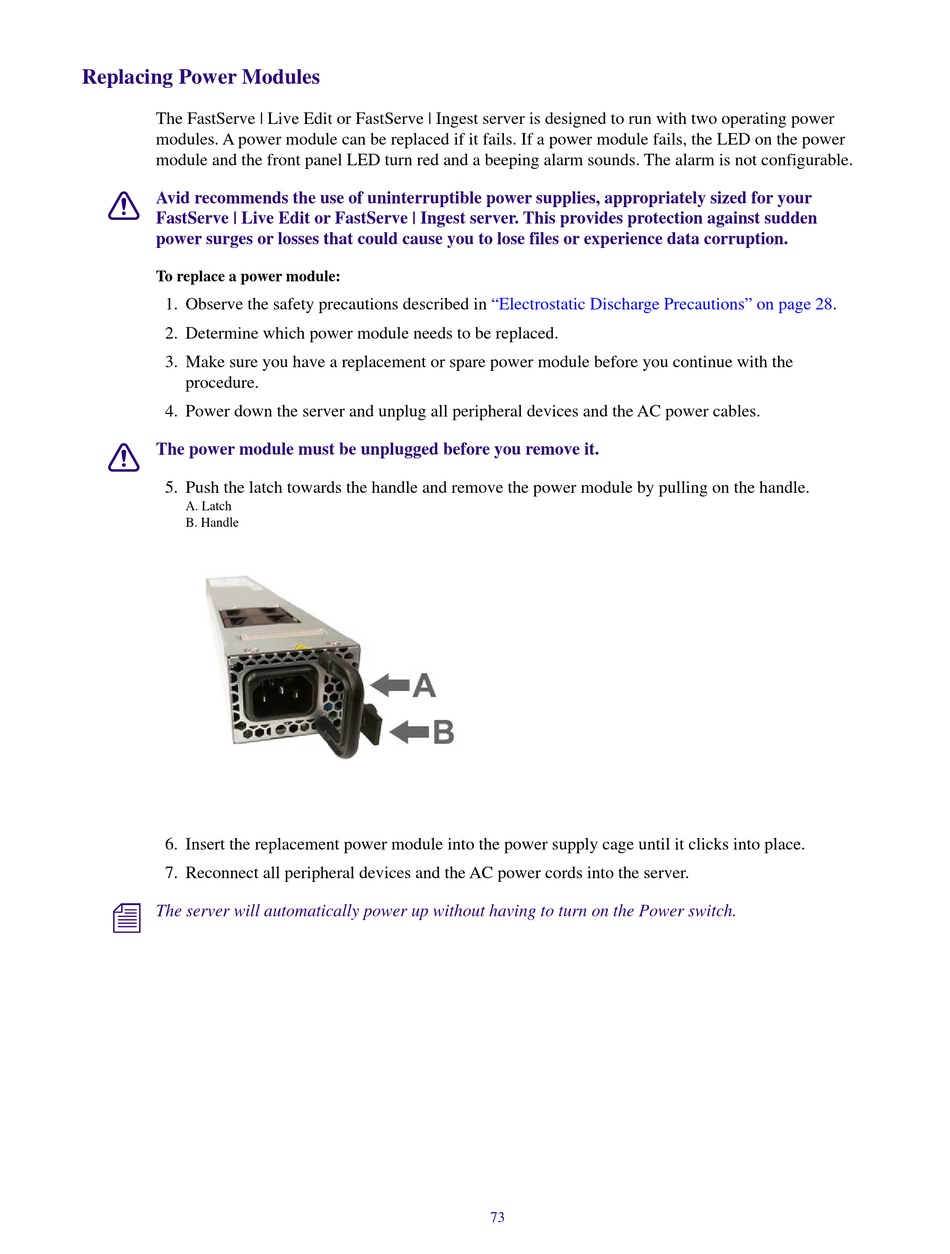

Replacing Power Modules

The FastServe | Live Edit or FastServe | Ingest server is designed to run with two operating power
modules. A power module can be replaced if it fails. If a power module fails, the LED on the power
module and the front panel LED turn red and a beeping alarm sounds. The alarm is not configurable.
c
Avid recommends the use of uninterruptible power supplies, appropriately sized for your
FastServe | Live Edit or FastServe | Ingest server. This provides protection against sudden
power surges or losses that could cause you to lose files or experience data corruption.
To replace a power module:
1. Observe the safety precautions described in
2. Determine which power module needs to be replaced.
3. Make sure you have a replacement or spare power module before you continue with the
procedure.
4. Power down the server and unplug all peripheral devices and the AC power cables.
c
The power module must be unplugged before you remove it.
5. Push the latch towards the handle and remove the power module by pulling on the handle.
A. Latch
B. Handle
6. Insert the replacement power module into the power supply cage until it clicks into place.
7. Reconnect all peripheral devices and the AC power cords into the server.
n
The server will automatically power up without having to turn on the Power switch.
"Electrostatic Discharge Precautions" on page
73
28.
