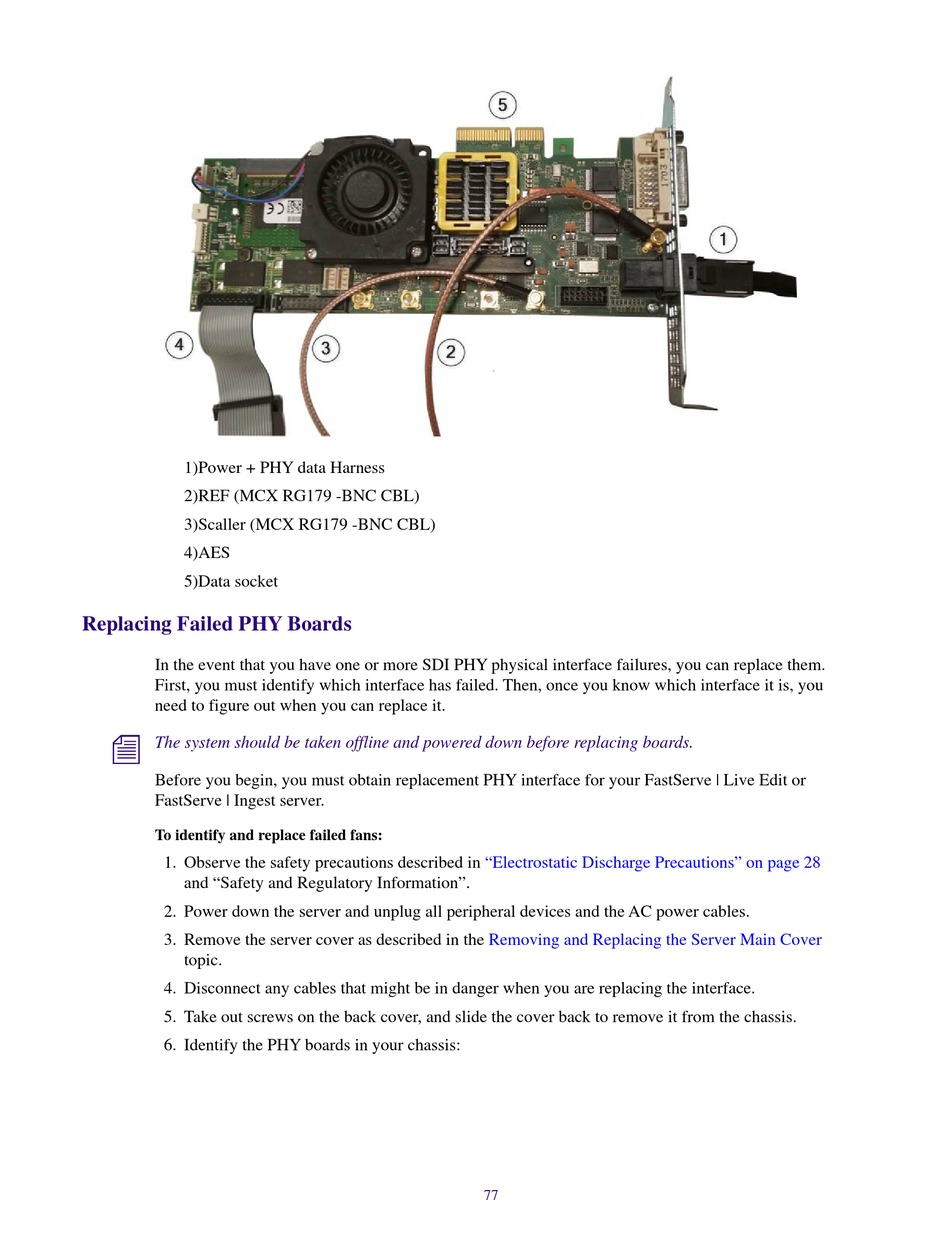

1)Power + PHY data Harness
2)REF (MCX RG179 -BNC CBL)
3)Scaller (MCX RG179 -BNC CBL)
4)AES
5)Data socket

Replacing Failed PHY Boards

In the event that you have one or more SDI PHY physical interface failures, you can replace them.
First, you must identify which interface has failed. Then, once you know which interface it is, you
need to figure out when you can replace it.
n
The system should be taken offline and powered down before replacing boards.
Before you begin, you must obtain replacement PHY interface for your FastServe | Live Edit or
FastServe | Ingest server.
To identify and replace failed fans:
1. Observe the safety precautions described in
and "Safety and Regulatory Information".
2. Power down the server and unplug all peripheral devices and the AC power cables.
3. Remove the server cover as described in the
topic.
4. Disconnect any cables that might be in danger when you are replacing the interface.
5. Take out screws on the back cover, and slide the cover back to remove it from the chassis.
6. Identify the PHY boards in your chassis:
"Electrostatic Discharge Precautions" on page 28
Removing and Replacing the Server Main Cover
77
