Hardware Components

Linux CentOS 7.4 Server Hardware

The FastServe | Live Edit / FastServe | Ingest server ships with:
• 2x 1-Gb and 2x 10-Gb Ethernet ports,
• 4x USB ports (2 front panel / 2 back panel),
• 2x Serial interfaces,
• 1x VGA maintenance port,
• 1x XLR LTC input,
• Reference Input and Ouput,
• The FastServe | Live Edit / FastServe | Ingest has two redundant power supply modules that set
the voltage automatically in range 100 V - 240 V at 47-63Hz.

Front Panel

The front of the FastServe | Live Edit / FastServe | Ingest server provides access to sixteen (16)
media drives for UHDS model servers and contain activity LEDs, and storage error LED, two USB
sockets and the Power button.
Each drive can be locked and unlocked with the use of a key that is provided with your server.

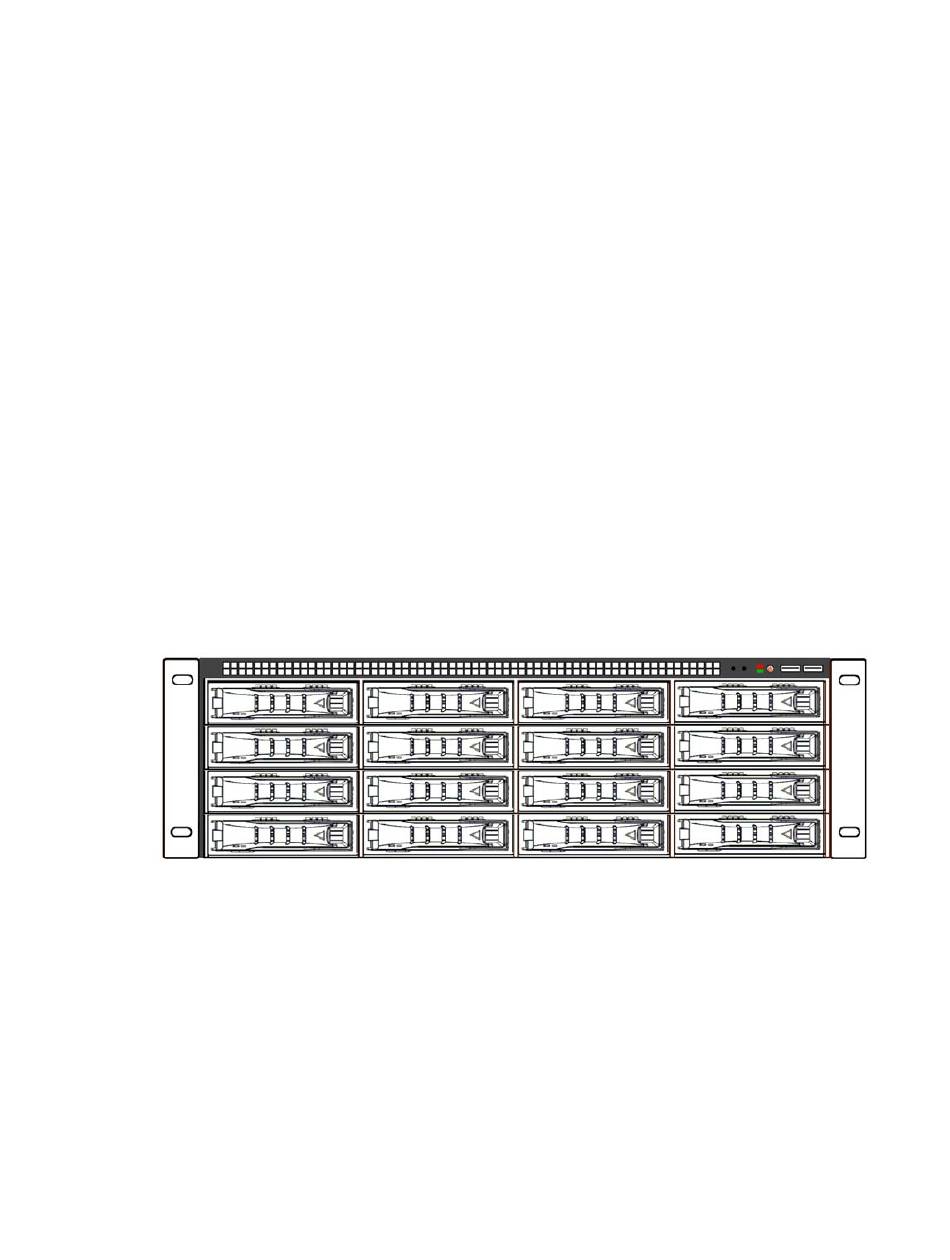

Front of the Server (front cover removed)
Regarding media drives, each media drive has a blue and red LED on the bottom front of the drive.
The left LED (blue) is lit when a drive has power and flashes when the drive is in use. The right LED
(red) is lit when an error is detected with the drive and the drive needs to be replaced. Details on the
media drive LED indicators are in the following table.
