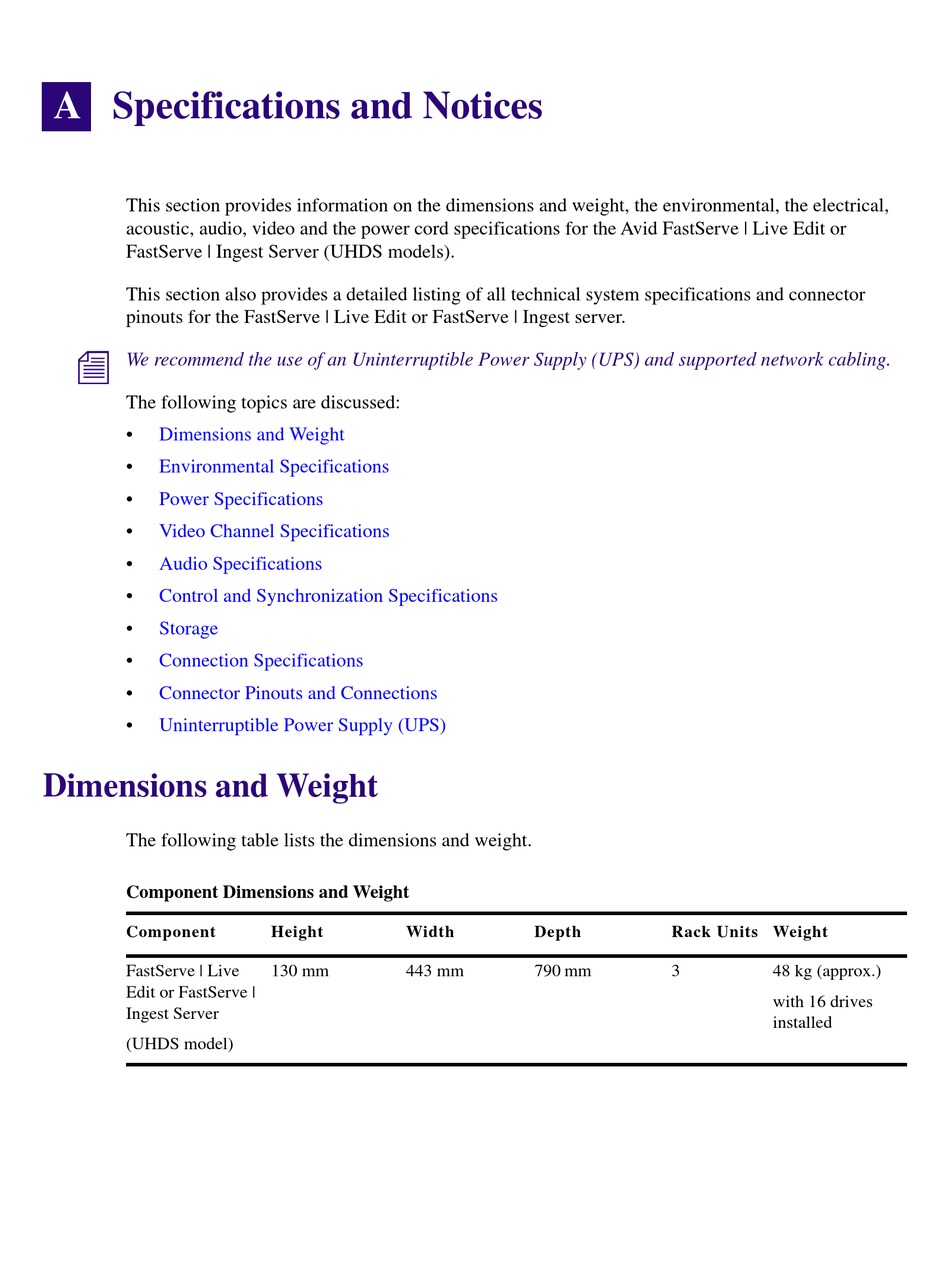

A Specifications and Notices
This section provides information on the dimensions and weight, the environmental, the electrical,
acoustic, audio, video and the power cord specifications for the Avid FastServe | Live Edit or
FastServe | Ingest Server (UHDS models).
This section also provides a detailed listing of all technical system specifications and connector
pinouts for the FastServe | Live Edit or FastServe | Ingest server.
n
We recommend the use of an Uninterruptible Power Supply (UPS) and supported network cabling.
The following topics are discussed:
•

Dimensions and Weight

• Environmental Specifications
• Power Specifications
• Video Channel Specifications
• Audio Specifications
• Control and Synchronization Specifications
• Storage
• Connection Specifications
• Connector Pinouts and Connections
• Uninterruptible Power Supply (UPS)
Dimensions and Weight
The following table lists the dimensions and weight.
Component Dimensions and Weight
Component
FastServe | Live
Edit or FastServe |
Ingest Server
(UHDS model)
Height Width
130 mm 443 mm
Depth Rack Units Weight
790 mm 3 48 kg (approx.)
with 16 drives
installed
